LIGHTSPAN+ PRO T8 BATTEN 5FT POWER & CCT ADJUSTABLE - 30/35/42/52W 3000/4000/6500K 4050-7540LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTC170

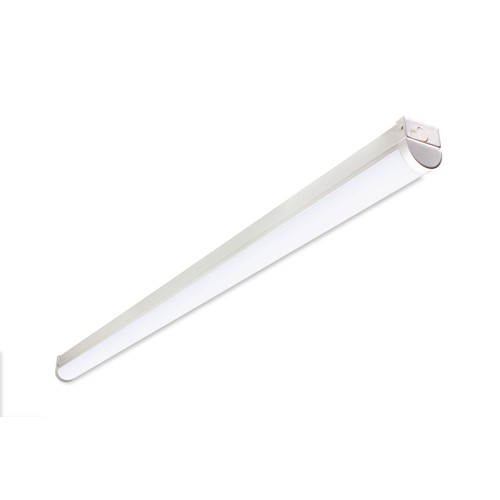

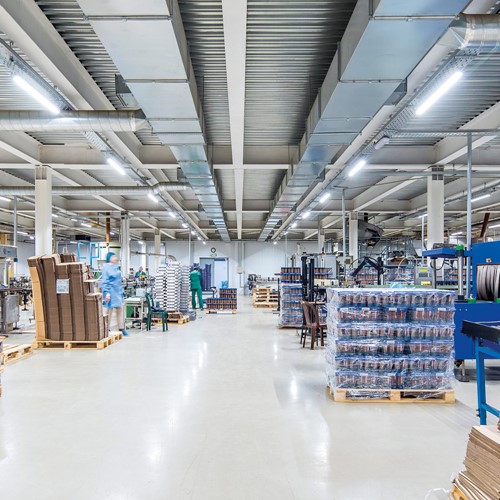

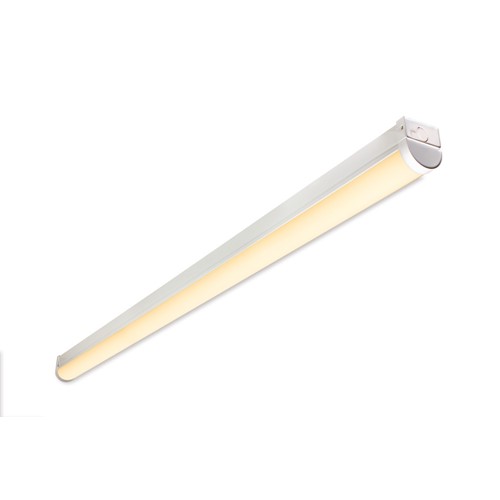

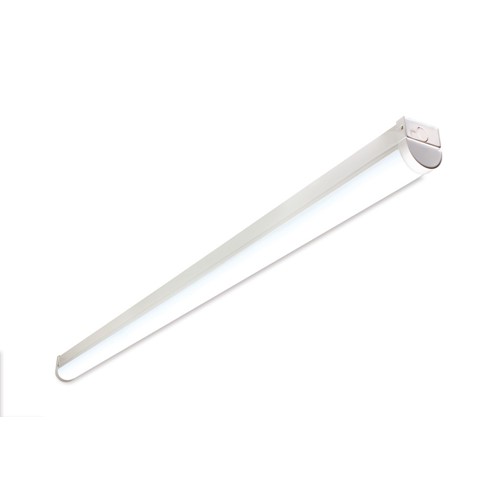

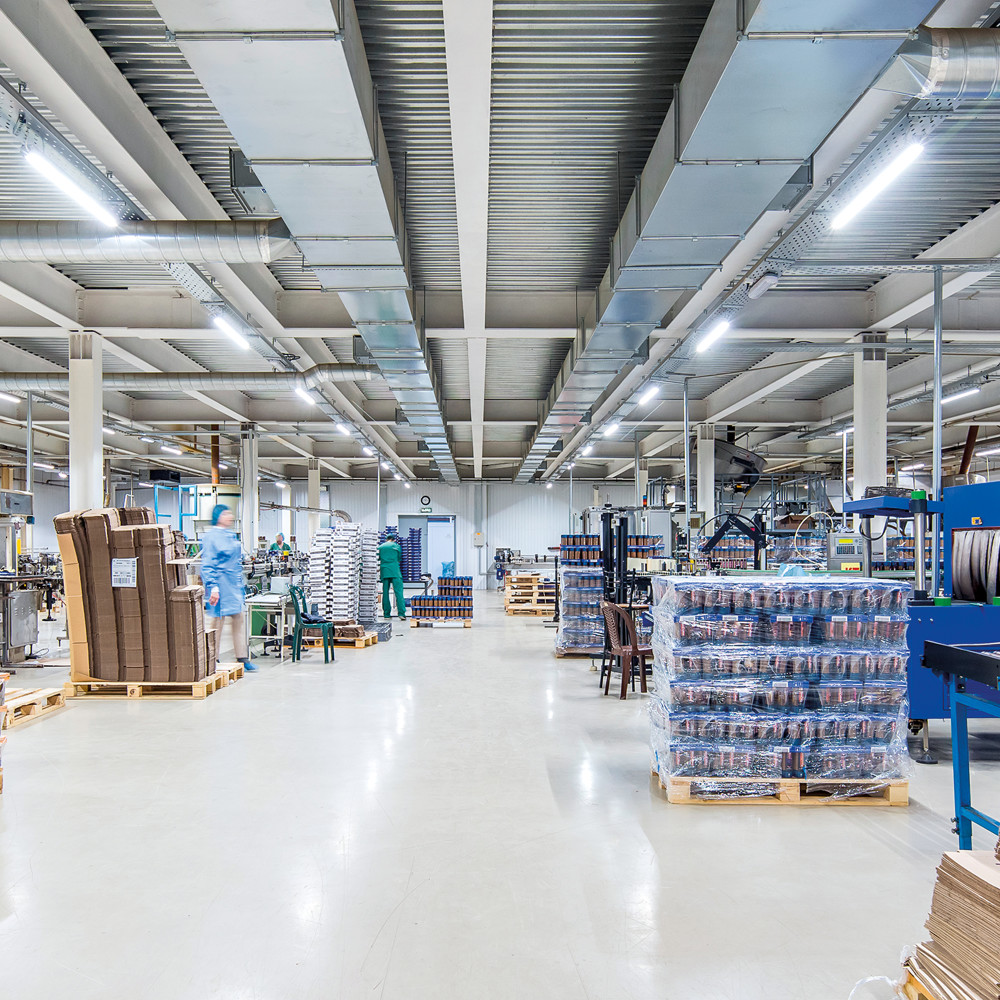

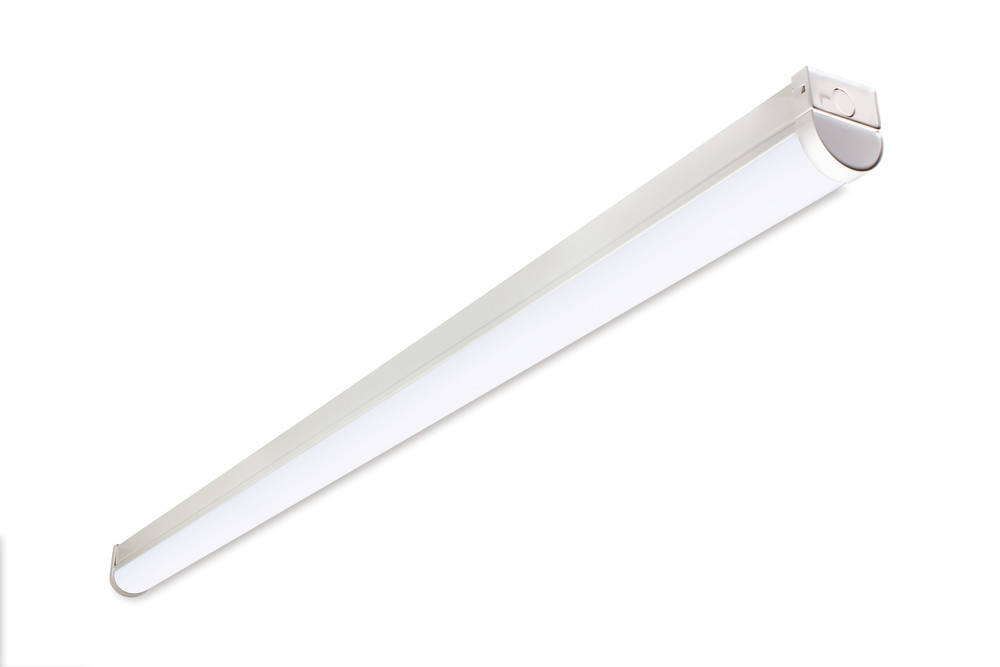

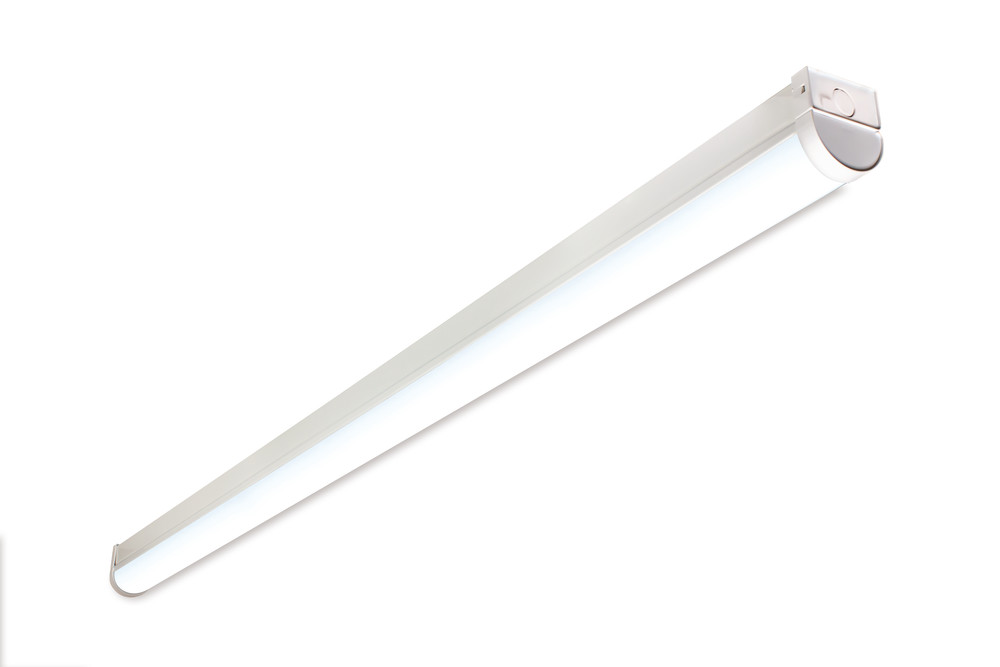

The Integral LED Lightspan+ Pro T8 batten is a modern LED replacement for traditional T5 & T8 fluorescent battens, offering superior performance, adjustability and longevity. Featuring adjustable power settings and three colour temperatures (3000K/4000K/6500K), it delivers an impressive 145lm/W efficiency. Built for durability and reliability, this non-dimmable fixture is perfect for offices, warehouses, and retail environments, providing energy-efficient and customisable lighting in a sleek, professional package.
- Product Feature 1:
- 30W: 4050/4500/4050 35W: 4550/5080/4550 42W: 5460/6090/5460 52W: 6760/7540/6760 lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 145lm/W
- Product Feature 4:

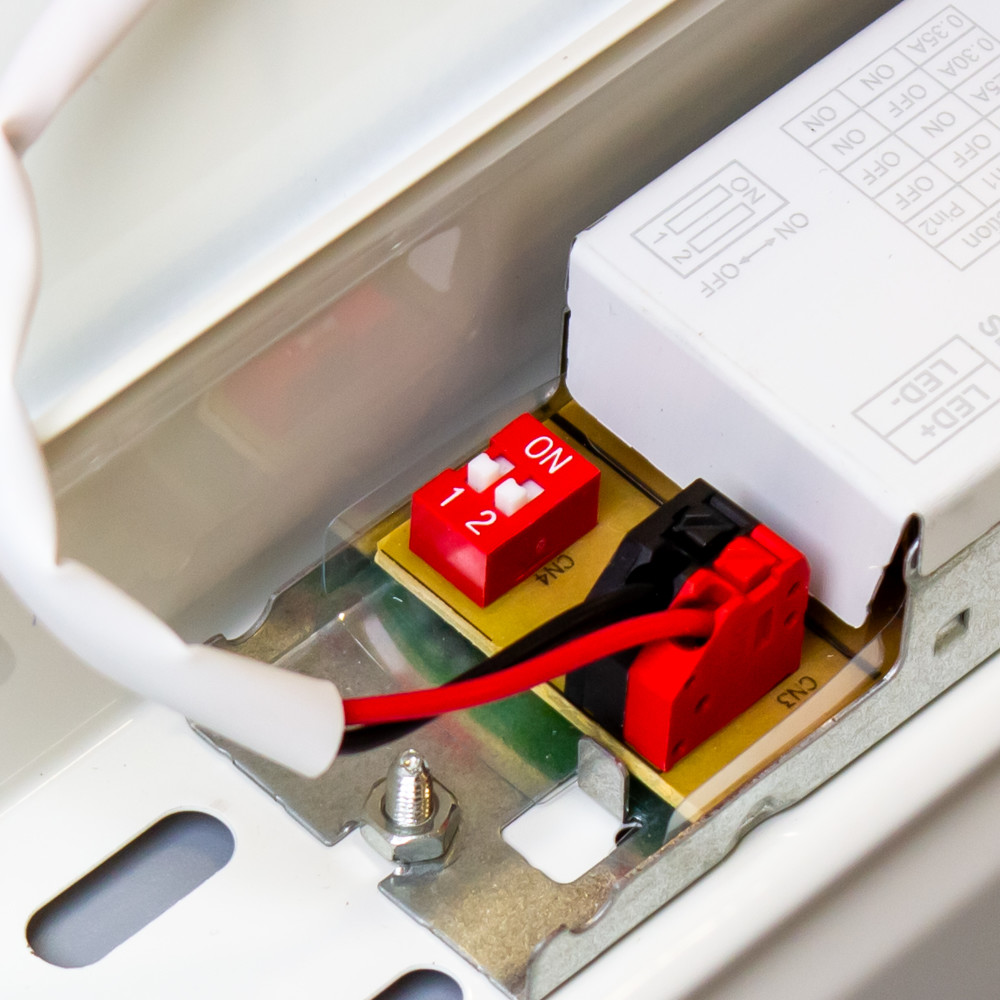

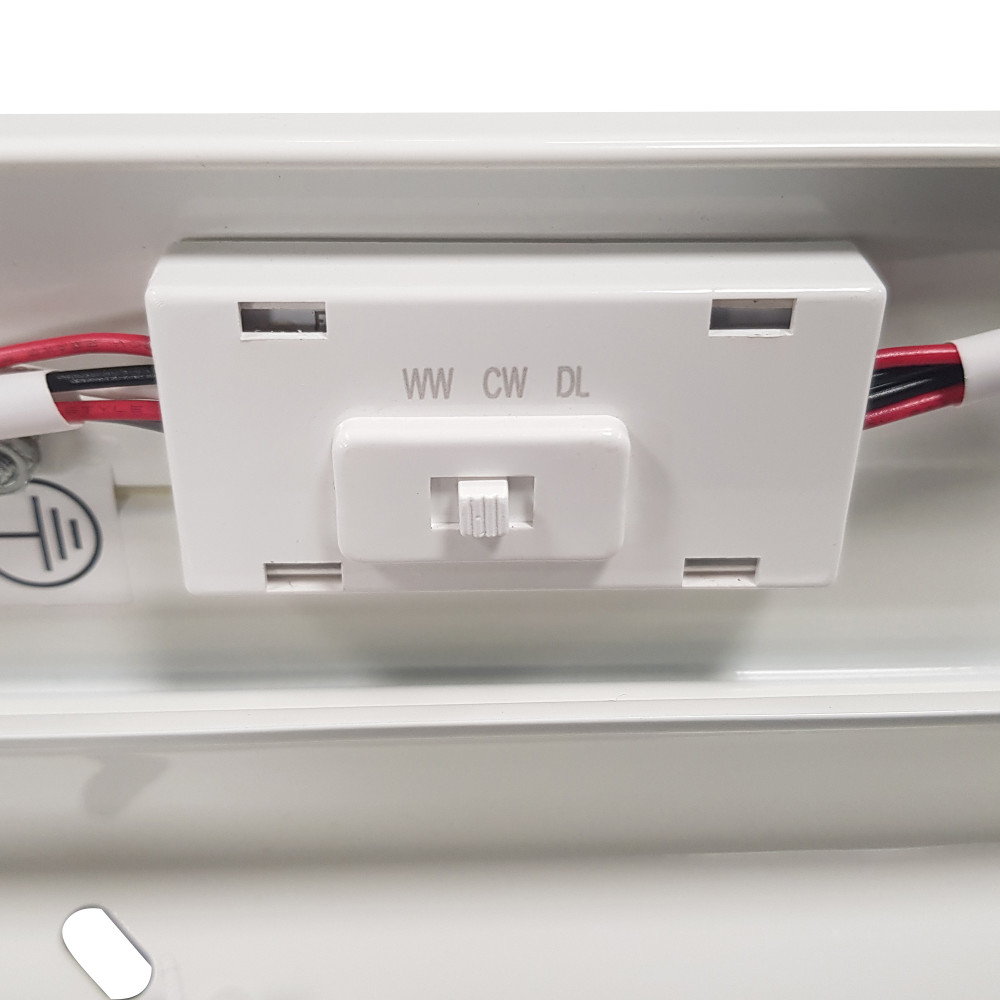

- Power & CCT Switchable
- Product Feature 5:
- IP20
- Product Feature 6:
- IK08
- Availability:
-
100+
More stock due in on 27/04/2025
Suggested products
Details
| Quick Order Code | 890500 |
|---|---|
| Barcode | 5055788291992 |
| Category | Luminaires |
| Range Name | Lightspan+ PRO |
| Type | Single / Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | With modular accessory |
|---|---|
| Size (in ft) | 5ft |
| Linkable | Yes |
| Product Length (mm) | 1470 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 2100 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 30W: 4050/4500/4050 35W: 4550/5080/4550 42W: 5460/6090/5460 52W: 6760/7540/6760 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6300 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 30/35/42/52 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 2200 |
|---|---|
| Package Length (mm) | 1475 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
