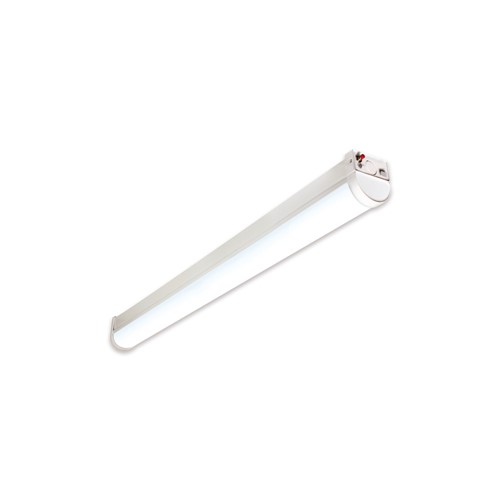

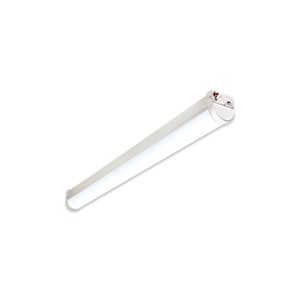

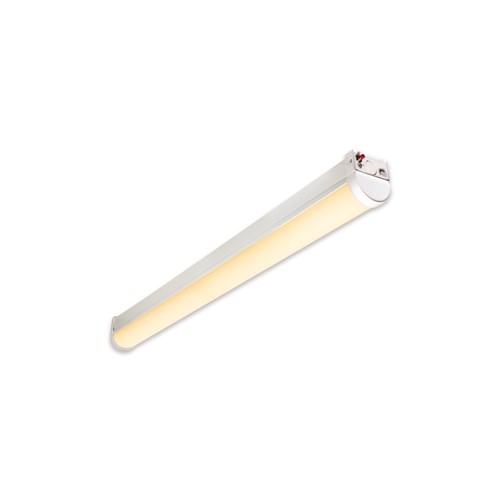

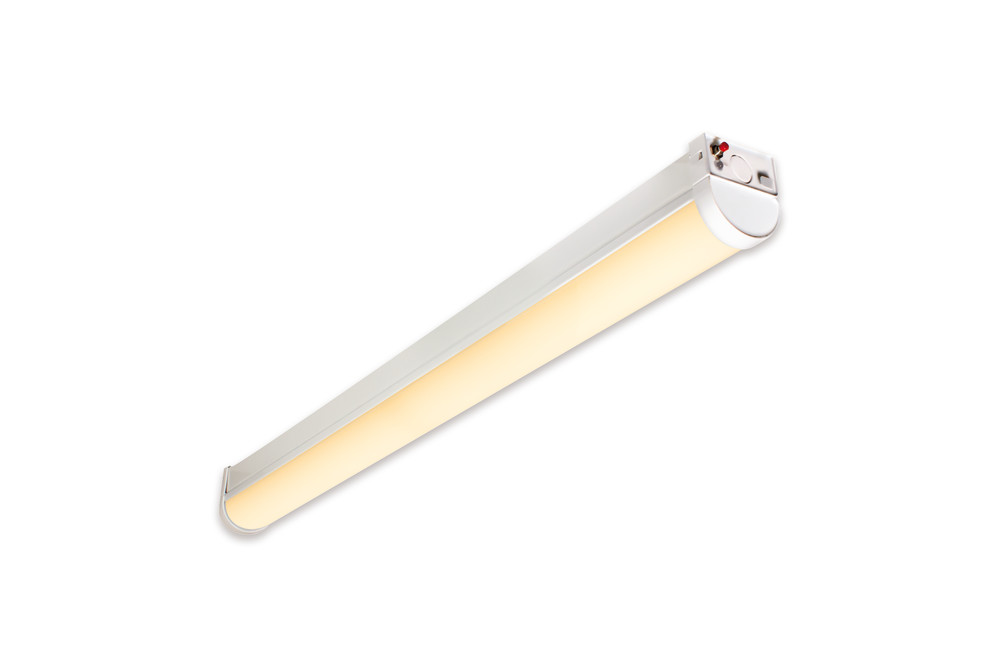

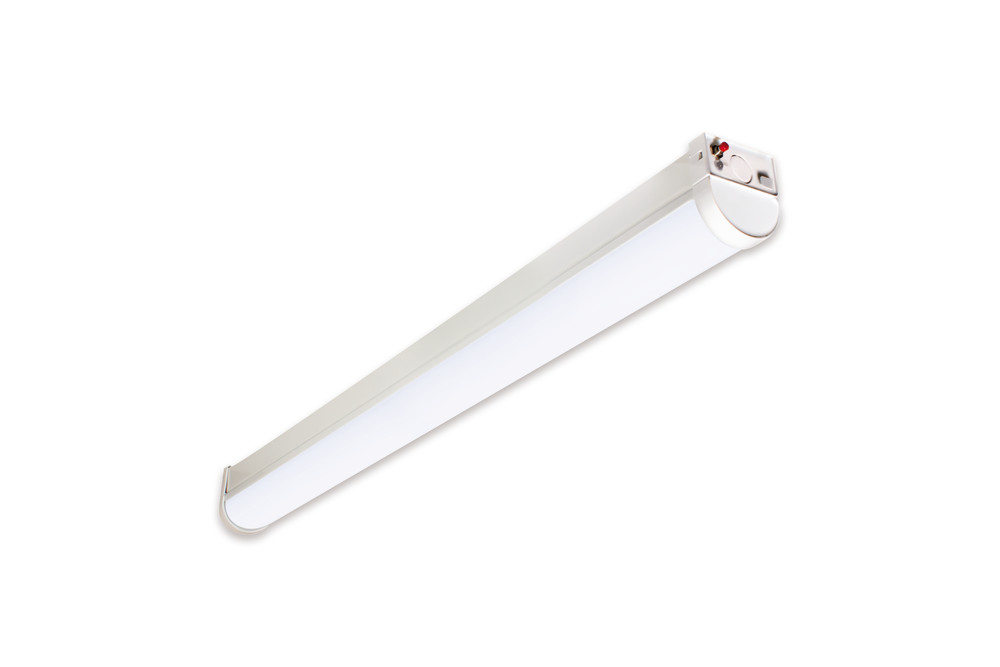

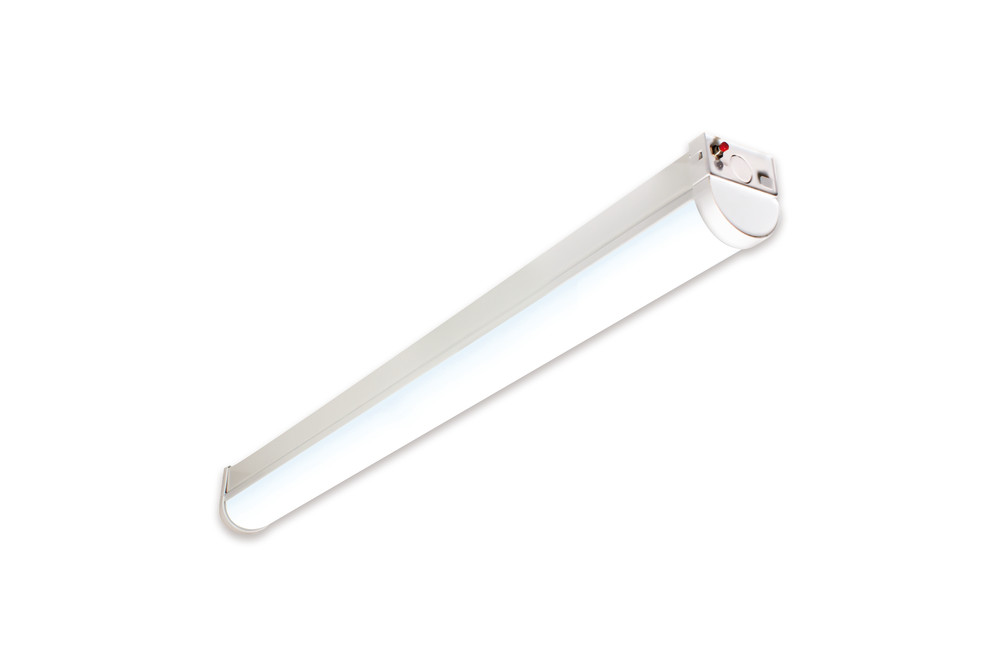

LIGHTSPAN+ T8 BATTEN 4FT EM3HR POWER & CCT ADJUSTABLE - 22/27/34/40W 3000/4000/6300K 2970-5800LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTC121
Integral Lightspan+ battens provide an exceptionally efficient alternative to equivalent fluorescent fixtures. With switchable Power & CCT, they are ideal for indoor commercial, industrial and retail spaces that need different colour temperature and lumen output to suit the activity. With an efficacy of up to 145lm/W, Lightspan+ battens offer huge energy savings compared to equivalent fluorescent lighting.
- Product Feature 1:
- 22W: 2970/3300/2970 27W: 3510/3920/3510 34W: 4420/4930/4420 40W: 5200/5800/5200 lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 145lm/W
- Product Feature 4:
- Power & CCT Switchable
- Product Feature 5:
- 3hr emergency
- Product Feature 6:
- IP20
- Product Feature 7:
- IK08
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | '083462 |
|---|---|
| Barcode | 5055788261049 |
| Category | Luminaires |
| Range Name | Lightspan+ |
| Type | Single / Twin |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Size (in ft) | 4ft |
|---|---|
| Linkable | Yes |
| Product Length (mm) | 1170 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 1900 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTC121_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 22W: 2970/3300/2970 27W: 3510/3920/3510 34W: 4420/4930/4420 40W: 5200/5800/5200 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6300 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 22/27/34/40 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| CE RoHS | Yes |
|---|---|
| New Energy Rating | D |
Packaging
| Package Weight (g) | 2000 |
|---|---|
| Package Length (mm) | 1175 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
Safety Guide
ILBTC121-22W-3000K
