LIGHTSPAN SLIM II 4FT 20W/30W/40W 3000K4000K/6000K 120 BEAM 120LM/W NON-DIMM INTEGRAL PWR SWITCHABLE 50%/75%/ 100%
Part Number:
ILBTF102

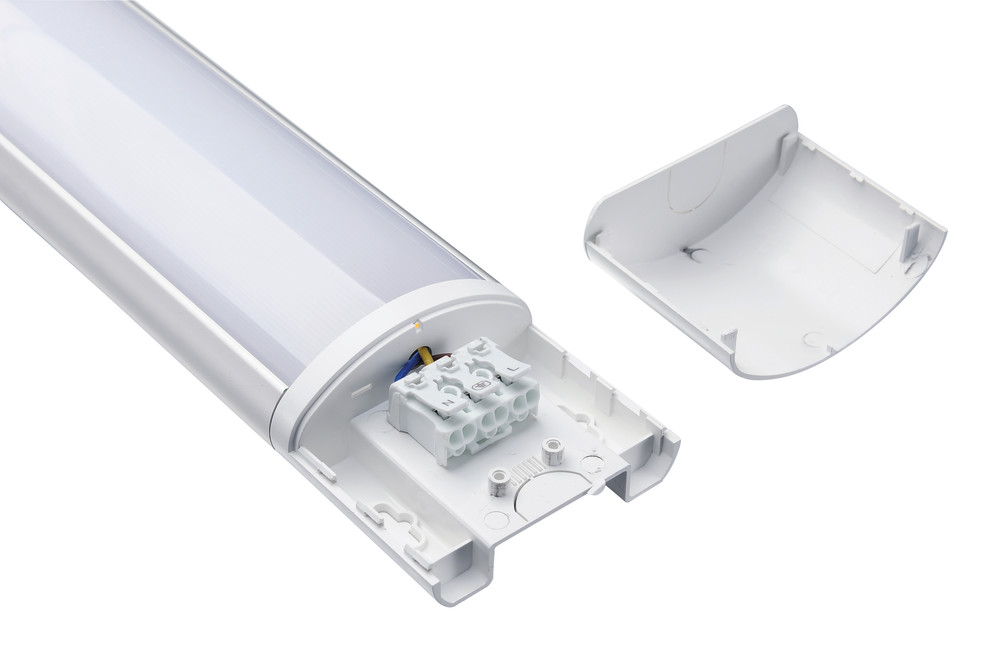

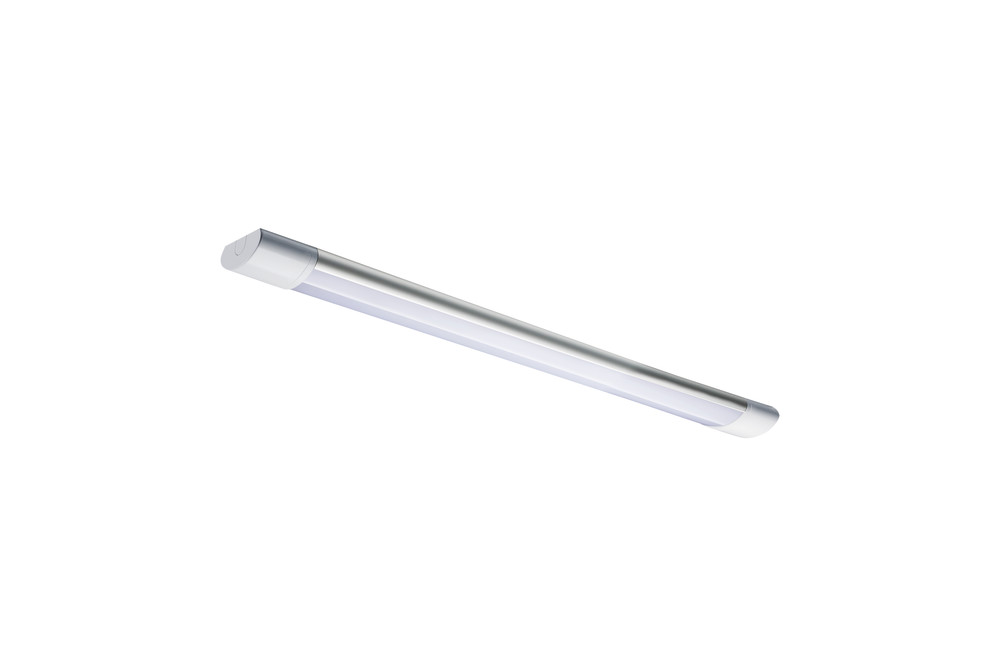

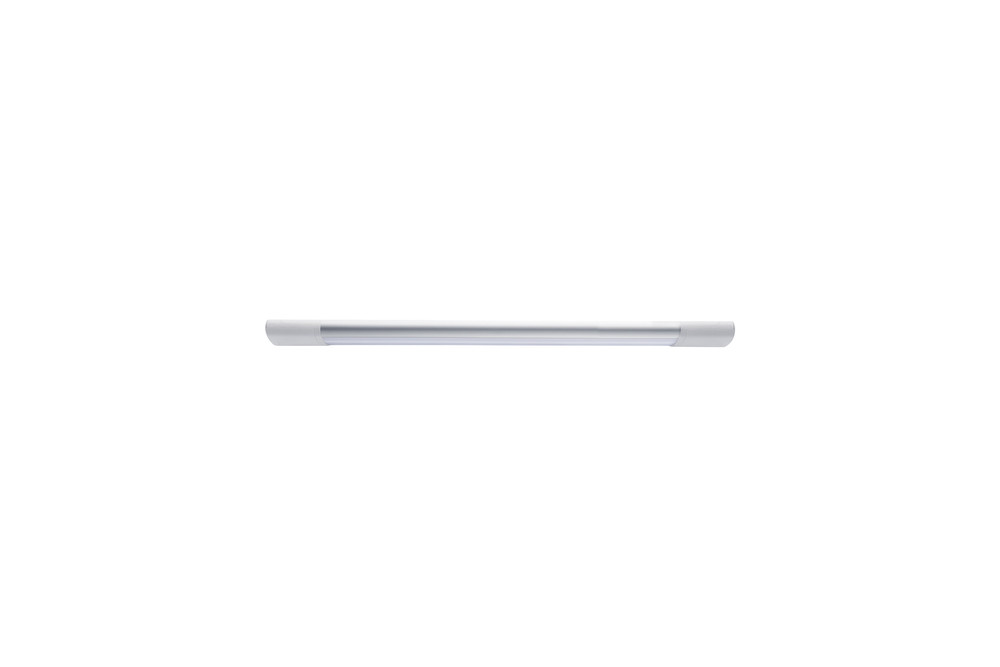

The Lightspan Slim II is a range of low profile compact LED battens with a more decorative and elegant design, suitable for many applications from commercial to industrial. They can be surface or suspended mounted and feature a brushed aluminium housing. CCT, power switching, 3hr emergency and motion sensor options available.
- Product Feature 1:
- 4800lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 120lm/w
- Product Feature 4:
- Slim Low Profile Design
- Product Feature 5:
- Power & CCT Switchable
- Product Feature 6:
- IP40
- Product Feature 7:
- IK10
- Availability:
-
81
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 259389 |
|---|---|
| Barcode | 5055788267539 |
| Category | Luminaires |
| Range Name | Lightspan Slim II |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 4ft |
| Linkable | Yes |
| Product Length (mm) | 1190 |
| Product Depth (mm) | 36 |
| Product Width (mm) | 80 |
| Product Weight (g) | 880 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Aluminium extrusion body, PC injection moulding diffuser and end caps |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTF102_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 4800 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6000 |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 40 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP40 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 2850 |
|---|---|
| Package Length (mm) | 1502 |
| Package Width (mm) | 203 |
| Package Depth (mm) | 90 |
Packaging
