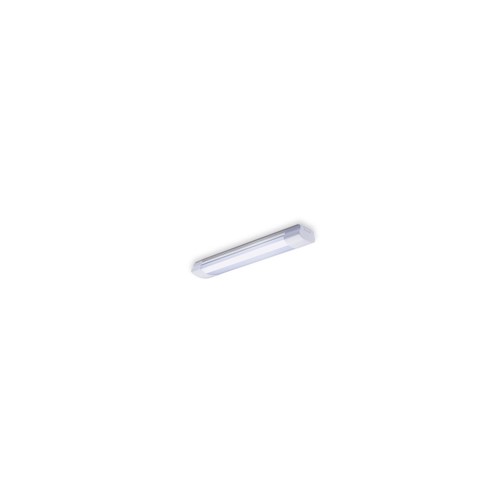

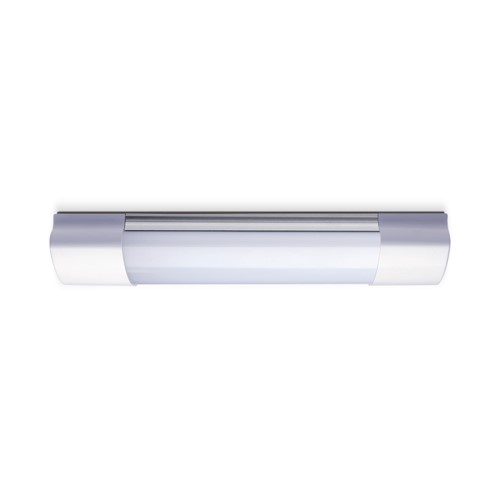

LIGHTSPAN SLIM BATTEN 2400LM 20W 4000K 120 BEAM 120LM/W 600MM 2FT NON-DIMM INTEGRAL

Part Number:

ILBTF071

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

This highly efficient and attractive LED batten features a compact, low-profile body with a stylish brushed aluminium finish that will look great in offices, schools and other commercial or public sector environments. These battens run at a highly efficient 120lm/W so you can drastically reduce your energy costs over legacy technology luminaires.

Product Feature 1:
2400lm
Product Feature 2:
Highly efficient - 120lm/W
Product Feature 3:
Cool White
Product Feature 4:
Linkable
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 390157
Barcode 5055788243007
Category Luminaires
Range Name Lightspan Slim
Type Twin
Product Type Battens
Product Body Finish Brushed aluminium
Market Segment Indoor
Finish Brushed aluminium
Warranty (Years) 3
Emergency Option No
Linkable No
Product Length (mm) 600
Product Depth (mm) 38
Product Width (mm) 72
Product Weight (g) 400
Optic Polycarbonate
Material Aluminium
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling
Mounting Type Rear & Side Cable Entry
Placement / Application Lightspan Slim
Energy Efficiency Label (Image) ILBTF071_EU_label
Luminous Flux in Lumens (lm) 2400
Luminous efficacy (lm/W) 120
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Lifetime (hours) 35000
Switching Cycles 100000
Useful Lumens (lm) 2400
Power Consumption (W) 20
Power Factor 0.9
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Dimming Non-Dimmable
Electric Current AC
LVD Certified Yes
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP20
Package Weight (g) 500
Package Length (mm) 605
Package Width (mm) 77
Package Depth (mm) 42

Product Specification Sheet

Safety Guides

IES Files

LDT Files

Installation Guides
