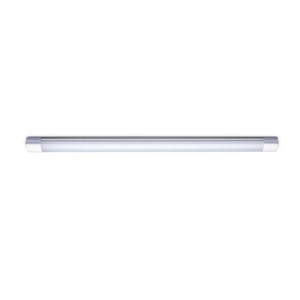

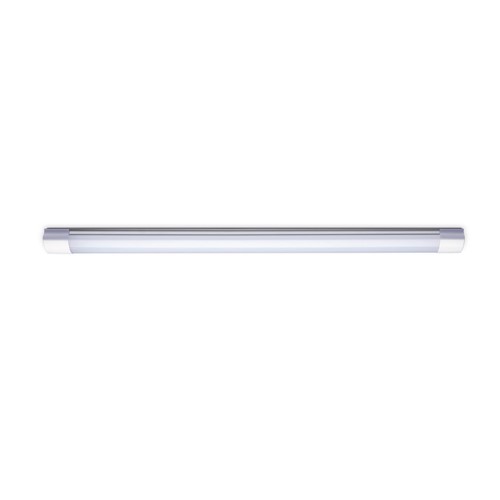

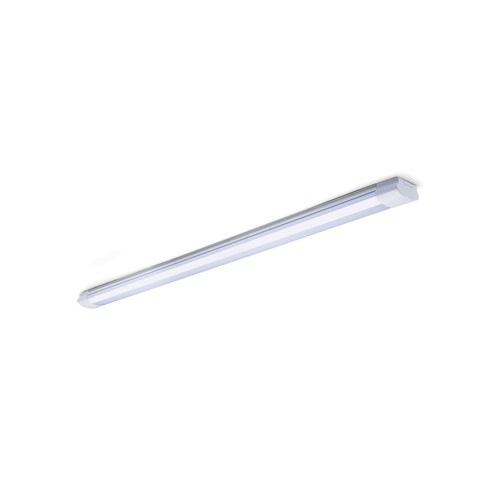

LIGHTSPAN SLIM BATTEN 8640LM 72W 4000K 120 BEAM 120LM/W 1800MM 6FT NON-DIMM INTEGRAL
Part Number:
ILBTF074
This highly efficient and attractive LED batten features a compact, low-profile body with a stylish brushed aluminium finish that will look great in offices, schools and other commercial or public sector environments. These battens run at a highly efficient 120lm/W so you can drastically reduce your energy costs over legacy technology luminaires.
- Product Feature 1:
- 8640lm
- Product Feature 2:
- Highly efficient - 120lm/W
- Product Feature 3:
- Cool White
- Product Feature 4:
- Linkable
- Availability:
-
29
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788243069 |
|---|---|
| Quick Order Code | 235952 |
| Category | Luminaires |
| Range Name | Lightspan Slim |
| Type | Twin |
| Product Type | Battens |
| Product Body Finish | Brushed aluminium |
| Market Segment | Indoor |
| Finish | Brushed aluminium |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 1800 |
| Product Depth (mm) | 38 |
| Product Width (mm) | 72 |
| Product Weight (g) | 1150 |
| Optic | Polycarbonate |
| Material | Aluminium |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Lightspan Slim |
Light Data
| Energy Efficiency Label (Image) | ILBTF074_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 8640 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Lifetime (hours) | 35000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 8640 |
Electrical Data
| Power (W) | 72 |
|---|---|
| Power Consumption (W) | 72 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| EU Luminaire | L |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5055788243069 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1425 |
| Package Length (mm) | 1805 |
| Package Width (mm) | 77 |
| Package Depth (mm) | 42 |
| Inner Carton Barcode | 5055788243069 |
| Qty per Inner Carton | 1 |
| Inner Carton Length (mm) | 1804 |
| Inner Carton Width (mm) | 73 |
| Inner Carton Depth (mm) | 40 |
| Outer Carton Barcode | 5055788243069 |
| Qty per Outer Carton | 12 |
| Outer Carton Length (mm) | 1824 |
| Outer Carton Width (mm) | 250 |
| Outer Carton Depth (mm) | 190 |
