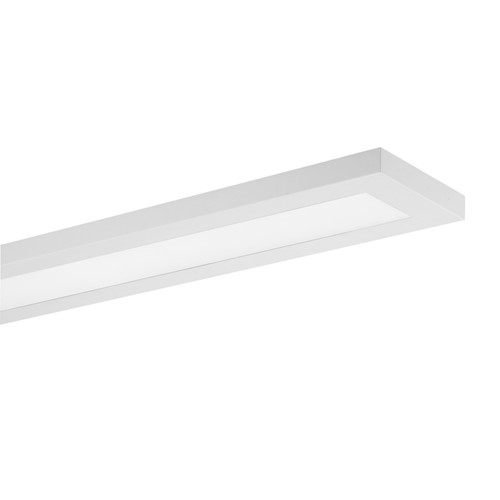

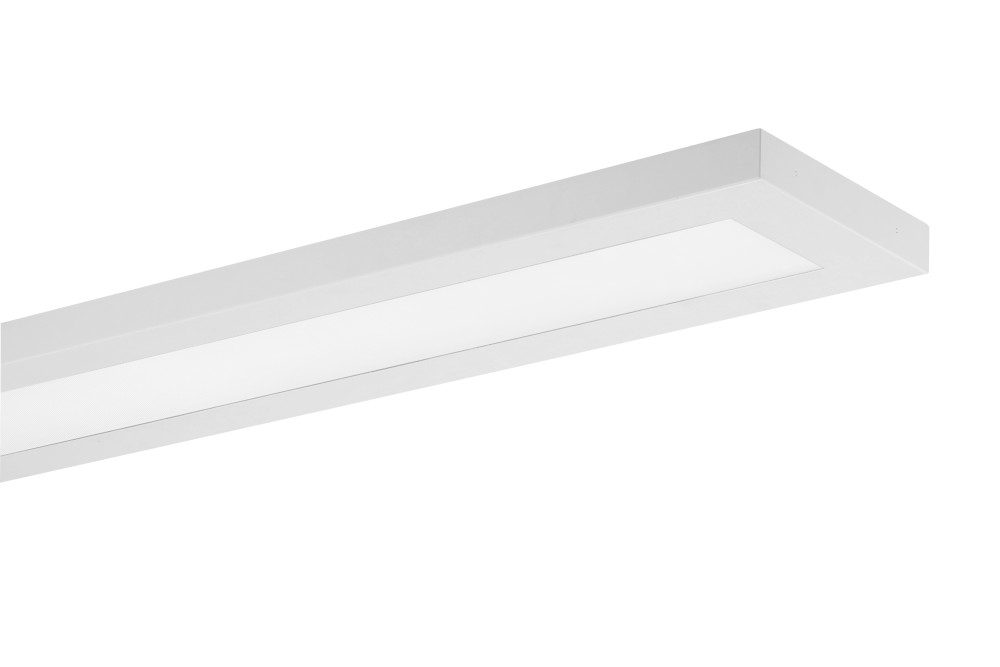

LINEAL SUSPENDED OR SURFACE MOUNTED OFFICE DIRECT 5FT WATTAGE SWITCHABLE 28W/50W CCT SWITCHABLE 3000K/4000K/5000K 90º 110lm/w DALI DIMMABLE WHITE

Part Number:

ILSOA006

Lineal is a new range of highly efficient luminaires that offer a performance solution for surface and suspended linear fittings. This wide range includes options to deliver the optimal lighting performance, dimming option, emergency function, appearance and colour finish.

The flexibility offered means the Lineal Fittings will meet multiple requirements making it ideal for schools, colleges, hospitals, offices, retail areas and general applications.

With a strong, slimline design, linkable option and installation accessories included (surface, BESA and suspension kits), this is a comprehensive range that can enrich your projects.

Product Feature 1:
Power & CCT Switchable
Product Feature 2:
3080-3200lm and 5000-5500lm
Product Feature 3:
110lm/W
Product Feature 4:
DALI, DALI2 PUSH-DIMM and 0-10v dimming
Product Feature 5:
5 Year Warranty
Availability:
81

Call us on 0208 451 8700 to check the next availability

Quick Order Code 960413
Barcode 5055788275237
Category Luminaires
Range Name Lineal
Product Type Battens
Product Body Finish RAL9003
Market Segment Commercial indoor
Finish White
Features Power & CCT Switchable
Warranty (Years) 5
Emergency Option No
Size (in ft) 5ft
Linkable Yes
Product Length (mm) 1574
Product Depth (mm) 37
Product Width (mm) 228
Product Weight (g) 5500
Optic Opal diffuser
Material Steel
Bulb or Luminaire Shape Linear
Luminaire Fixing Surface or Suspended
Mounting Type Rear Cable & Side conduit Entry
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 3080-3200lm and 5000-5500lm
Luminous efficacy (lm/W) 110
Correlated Colour Temperature (CCT) (K) 3000-4000-5000
Colour Temperature 3000/4000/5000 - Warm White/Cool White/Daylight
Colour Temperature Name CCT Switchable
Beam Angle 90
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 30000
Power Consumption (W) 38/50
Power Factor 0.9
Amperage (mA) 1300
Input Voltage (V) 220-240
Dimming DALI, DALI2, PUSH-DIMM and 0-10V
Driver Included Yes
Electric Current AC
EN EN60598
LVD Certified Yes
EN EN60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 5900
Package Length (mm) 1580
Package Width (mm) 232
Package Depth (mm) 40
