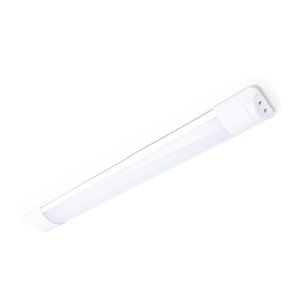

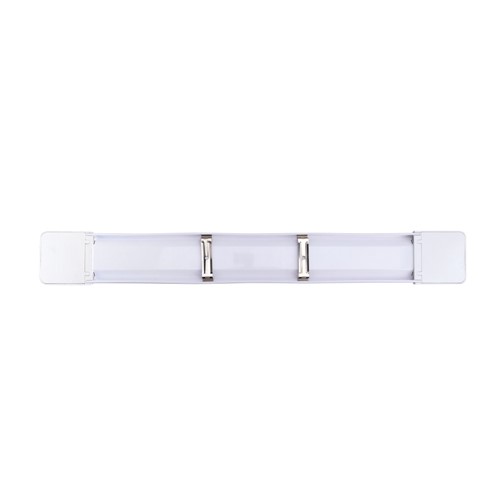

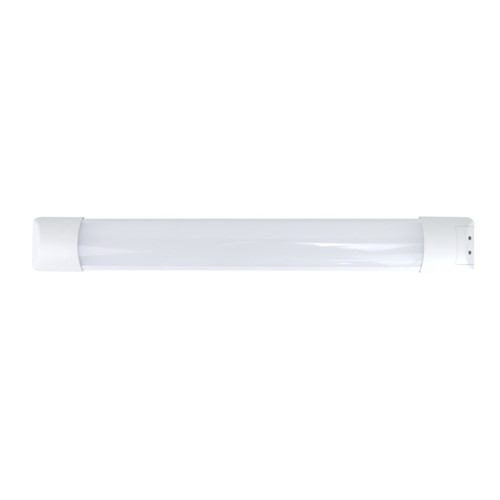

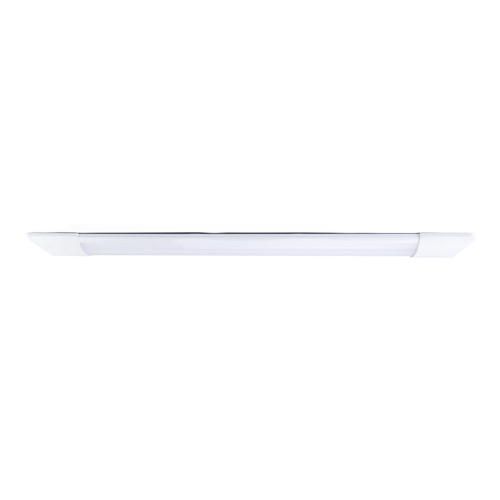

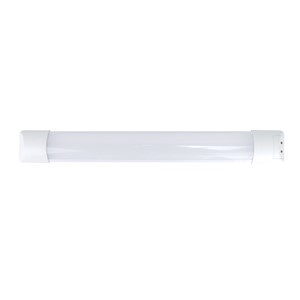

SLIM ECO IP20 BATTEN 3 CCT 2200LM 20W 3000/4000/6500K 120 BEAM 110LM/W 600MM 2FT NON-DIMM INTEGRAL
Part Number:
ILBTE002
The Integral LED Slim Eco Batten offers an affordable, easy to install and compact luminaire ideal for retrofits and installations in commercial, residential and other generalised applications.
With onboard CCT switching functionality offering 3 colour temperature options (3000K, 4000K, 6500K), sizes from 1ft to 6ft and a highly efficient output of 110lm/W, there is a Slim Eco batten to suit your next refurbishment project.
- Product Feature 1:
- 2200lm
- Product Feature 2:

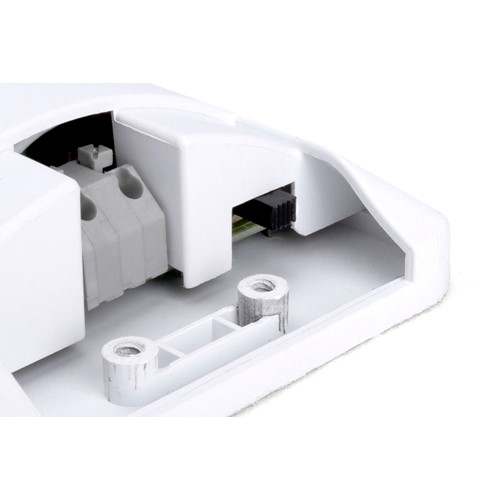

- CCT switchable
- Product Feature 3:
- Easy installation
- Product Feature 4:
- 3 Year warranty
- Availability:
-
50+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 596419 |
|---|---|
| Barcode | 5055788297314 |
| Category | Luminaires |
| Range Name | Slim Eco |
| Type | Single |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Finish | Matt White |
| Features | CCT Swtichable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 2ft |
| Linkable | No |
| Product Length (mm) | 600 |
| Product Depth (mm) | 24.5 |
| Product Width (mm) | 75.5 |
| Product Weight (g) | 145 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | PC extrusion |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Wall/Ceiling mounted |

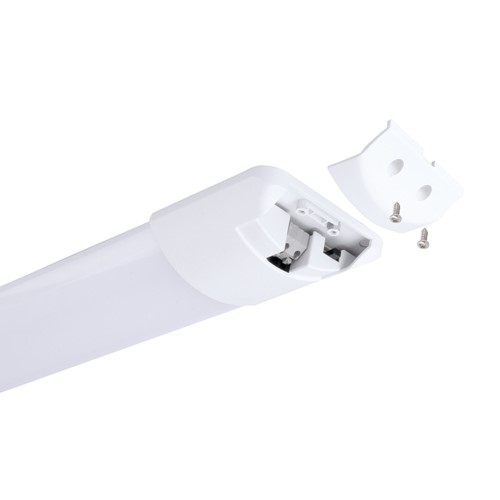

| Mounting Type | Side cable entry |
| Placement / Application | Indoor and outdoor, General lighting |
Light Data
| Luminous Flux in Lumens (lm) | 2200 |
|---|---|
| Luminous efficacy (lm/W) | 110 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6500 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 2200 |
Electrical Data
| Power Consumption (W) | 20 |
|---|---|
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK03 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 365 |
|---|---|
| Package Length (mm) | 640 |
| Package Width (mm) | 78 |
| Package Depth (mm) | 26 |
Safety Guide
ILBTE002-3000K
