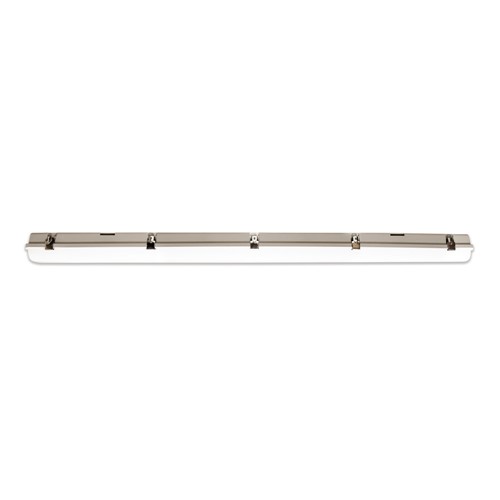

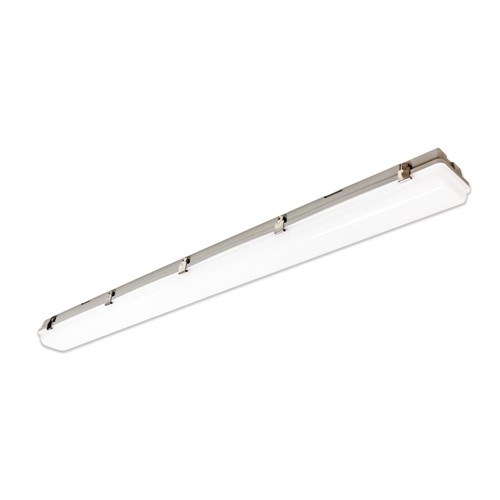

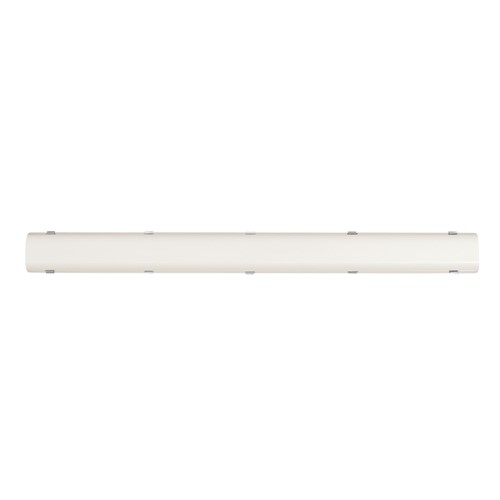

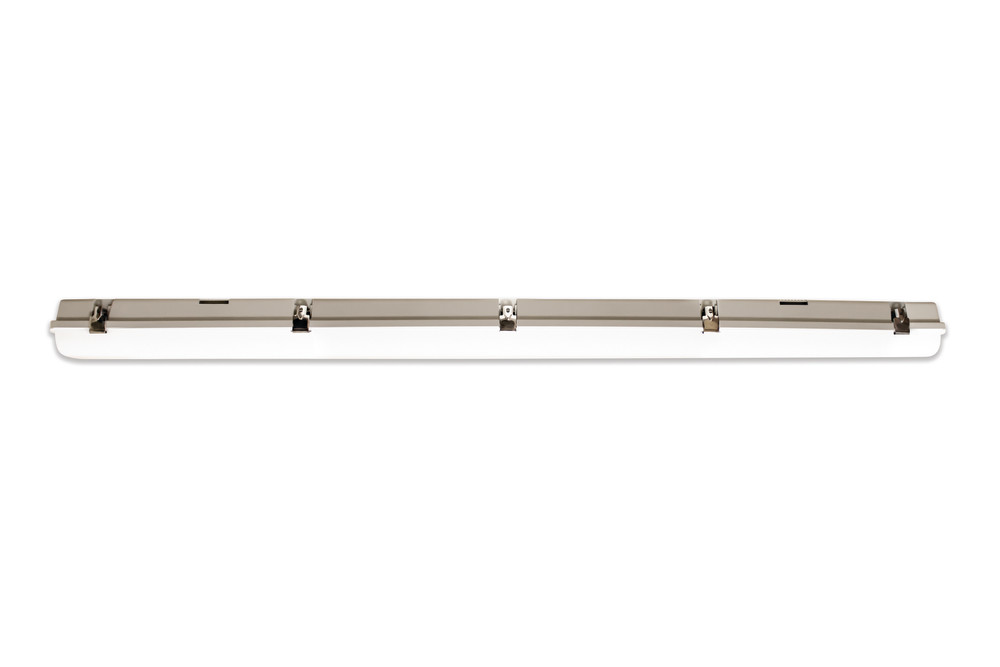

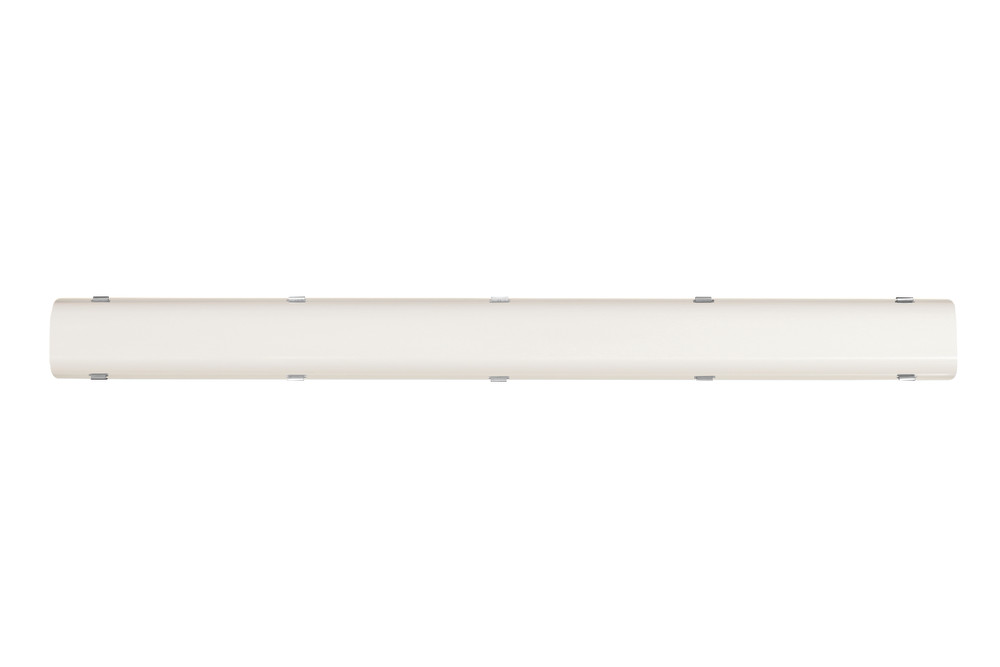

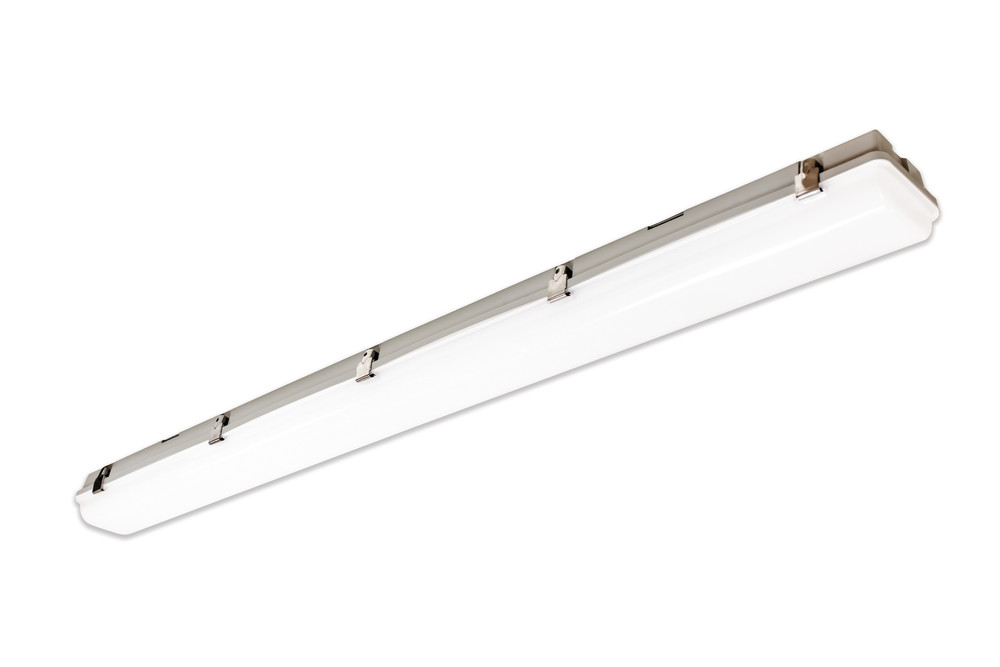

TOUGHSHELL BATTEN EMERGENCY 3HR IP65 2880LM 24W 4000K 120 BEAM 120LM/W 4FT NON-DIMM INTEGRAL
Part Number:
ILBTD103
The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.
This model features an integrated Emergency Function to provide three hours of illumination in the event of a power cut.
- Product Feature 1:
- Integrated Emergency Function
- Product Feature 2:
- IK08 for high impact resistance
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- Long 50000 hour lifetime
- Product Feature 5:
- Highly efficient - 120lm/W
- Product Feature 6:
- 3 year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 211237 |
|---|---|
| Barcode | 5055788251316 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 1250 |
|---|---|
| Product Depth (mm) | 83 |
| Product Width (mm) | 73 |
| Optic | Opal diffuser |
| Material | Polycarbonate |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall/Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTD103_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 2880 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 400 |
Electrical Data
| Power (W) | 24 |
|---|---|
| Power Consumption (W) | 24 |
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
