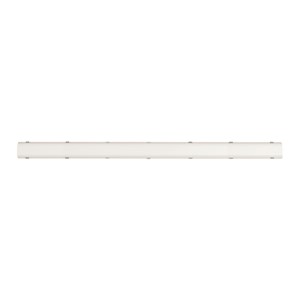

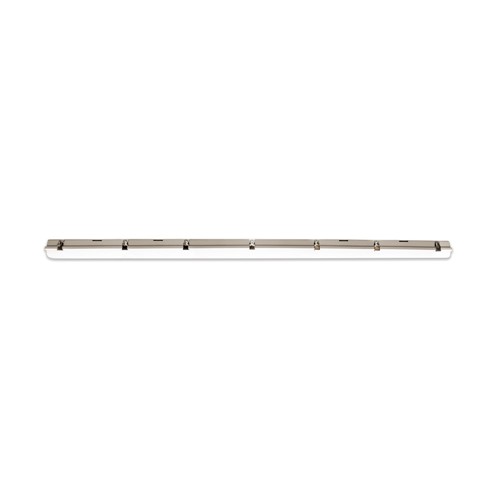

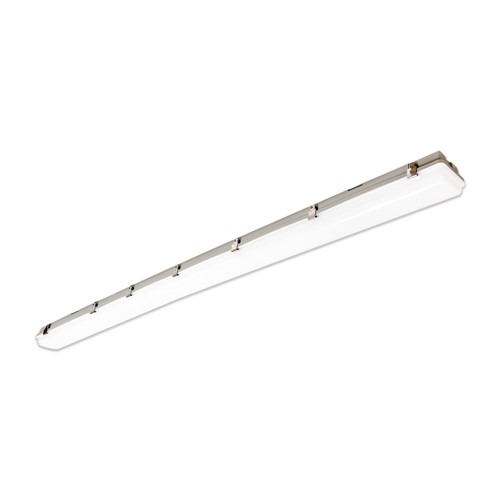

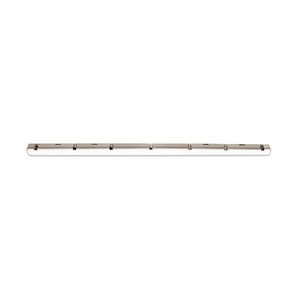

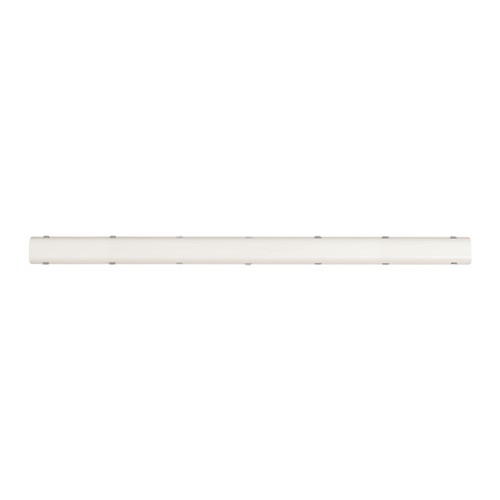

TOUGHSHELL BATTEN SINGLE  STANDARD IP65 38W 4560LM 4000K 120 BEAM ANGLE  120LM/W 6FT NON-DIMM NON-LINKABLE

Part Number:

ILBTD083

The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.

Product Feature 1:
IK08 for high impact resistance
Product Feature 2:
IP65 body protects against dust and moisture ingress
Product Feature 3:
Long 50000 hour lifetime
Product Feature 4:
Highly efficient - 120lm/W
Product Feature 5:
3 Year Warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Barcode 5055788247746
Category Luminaires
Range Name Tough-Shell
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Finish Matt White
Warranty (Years) 3
Product Length (mm) 1850
Product Depth (mm) 83
Product Width (mm) 73
Optic Opal diffuser
Material Polycarbonate
Construction Polycarbonate casing and diffuser
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Wall/Ceiling mounted
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 4560
Luminous efficacy (lm/W) 120
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 50000
Useful Lumens (lm) 400
Power Consumption (w) 38
Power Factor 0.9
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
LVD Certified Yes
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40

Product Specification Sheet

Installation Guides

LDT Files
