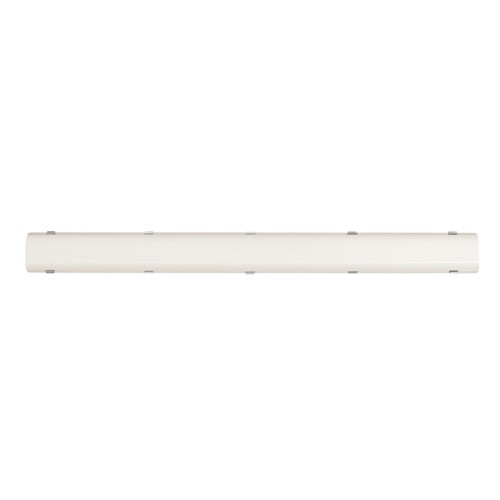

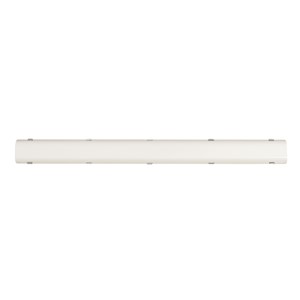

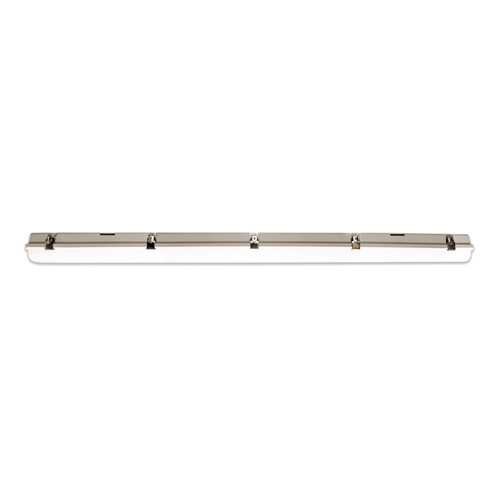

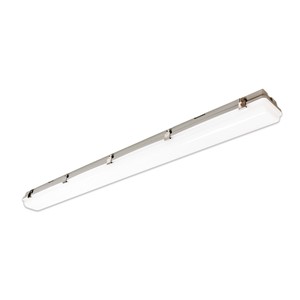

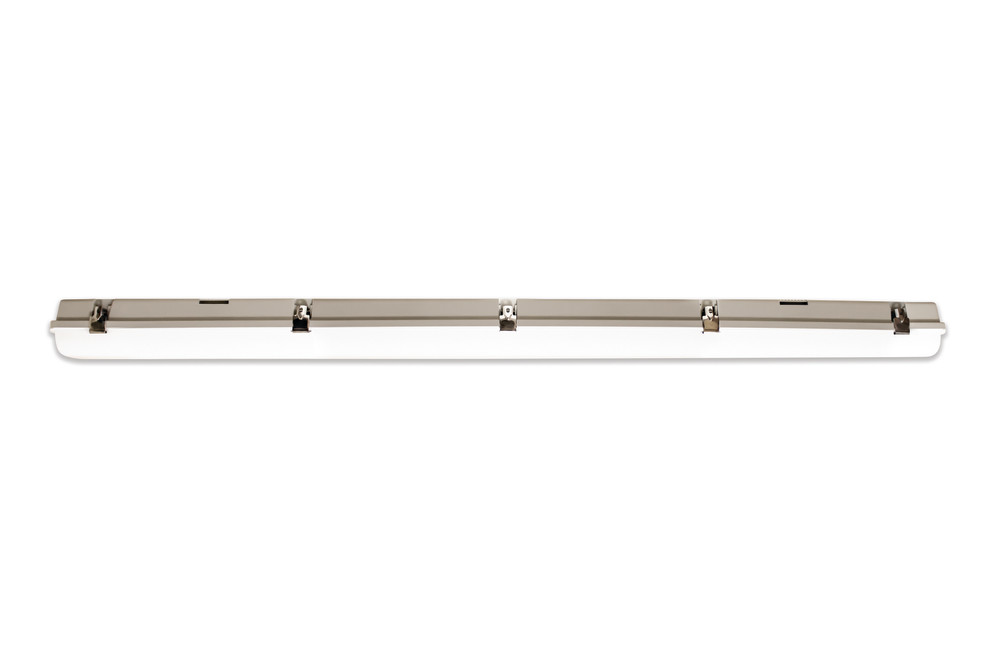

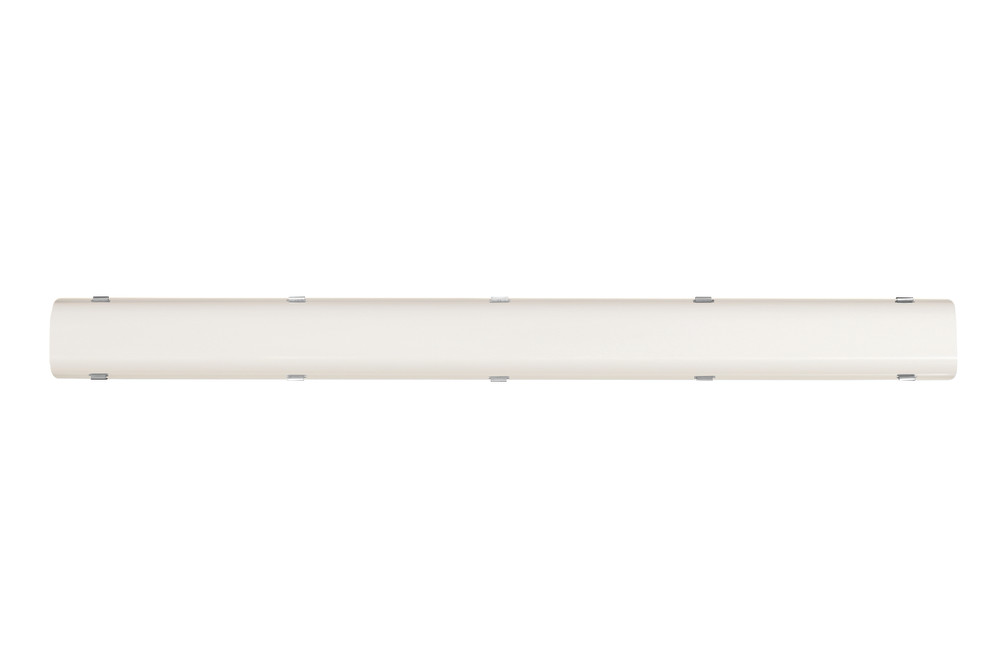

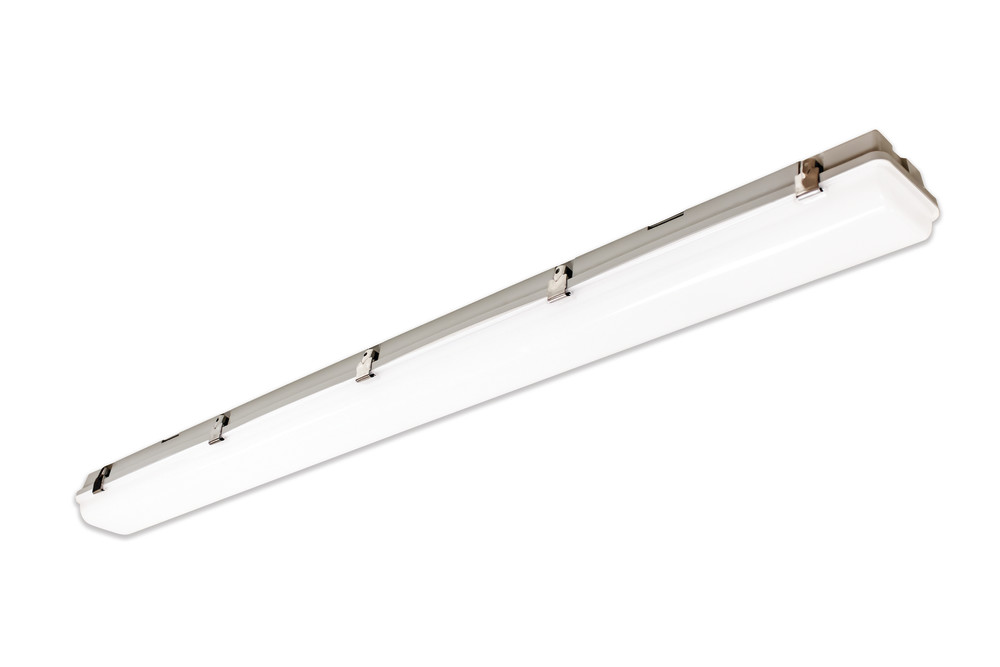

TOUGHSHELL BATTEN TWIN MICROWAVE SENSOR IP65 45W 5400LM 4000K 120 BEAM ANGLE 120LM/W NON- DIMM NON-LINKABLE
Part Number:
ILBTD044
The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.
This model features an integrated Microwave Sensor to provide light only when needed, further increasing efficiency.
- Product Feature 1:
- Integrated Motion Sensor
- Product Feature 2:
- IK08 for high impact resistance
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- Long 30000 hour lifetime
- Product Feature 5:
- Highly efficient - 120lm/W
- Product Feature 6:
- 3 year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 757078 |
|---|---|
| Barcode | 5055788239888 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Type | Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Finish | Matt White |
| Features | Microwave Sensor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 1250 |
| Product Depth (mm) | 83 |
| Product Width (mm) | 123 |
| Product Weight (g) | 2150 |
| Optic | Polycarbonate diffuser with Stainless Steel Clips |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Wall/Ceiling mounted |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTD044_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 5400 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 5400 |
Electrical Data
| Power (W) | 45 |
|---|---|
| Power Consumption (W) | 45 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 2190 |
|---|---|
| Package Length (mm) | 1251 |
| Package Width (mm) | 123 |
| Package Depth (mm) | 83 |
Safety Guide
ILBTD044
