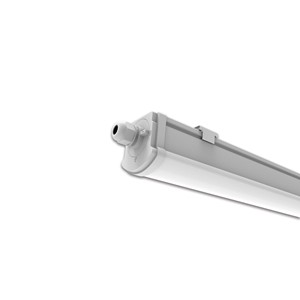

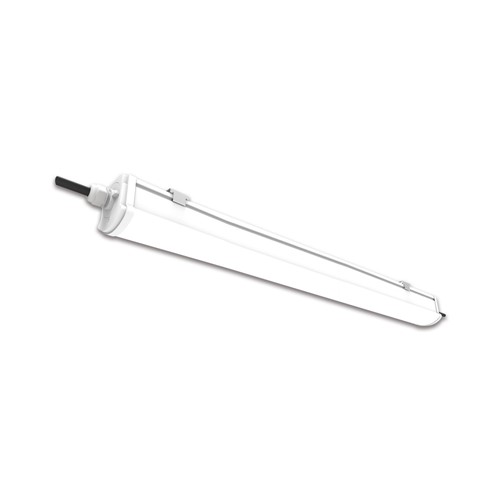

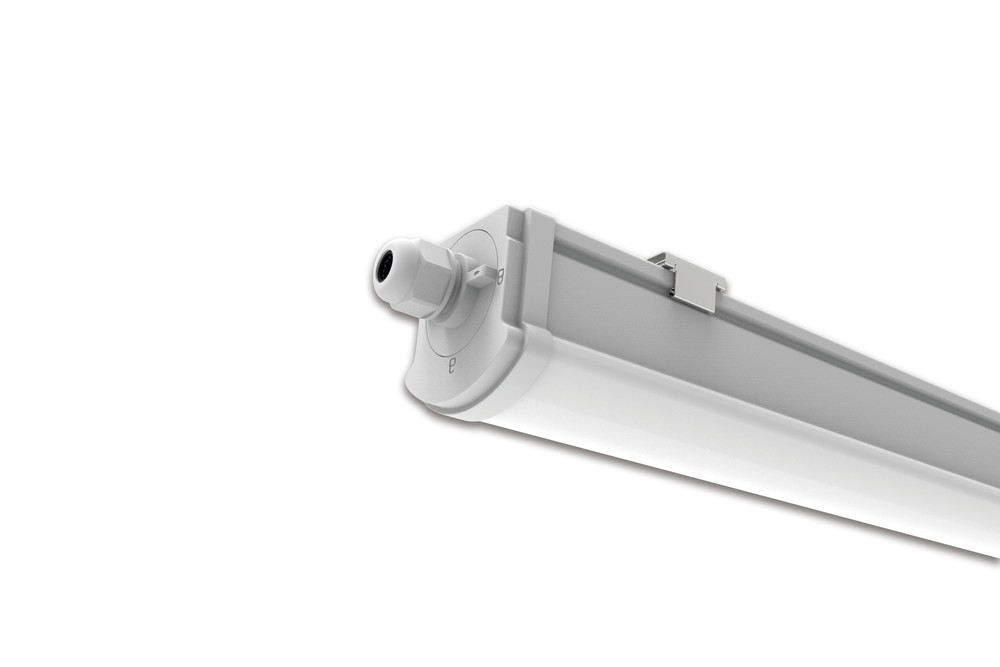

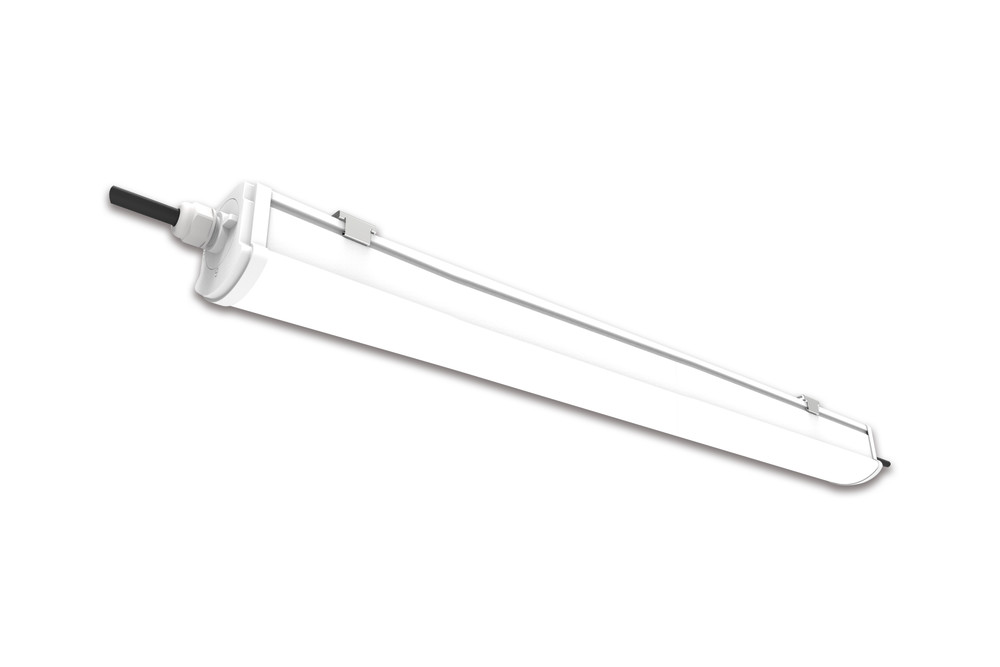

4FT TOUGHSHELL+ EM3HR IP66 IK10 20W 3000LM 4000K 120 BEAM ANGLE 150LM/W NON-DIMM-LINKABLE RAPID CONNECT EASY-FIT
Part Number:
ILBTX004
The Toughshell+ batten features a rugged IK10 and IP66 dust and waterproof polycarbonate construction. The opal diffuser provides even light distribution, ideal for demanding environments such as warehouses, factories, car parks and more.
- Product Feature 1:
- 3000lm
- Product Feature 2:
- 40000hrs
- Product Feature 3:
- 150lm/W
- Product Feature 4:

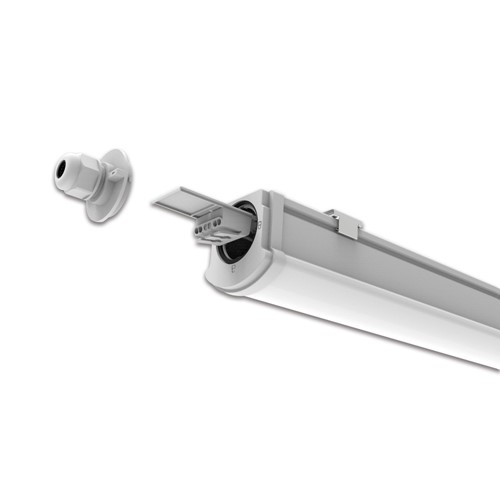

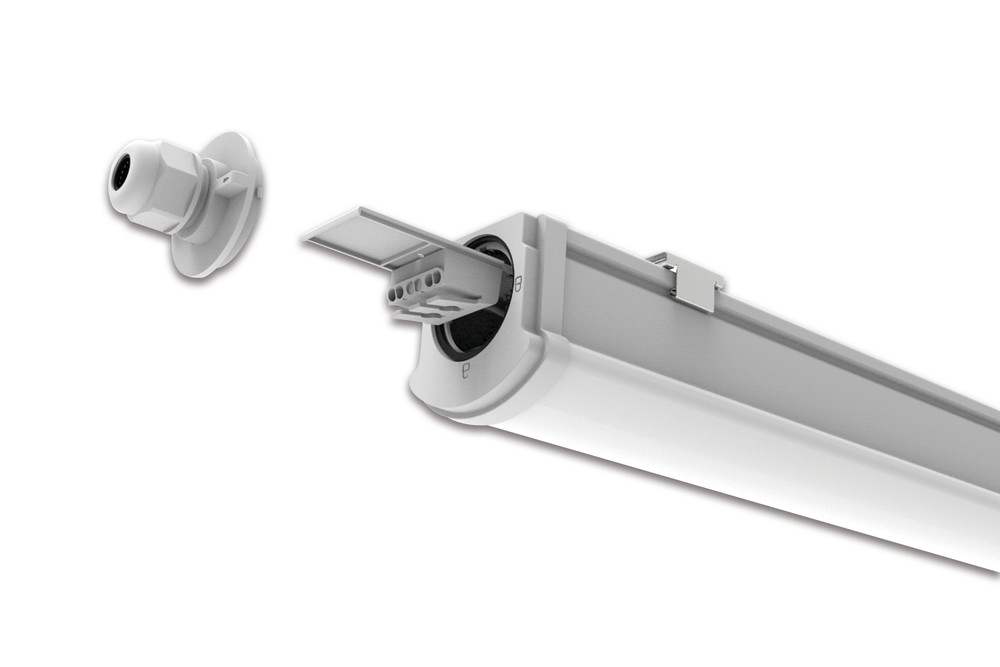

- Rapid connect
- Product Feature 5:
- 3hr emergency
- Product Feature 6:
- IP66
- Product Feature 7:
- IK10
- Availability:
-
75
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 362359 |
|---|---|
| Barcode | 5055788256908 |
| Category | Luminaires |
| Range Name | Tough-Shell+ |
| Type | Single |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
| Features | Emergency Function |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Size (in ft) | 4ft |
| Linkable | Yes |
| Product Length (mm) | 1258 |
| Product Depth (mm) | 66.5 |
| Product Width (mm) | 70.5 |
| Product Weight (g) | 1100 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor and outdoor, General lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTX004_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3000 |
| Lumens per meter (lm/m) | 150 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 40000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 20 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 1080 |
|---|---|
| Package Length (mm) | 1268 |
| Package Width (mm) | 78 |
| Package Depth (mm) | 74 |
Safety Guide
ILBTX004
