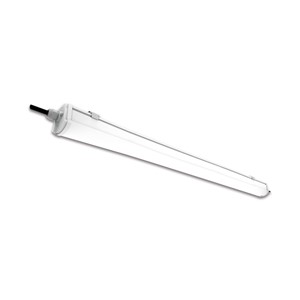

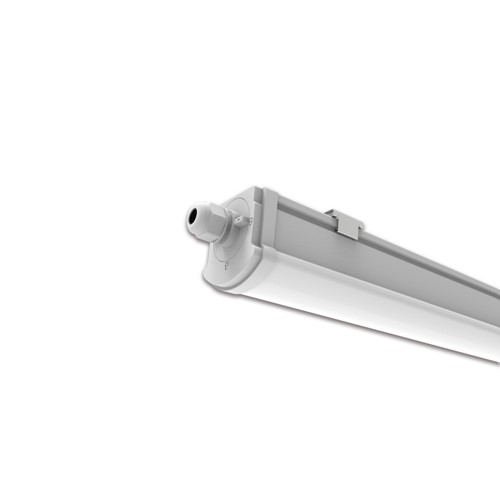

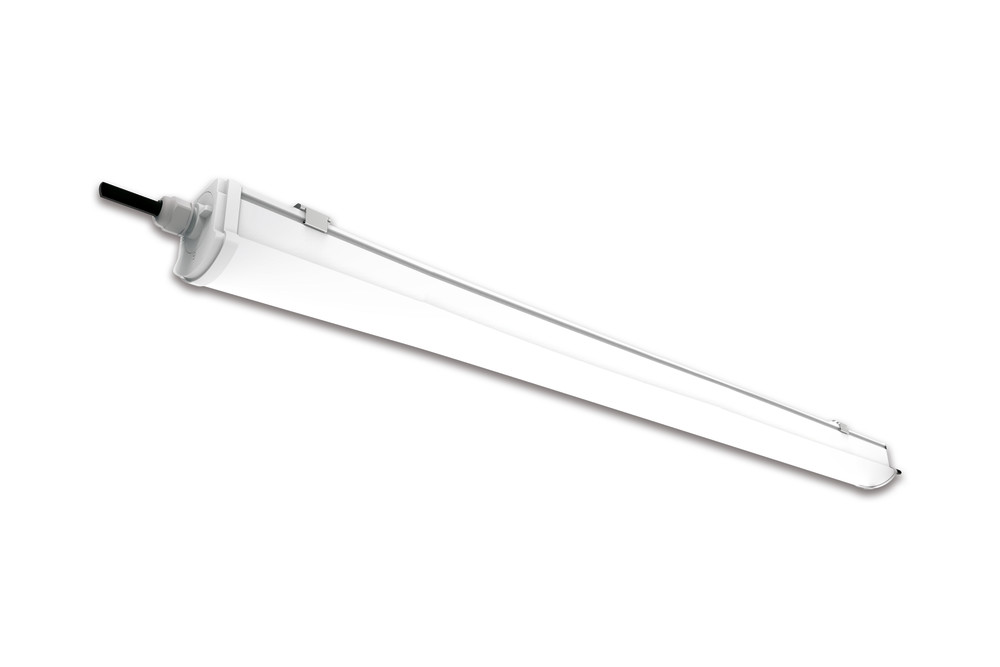

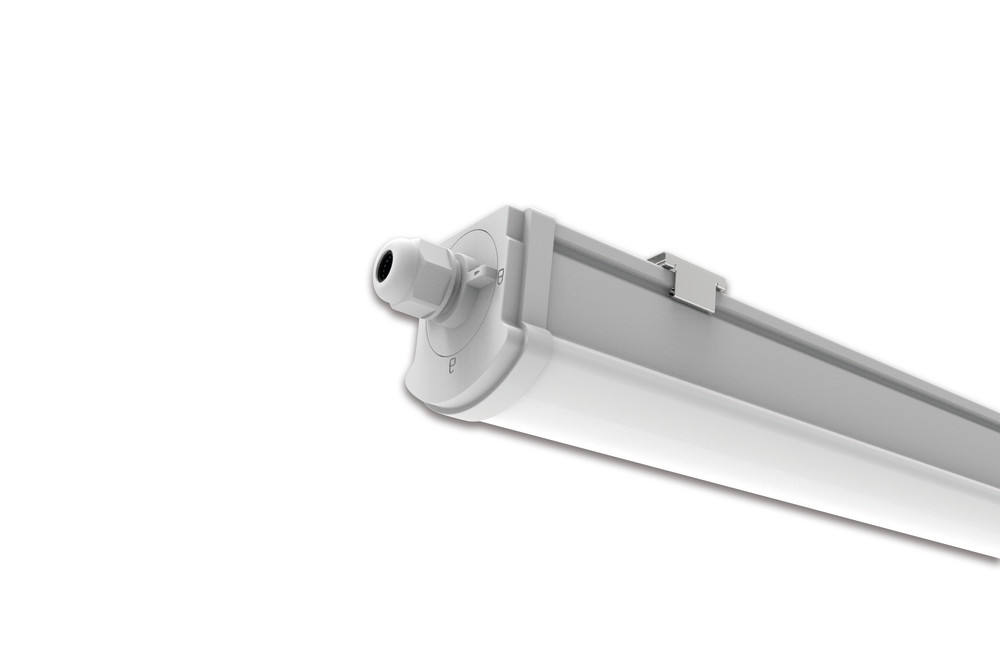

5FT TOUGHSHELL+ EM3HR IP66 IK10 30W 4500LM 4000K 120 BEAM ANGLE 150LM/W NON-DIMM-LINKABLE RAPID CONNECT EASY-FIT

Part Number:

ILBTX005

The Toughshell+ batten features a rugged IK10 and IP66 dust and waterproof polycarbonate construction. The opal diffuser provides even light distribution, ideal for demanding environments such as warehouses, factories, car parks and more.

Product Feature 1:
4500lm
Product Feature 2:
40000hrs
Product Feature 3:
150lm/W
Product Feature 4:

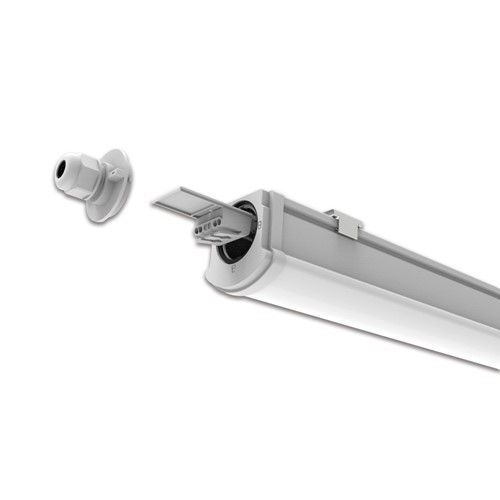

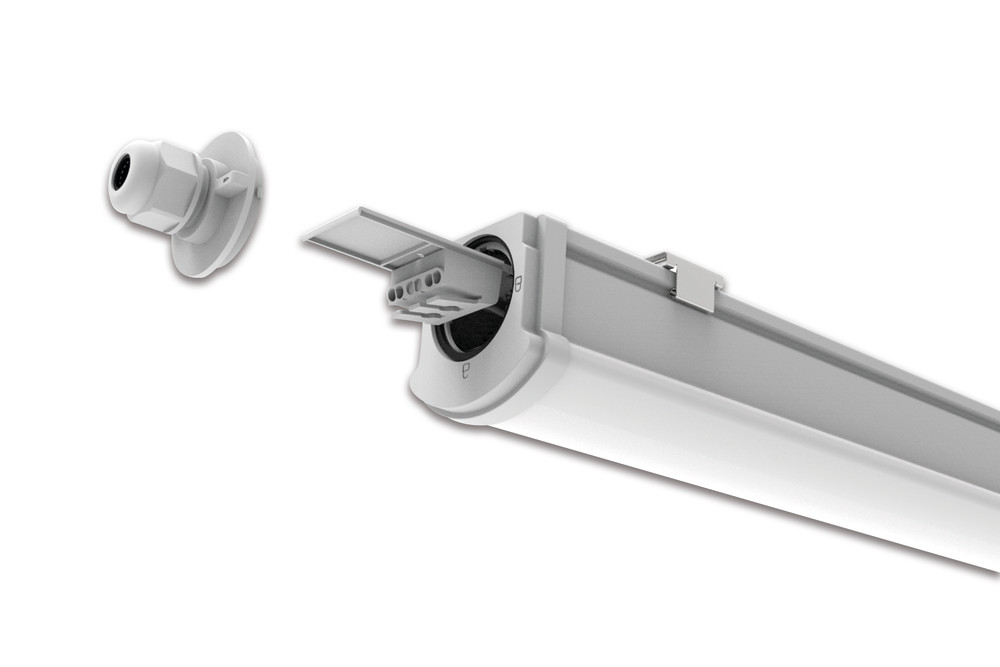

Rapid connect
Product Feature 5:
3hr emergency
Product Feature 6:
IP66
Product Feature 7:
IK10
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 878716
Barcode 5055788256915
Category Luminaires
Range Name Tough-Shell+
Type Single
Product Body Finish Matt white
Market Segment Commercial indoor and outdoor, Industrial indoor and outdoor
Features Emergency Function
Warranty (Years) 5
Emergency Option Integrated
Size (in ft) 5ft
Linkable Yes
Product Length (mm) 1558
Product Depth (mm) 66.5
Product Width (mm) 70.5
Product Weight (g) 1150
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling mounted
Placement / Application Indoor and outdoor, General lighting
Energy Efficiency Label (Image) ILBTX005_EU_label
Luminous Flux in Lumens (lm) 4500
Lumens per meter (lm/m) 150
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 40000
Switching Cycles 25000
Power Consumption (W) 30
Power Factor 0.9
Input Voltage (V) 200-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating D
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP66
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 1250
Package Length (mm) 1568
Package Width (mm) 78
Package Depth (mm) 74
