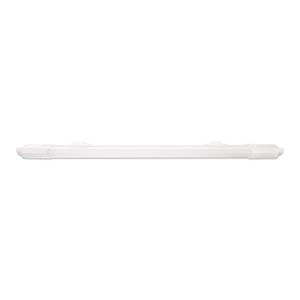

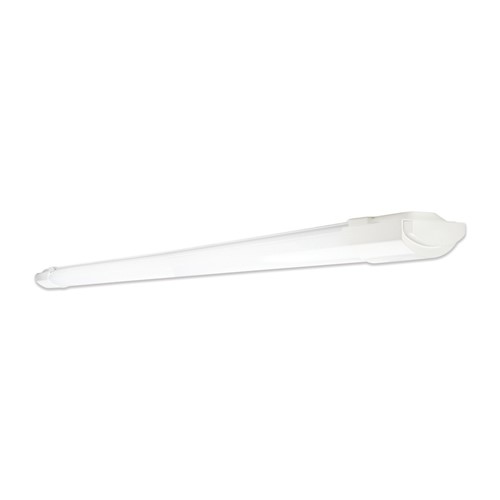

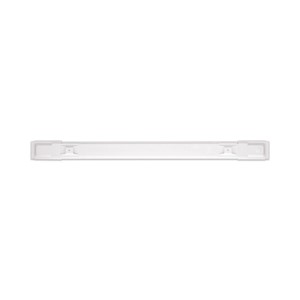

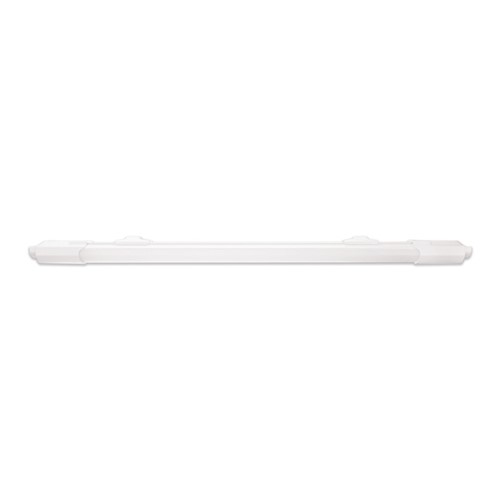

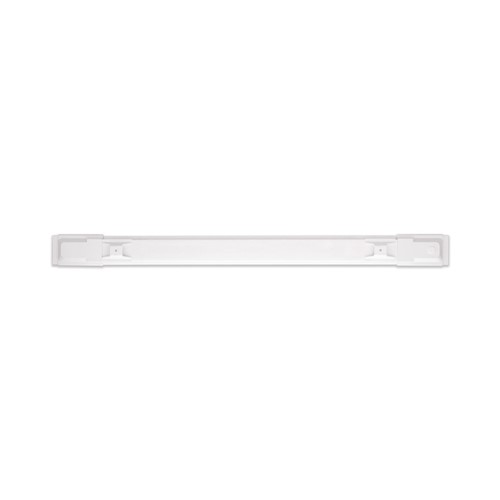

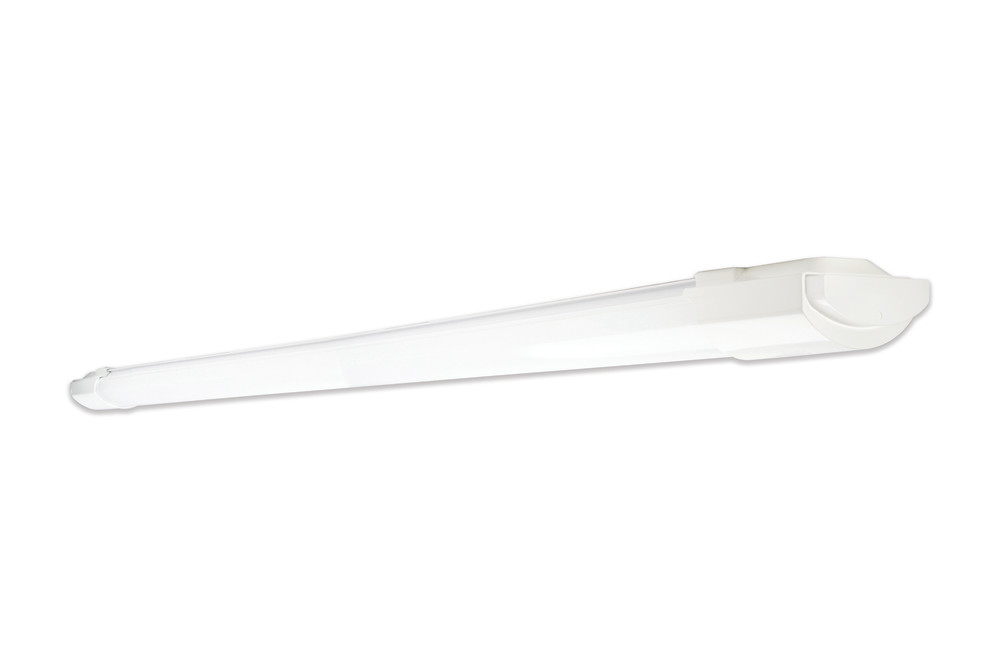

VALUE+ BATTEN 2850LM 25W 3000K 120 BEAM 120LM/W 1200MM 4FT NON-DIMM INTEGRAL
Part Number:
ILBTE060
This attractive and efficient LED battens offers a fantastic balance of price and performance. Running at 120lm/W, this batten will provide major energy and cost savings over legacy fluorescent technology.
Schools, offices and many other workplaces will benefit from the good looks and efficient performance of the Value+ Batten.
- Product Feature 1:
- 2850lm
- Product Feature 2:
- Highly efficient - 108lm/W
- Product Feature 3:
- Warm White
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 513031 |
|---|---|
| Barcode | 5055788242550 |
| Category | Luminaires |
| Range Name | Value+ |
| Type | Single |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Commercial & Industrial |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 4ft |
| Linkable | No |
| Product Length (mm) | 1187 |
| Product Depth (mm) | 37 |
| Product Width (mm) | 54 |
| Product Weight (g) | 280 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Indoor |
Light Data
| Energy Efficiency Label (Image) | ILBTE060_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 2850 |
| Luminous efficacy (lm/W) | 114 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 2850 |
Electrical Data
| Power (W) | 25 |
|---|---|
| Power Consumption (W) | 25 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Package Weight (g) | 380 |
|---|---|
| Package Length (mm) | 1200 |
| Package Width (mm) | 60 |
| Package Depth (mm) | 48 |
