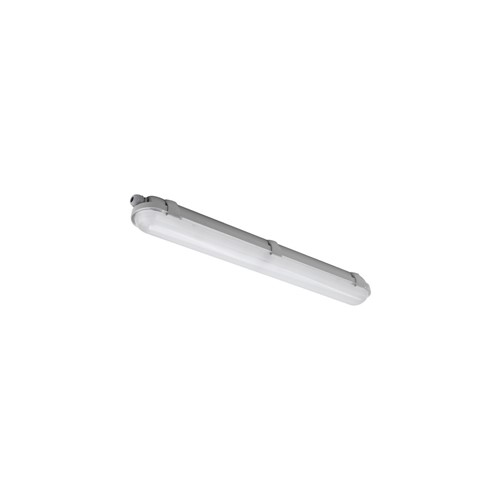

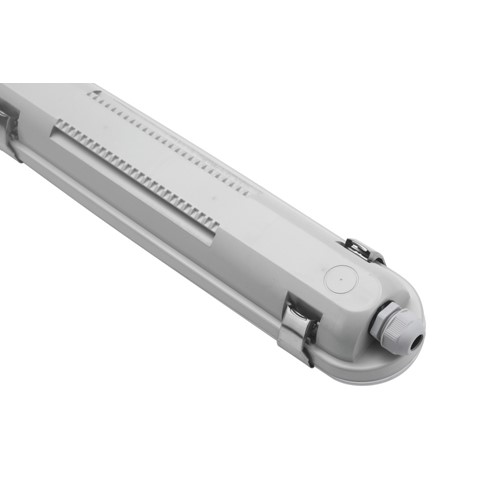

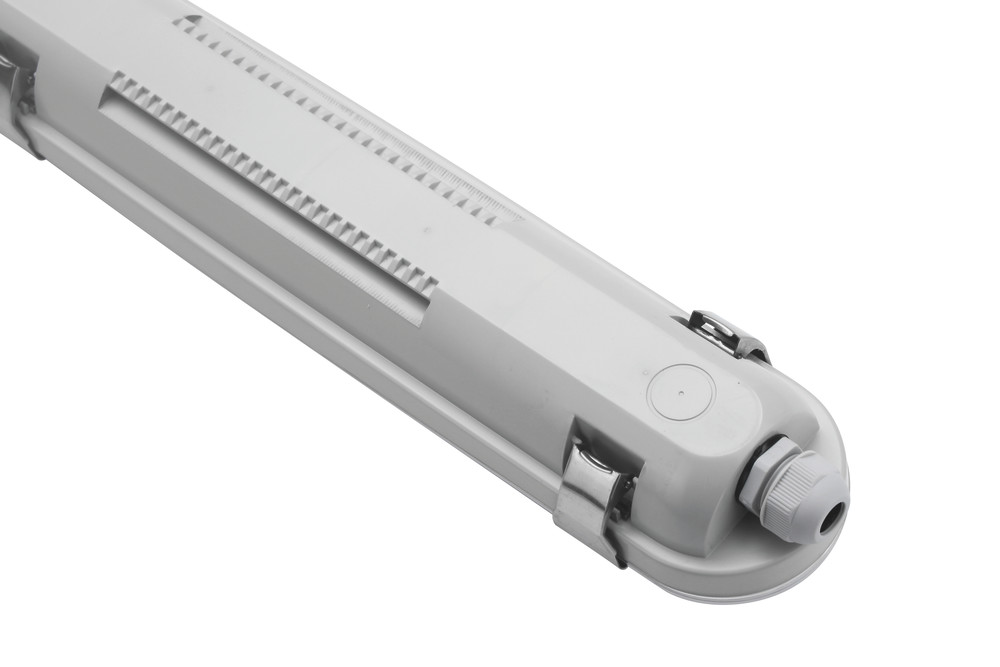

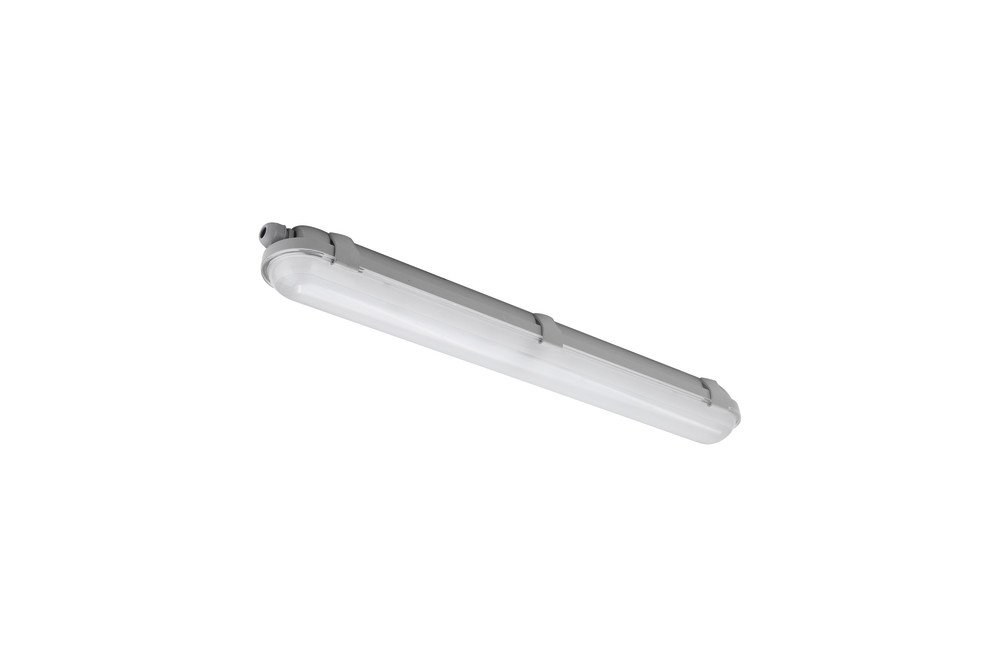

VAPOURLITE 2FT IP65 IK08 10W/17W 4000K/5000K/6500K 120 BEAM ANGLE 130LM/W NON_DIMM SENSOR
Part Number:
ILBTD208
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- 130lm/W
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- IP65
- Product Feature 7:
- IK08
- Availability:
-
11
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 306806 |
|---|---|
| Barcode | 5055788267454 |
| Category | Luminaires |
| Range Name | Vapourlite |
| Type | Single / Twin |
| Product Body Finish | Grey |
| Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
| Features | Power & CCT Switchable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 2ft |
| Linkable | Yes |
| Product Length (mm) | 605 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 82 |
| Product Weight (g) | 781 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, Commercial and Industrial |
Light Data
| Energy Efficiency Label (Image) | ILBTD208_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1300 to 2210 |
| Correlated Colour Temperature (CCT) (K) | 4000/5000/6500 |
| Colour Temperature | 4000/5000/6500 |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 20 & 38 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 881 |
|---|---|
| Package Length (mm) | 610 |
| Package Width (mm) | 86 |
| Package Depth (mm) | 76 |
Safety Guide
ILBTD208-10W-4000K
