VAPOURLITE 4FT IP65 IK08 20W/38W 4000K/5000K/6500K 120 BEAM ANGLE 130LM/W NON_DIMM EMERGENCY / SENSOR
Part Number:
ILBTD212

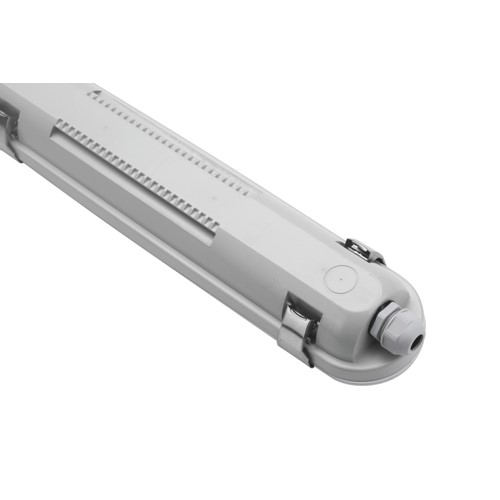

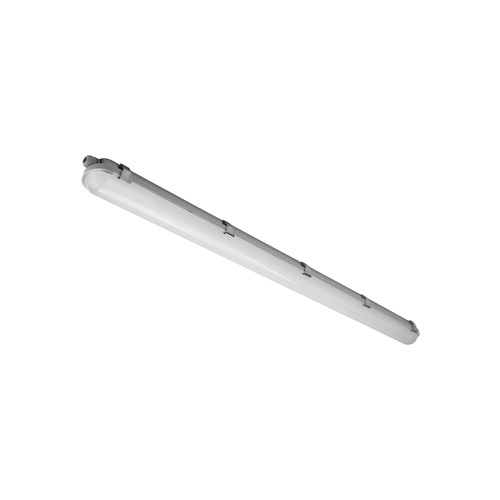

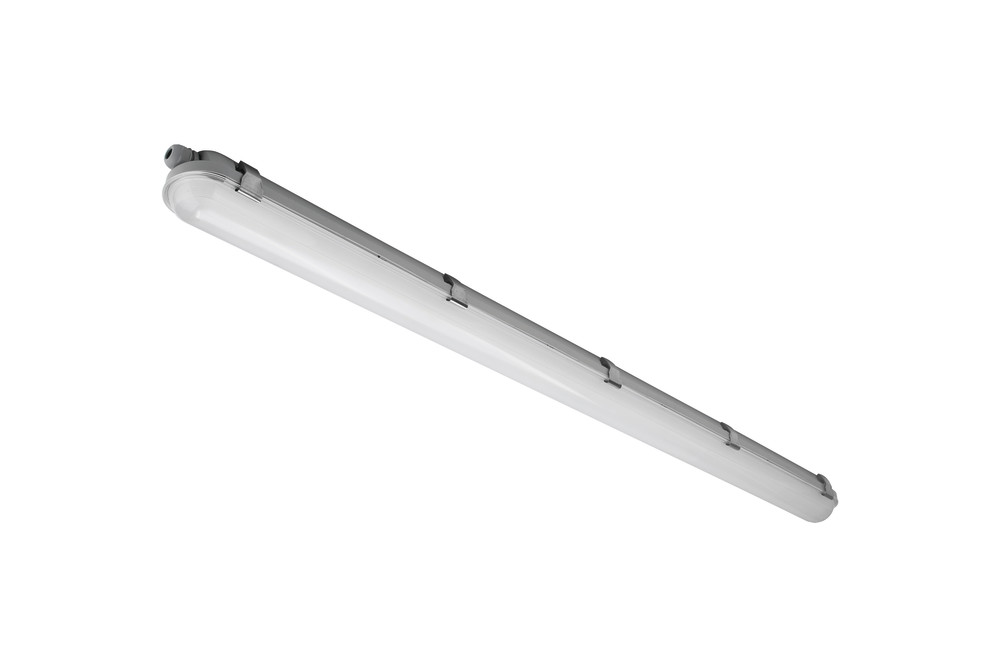

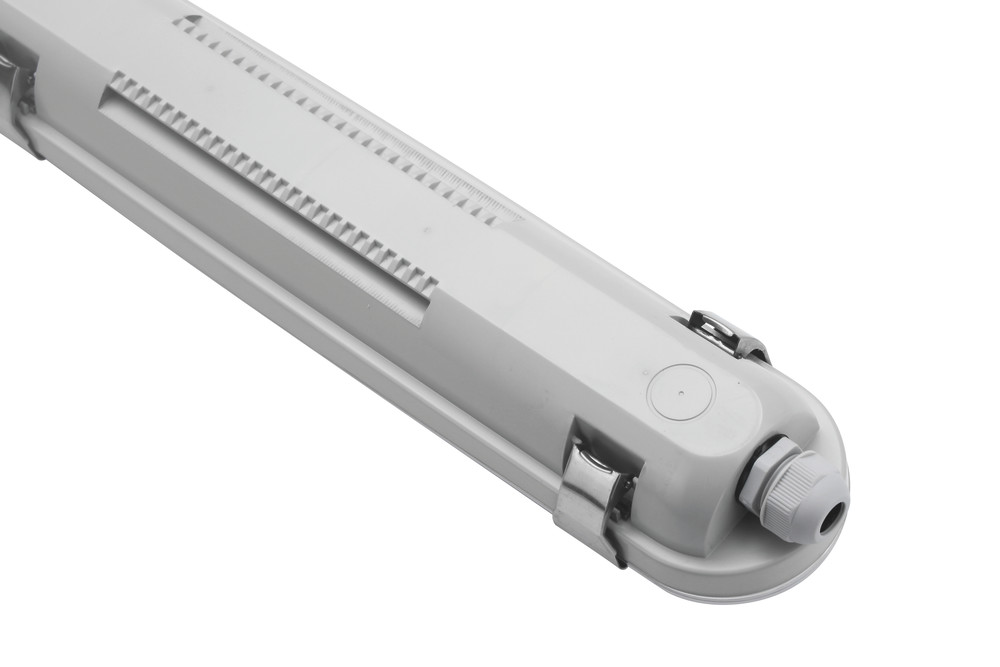

Integral's 4ft Vapourlite beam is a durable high-performance luminaire, perfect for indoor and outdoor commercial and industrial settings. The IP65/IK08-rated polycarbonate body boasts protection against dust and moisture ingress, also preventing damage from drops or knocks. With an efficacy of 130lm/w, this batten provides illumination that is both bright and efficient, while allowing you to switch colour temperate with ease thanks to its CCT switchable design. The PIR sensor ensures immediate illumination when you need it. 5 years warranty for your peace of mind.
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- 130lm/W
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- IP65
- Product Feature 7:
- IK08
- Availability:
-
79
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788267492 |
|---|---|
| Quick Order Code | 709074 |
| Category | Luminaires |
| Range Name | Vapourlite |
| Type | Single / Twin |
| Product Body Finish | Grey |
| Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
| Features | Power & CCT Switchable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Size (in ft) | 4ft |
| Linkable | Yes |
| Product Length (mm) | 1205 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 82 |
| Product Weight (g) | 1431 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, Commercial and Industrial |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 2600 to 4940 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000, 5000, 6500 |
| Colour Temperature | 4000/5000/6500 |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 225 |
| Switching Cycles | 25000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 20/38 |
|---|---|
| Power Consumption (W) | 20 & 38 |
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | C |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788267492 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1631 |
| Package Length (mm) | 1210 |
| Package Width (mm) | 86 |
| Package Depth (mm) | 76 |
| Outer Carton Barcode | 5055788271093 |
| Qty per Outer Carton | 9 |
| Outer Carton Length (mm) | 1225 |
| Outer Carton Width (mm) | 281 |
| Outer Carton Depth (mm) | 243 |
Safety Guide
ILBTD212-20W-4000K
