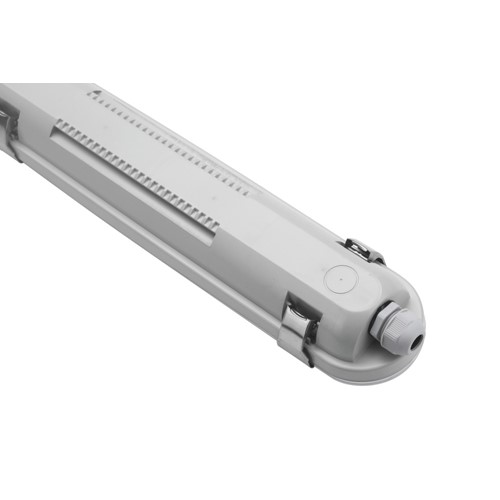

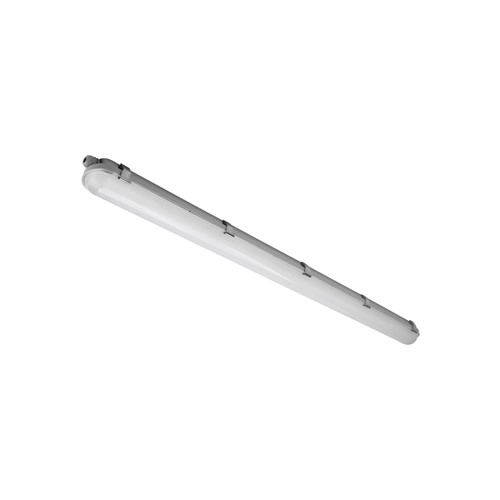

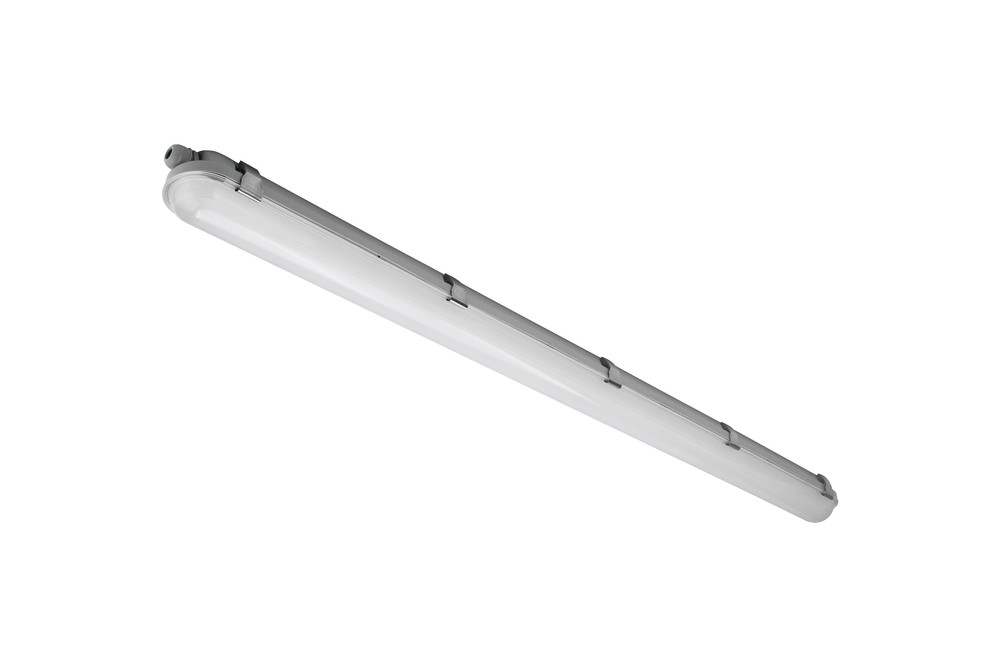

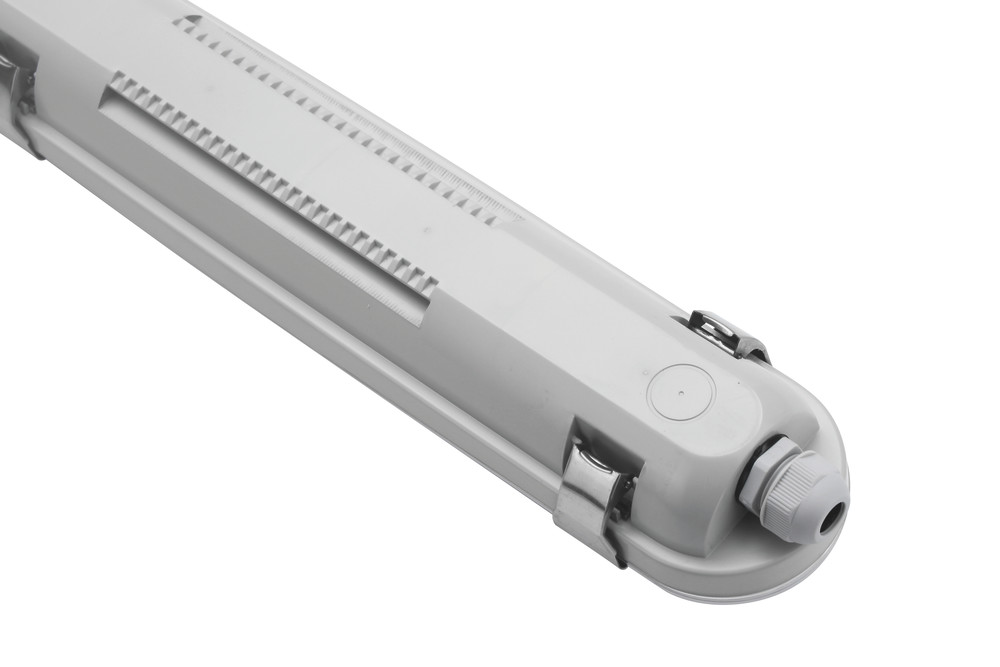

VAPOURLITE 4FT IP65 IK08 20W/38W 4000K/5000K/6500K 120 BEAM ANGLE 130LM/W NON_DIMM SENSOR
Part Number:
ILBTD209
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- 130lm/W
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- IP65
- Product Feature 7:
- IK08
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
Quick Order Code | 962811 |
---|---|
Barcode | 5055788267461 |
Category | Luminaires |
Range Name | Vapourlite |
Type | Single / Twin |
Product Body Finish | Grey |
Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
Features | Power & CCT Switchable |
Warranty (Years) | 5 |
Physical Data
Emergency Option | No |
---|---|
Size (in ft) | 4ft |
Linkable | Yes |
Product Length (mm) | 1205 |
Product Depth (mm) | 71 |
Product Width (mm) | 82 |
Product Weight (g) | 1339 |
Optic | Polycarbonate diffuser |
Material | Polycarbonate |
Construction | Injection moulding |
Bulb or Luminaire Shape | Linear |
Luminaire Fixing | Ceiling mounted |
Placement / Application | Indoor, Commercial and Industrial |
Light Data
Energy Efficiency Label (Image) | ILBTD209_EU_label |
---|---|
Luminous Flux in Lumens (lm) | 2600 to 4940 |
Correlated Colour Temperature (CCT) (K) | 4000/5000/6500 |
Colour Temperature | 4000/5000/6500 |
Colour Temperature Name | CCT Switchable |
Beam Angle | 120 |
Colour Rendering Index (CRI) | 80 |
Frequency Range (Hz) | 50/60 |
Instant on (Less than 1 second) | Yes |
LED Size (mm) | 2835 |
LED Type | Surface mounted device (SMD) |
Lifetime (hours) | 50000 |
Switching Cycles | 25000 |
Electrical Data
Power Consumption (W) | 32 & 57 |
---|---|
Power Factor | 0.9 |
Voltage Range (v) | 200-240 |
Input Voltage (V) | 200-240 |
Dimming | Non-Dimmable |
Driver Included | Yes |
Electric Current | AC |
EN | EN-60598 |
LVD Certified | Yes |
Environmental
EN | EN-60598 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
New Energy Rating | E |
EU Luminaire | L |
Hg 0% (Mercury Free) | Yes |
IK Rating (Impact Protection) | IK08 |
IP Rating (Ingress Protection) | 65 |
Lowest Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 40 |
Packaging
Package Weight (g) | 1539 |
---|---|
Package Length (mm) | 1210 |
Package Width (mm) | 86 |
Package Depth (mm) | 76 |
