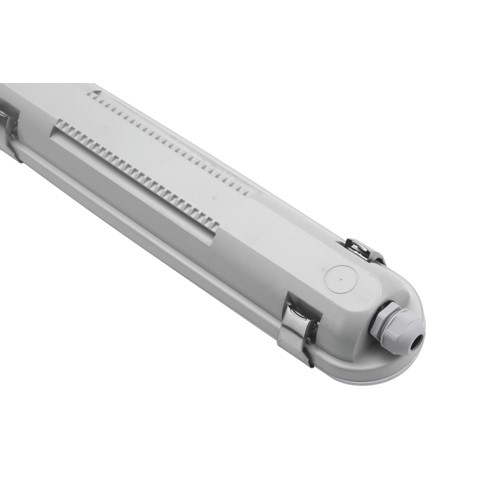

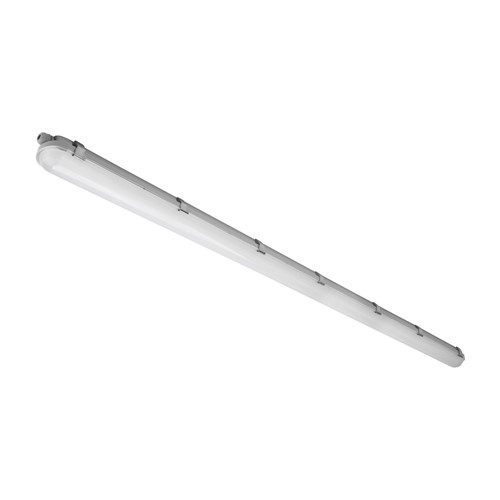

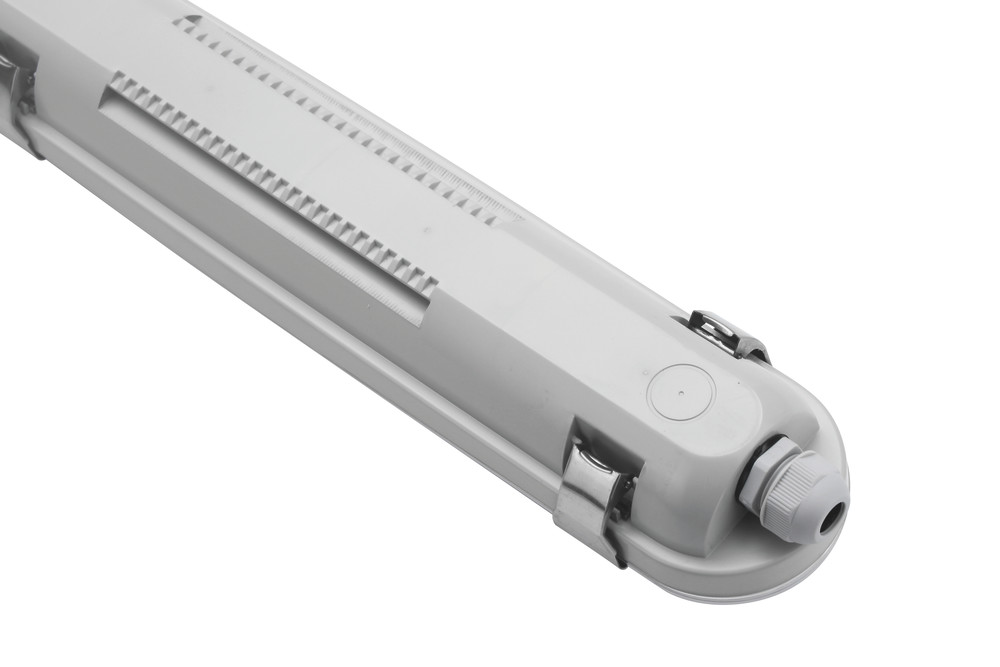

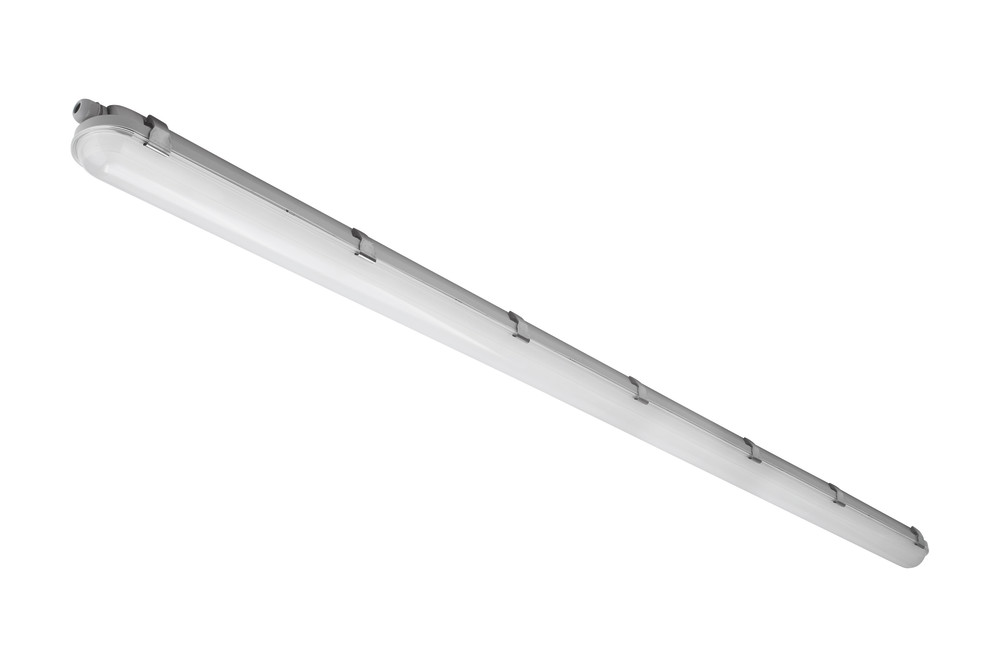

VAPOURLITE 6FT IP65 IK08 38W/68W 4000K/5000K/6500K 120 BEAM ANGLE 130LM/W NON_DIMM

Part Number:

ILBTD204

Product Feature 1:
Power & CCT Switchable
Product Feature 2:
50000hrs
Product Feature 3:
IP65 body protects against dust and moisture ingress
Product Feature 4:
130lm/W
Product Feature 5:
5 Year Warranty
Product Feature 6:
IP65
Product Feature 7:
IK08
Availability:
21

More stock due in on 07/05/2024

Quick Order Code 102081
Barcode 5055788267416
Category Luminaires
Range Name Vapourlite
Type Single / Twin
Product Body Finish Grey
Market Segment Commercial indoor and outdoor, Industrial indoor and outdoor
Features Power & CCT Switchable
Warranty (Years) 5
Emergency Option No
Size (in ft) 6ft
Linkable Yes
Product Length (mm) 1805
Product Depth (mm) 71
Product Width (mm) 82
Product Weight (g) 1883
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Ceiling mounted
Placement / Application Indoor, Commercial and Industrial
Energy Efficiency Label (Image) ILBTD204_EU_label
Luminous Flux in Lumens (lm) 4940 to 8840
Correlated Colour Temperature (CCT) (K) 4000/5000/6500
Colour Temperature 4000/5000/6500
Colour Temperature Name CCT Switchable
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Power Consumption (W) 38 & 68
Power Factor 0.9
Voltage Range (v) 200-240
Input Voltage (V) 200-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) 65
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 2163
Package Length (mm) 1810
Package Width (mm) 86
Package Depth (mm) 76

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
