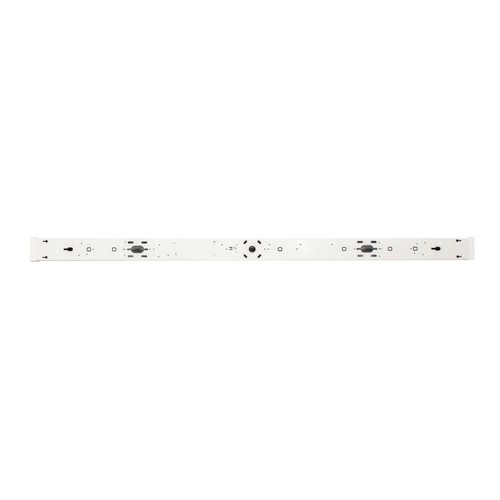

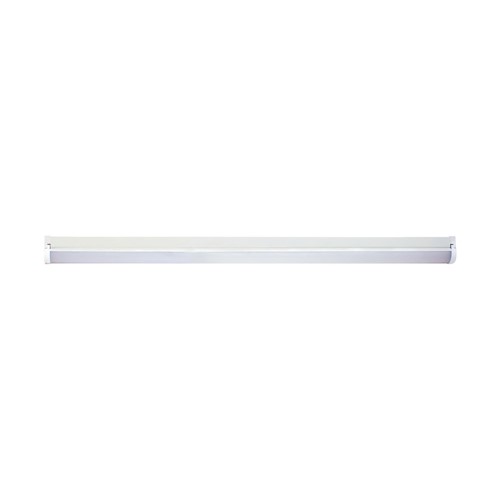

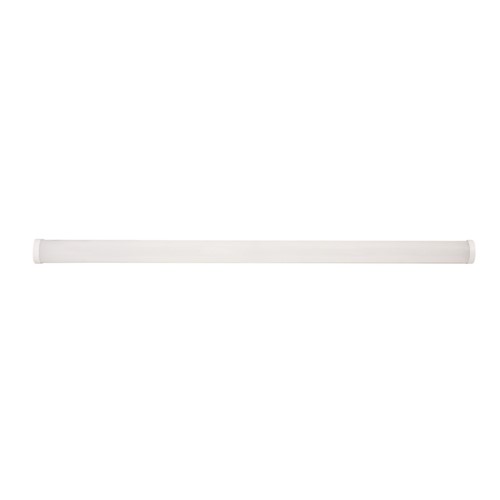

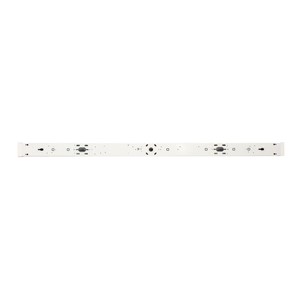

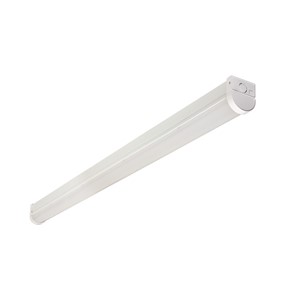

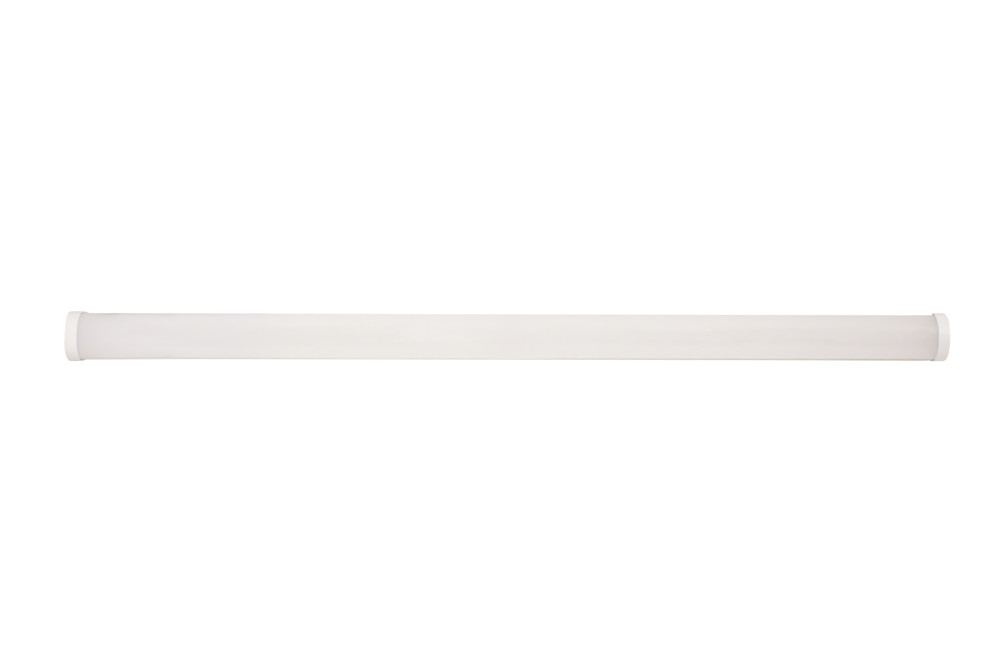

LIGHTSPAN T8 BATTEN 4FT SINGLE STANDARD 2800LM 22W 130LM/W 4000K 120 BEAM 1170MM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTC111
Integral Lightspan Battens provide an efficient alternative to T8 fluorescent tube fittings. With their high lumen output, Lightspan battens are ideal for indoor commercial spaces that need bright task lighting and at up to 130lm/W they offer big energy savings compared to equivalent fluorescent fittings.
- Product Feature 1:
- 2600lm
- Product Feature 2:
- Class I
- Product Feature 3:
- 130lm/W
- Product Feature 4:
- 3 Year warranty
- Availability:
-
100+
More stock due in on 09/01/2025
Suggested products
Details
| Quick Order Code | 492843 |
|---|---|
| Barcode | 5055788251248 |
| Category | Luminaires |
| Range Name | Lightspan |
| Type | Single |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 4ft |
| Linkable | No |
| Product Length (mm) | 1170 |
| Product Depth (mm) | 70 |
| Product Width (mm) | 60 |
| Product Weight (g) | 1700 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate, Aluminium |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Wall / Ceiling / Pendant / Conduit mounted |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTC111_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 2600 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Useful Lumens (lm) | 2600 |
Electrical Data
| Power Consumption (W) | 22 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 36 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK06 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 1800 |
|---|---|
| Package Length (mm) | 1175 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
Safety Guide
ILBTC111
