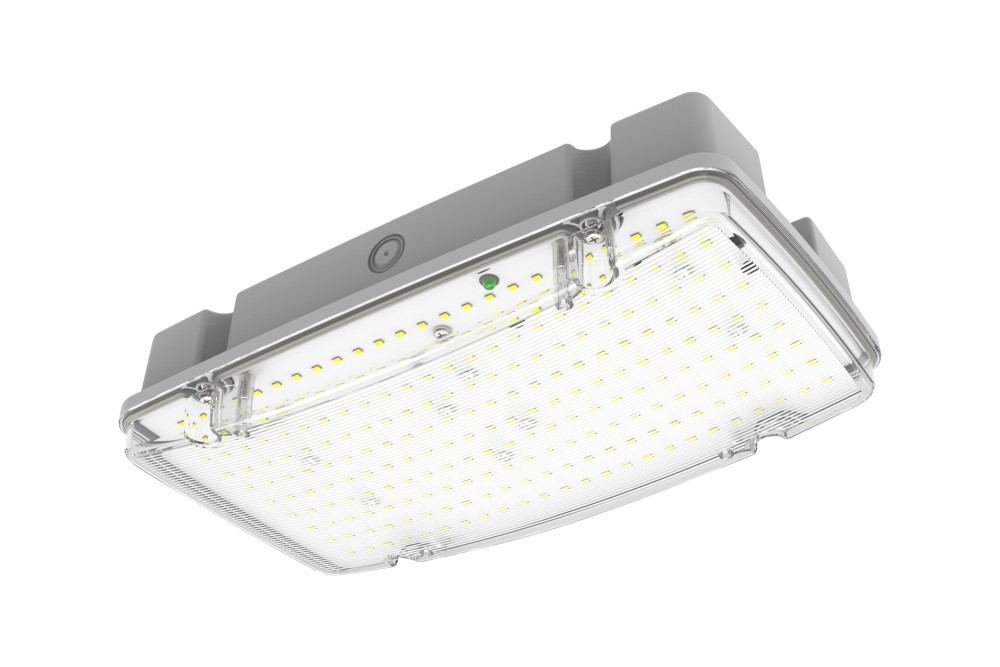

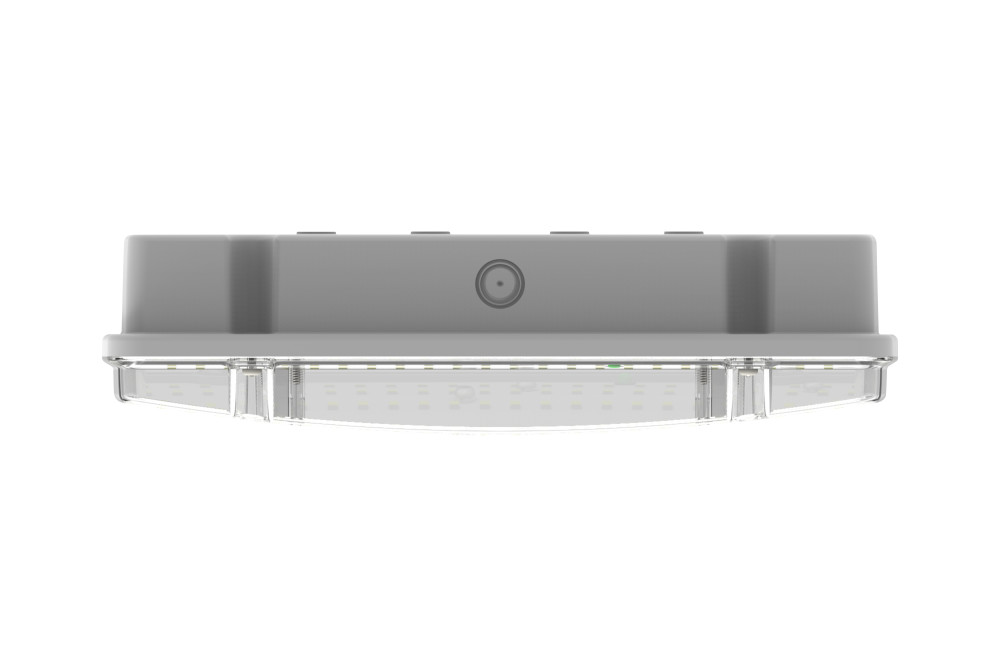

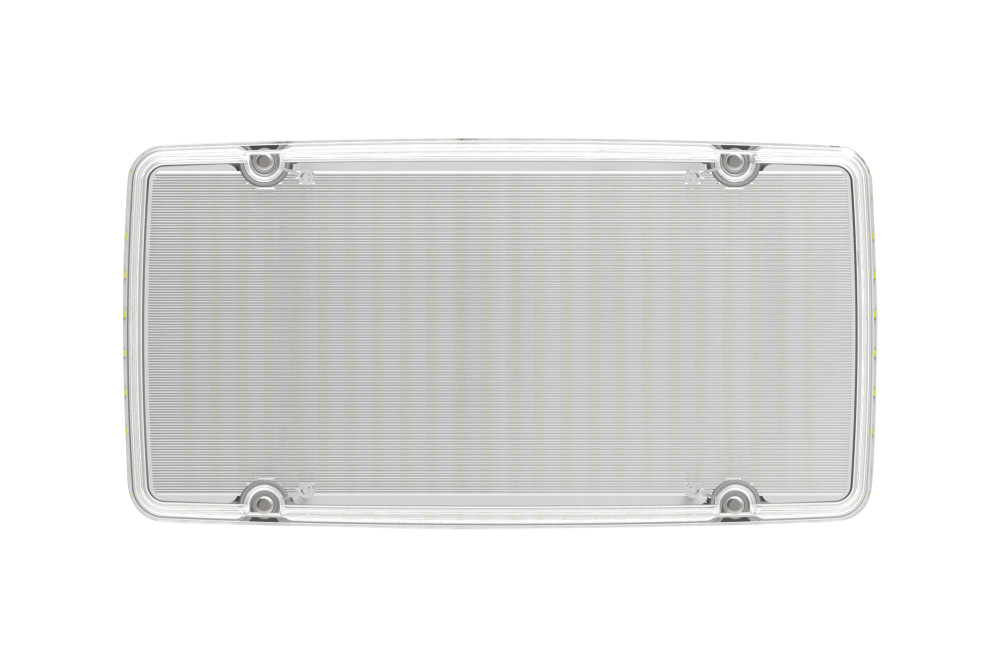

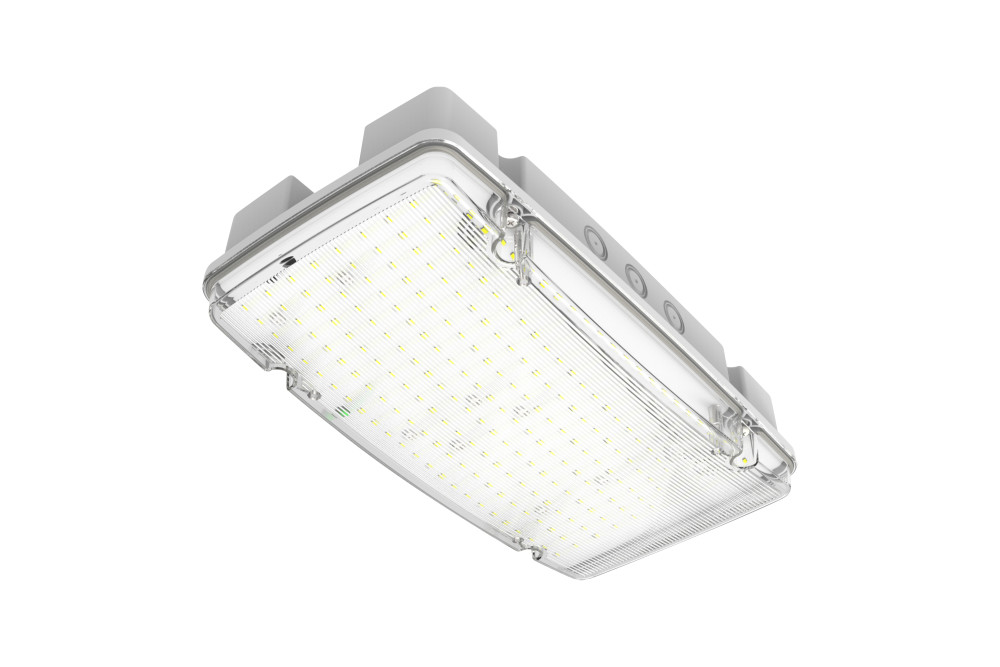

EMERGENCY HIGH BAY BULKHEAD 10/15W 1000/1500LM 3HR NON-MAINTAINED IP65 6500K MANUAL TEST INTEGRAL LED
Part Number:
ILEMBH030
The Integral LED Emergency Non-maintained Manual Test Bulkhead provides at least 3 hours of emergency illumination in the event of a power cut.

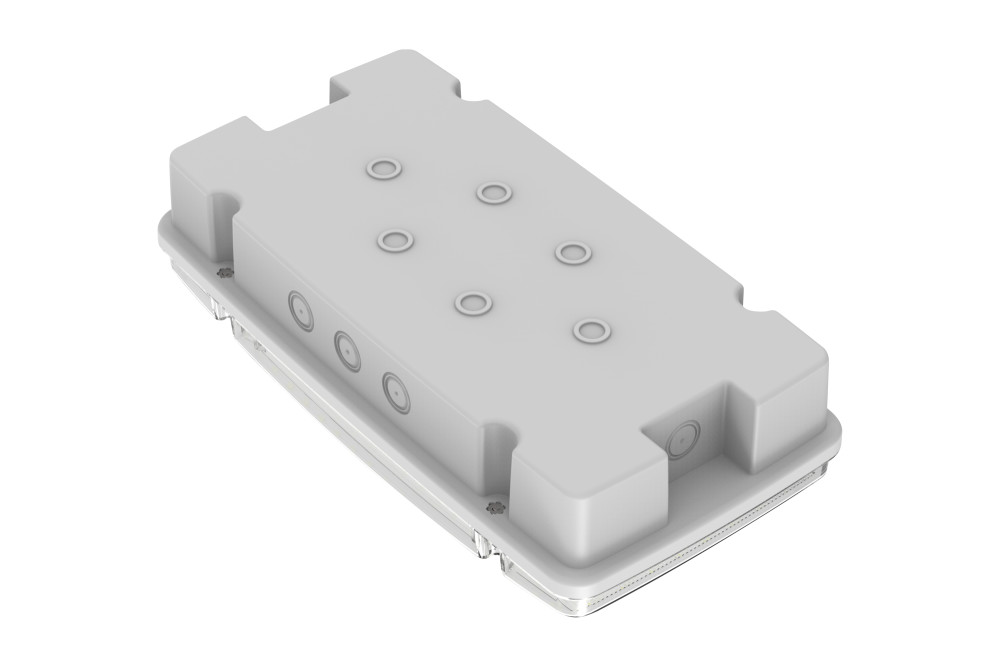

Offering high lumen output and power selection options these high bay luminaires are ideal for warehouses, factories and other industrial settings. Supplied with a hinged gear tray, push fit connectors and cable entry knock-outs (top, sides and back) for standard 20mm conduit (glands not supplied), Besa box and rear screw mount fitting. A set of self-adhesive emergency legends is also included.
- Product Feature 1:
- 3 Hour Emergency Illumination
- Product Feature 2:
- Hardwearing and weatherproof
- Product Feature 3:
- Non-maintained
- Product Feature 4:
- Push-fit connector for easy installation
- Product Feature 5:
- Supplied with self-adhesive Legend Set
- Product Feature 8:
- IK08
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Application | Open Area |
|---|---|
| Barcode | 5055788234968 |
| Category | Emergency |
| Range Name | Emergency Bulkhead |
| Product Type | Emergency Bulkhead |
| Product Body Finish | Matt white |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Finish | Matt White |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Bulkheads |
| Product Length (mm) | 355 |
| Product Depth (mm) | 70 |
| Product Width (mm) | 110 |
| Product Weight (g) | 59 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Construction | Plastic |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Ceiling, Wall |
| Mounting Type | Rear, Side, BESA, Canduit Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 1500 |
|---|---|
| Luminous efficacy (lm/W) | 176 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Lumens in Emergency mode (lm) | 1500 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 1500 |
Electrical Data
| Power Factor | 0.5 |
|---|---|
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 50 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | Ni-Cd 1500mAh |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 1500 |
| Emergency Type | Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Package Weight (g) | 675 |
|---|---|
| Package Length (mm) | 120 |
| Package Width (mm) | 85 |
| Package Depth (mm) | 365 |
