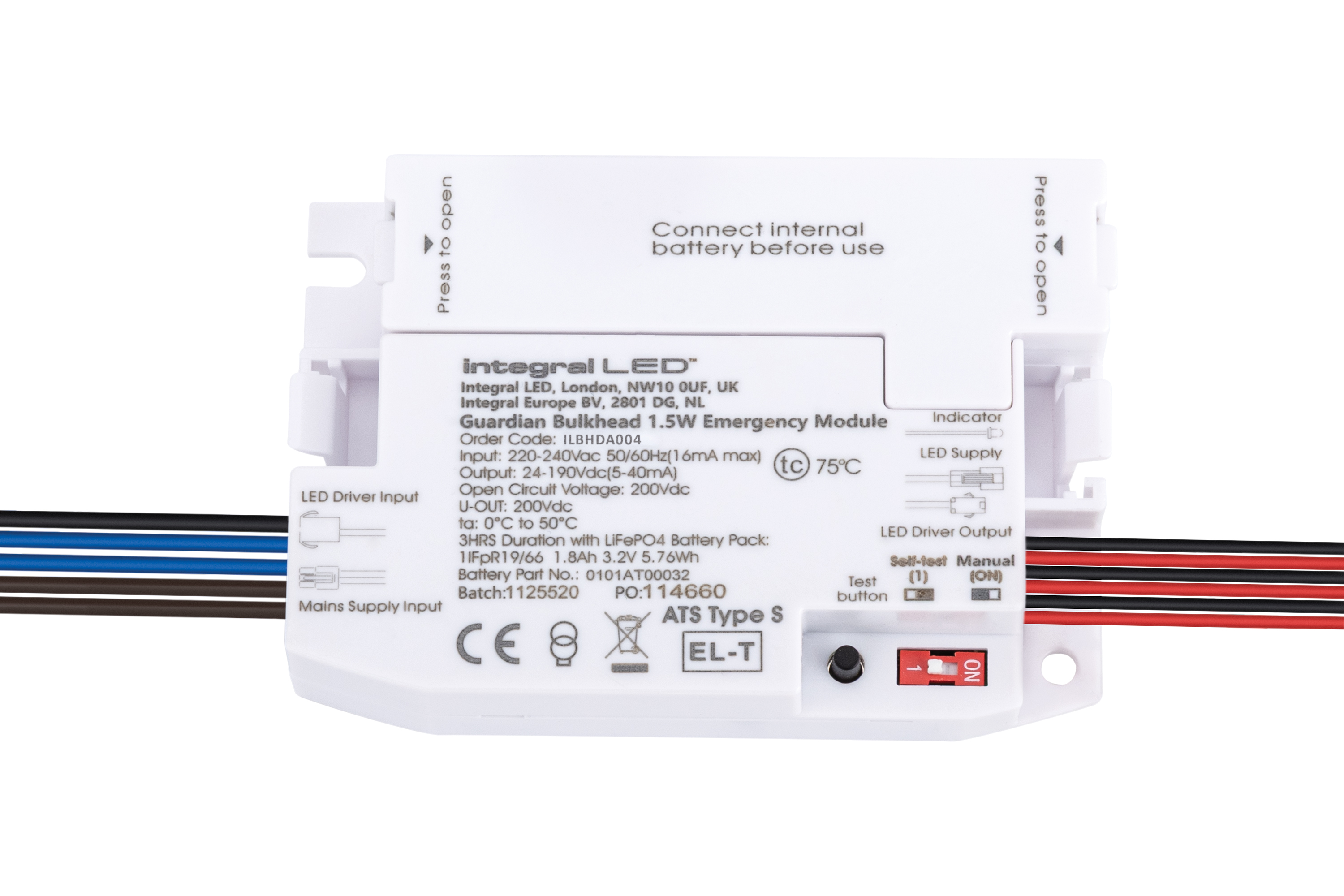

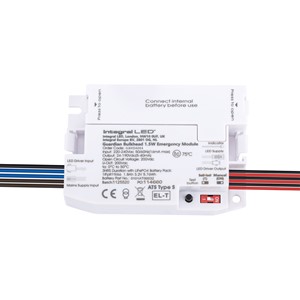

PLUG & PLAY EMERGENCY PACK FOR GUARDIAN DIE CAST ALUMINUM BULKHEAD INTEGRAL
Part Number:
ILBHDA004
Upgrade the Integral LED Guardian Diecast Aluminium Bulkhead to an Emergency Luminaire with this plug-and-play pack that provides 3 hours of emergency illumination in the event of a power cut.
- Product Feature 1:
- Plug-and-play emergency pack for Guardian bulkhead
- Availability:
-
0
More stock due in on 20/04/2026
Suggested products
Details
| Barcode | 5056884603085 |
|---|---|
| Quick Order Code | 185398 |
| Category | Luminaires |
| Range Name | Guardian |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | White |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Features | Accessory |
| Warranty (Years) | 5 |
Physical Data
| Emergency Category | Bulkheads |
|---|---|
| Product Depth (mm) | 22.5 |
| Product Weight (g) | 10 |
| Material | Polycarbonate |
| Construction | Polycarbonate |
| Luminaire Fixing | Ceiling, Wall |
Light Data
| LED Type | Surface mounted device (SMD) |
|---|---|
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 93 |
| Switching Cycles | 30000 |
Electrical Data
| Voltage Range (v) | 220-240 |
|---|---|
| Battery Configuration | 1.8aH 3.2V 5.76Wh |
| Emergency Battery Life (years) | 5 |
| Emergency Lumens (lm) | 93 |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5056884603085 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 50 |
| Package Length (mm) | 267 |
| Package Width (mm) | 40 |
| Package Depth (mm) | 267 |
| Outer Carton Barcode | 05056884603092 |
| Qty per Outer Carton | 60 |
| Outer Carton Length (mm) | 397 |
| Outer Carton Width (mm) | 390 |
| Outer Carton Depth (mm) | 158 |
