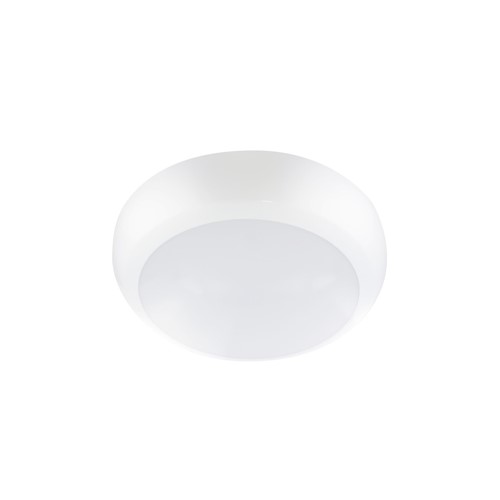

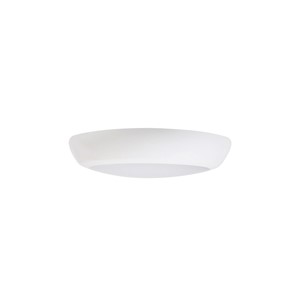

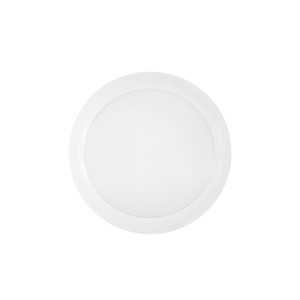

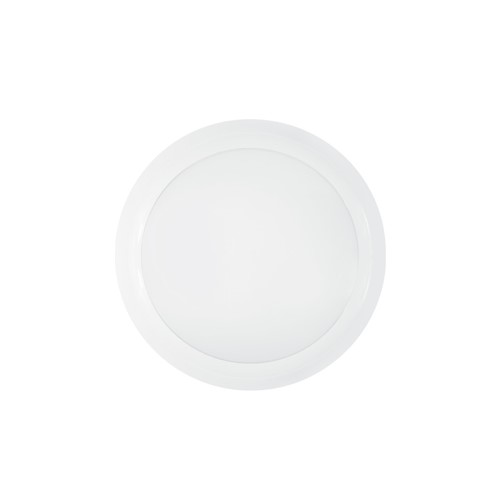

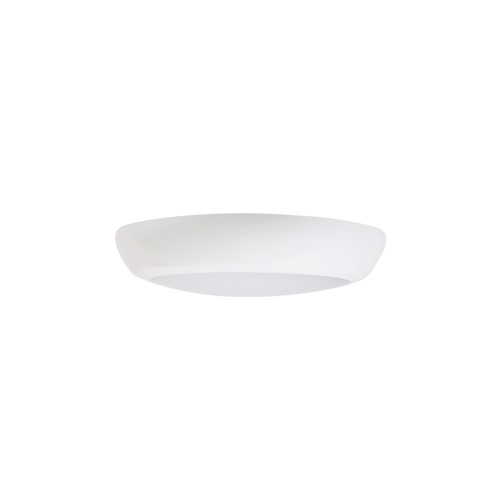

TOUGH SHELL PRO BULKHEAD 325MM DIA IP66 8/12/16W 3000/4000/6000K IK10 120 BEAM NON-DIMM WHITE 120LM/W
Part Number:
ILBHA070
The Integral LED Tough Shell Pro offers 120lm/W efficacy and modular functionality for easy and effective illumination in any setting.

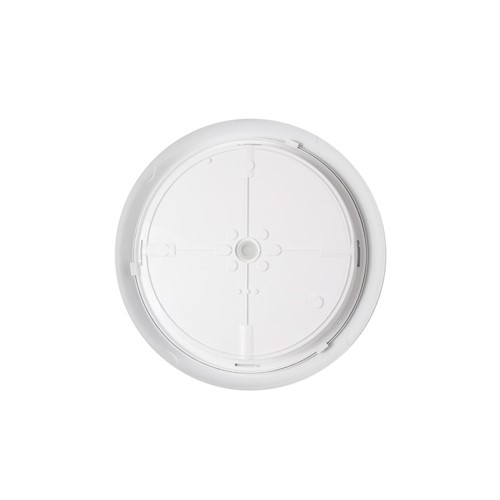

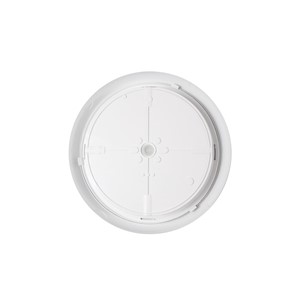

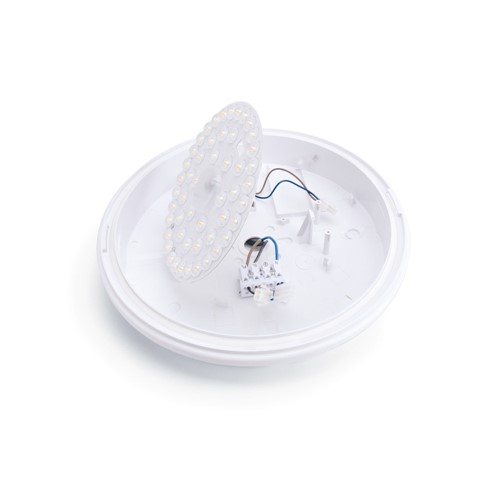

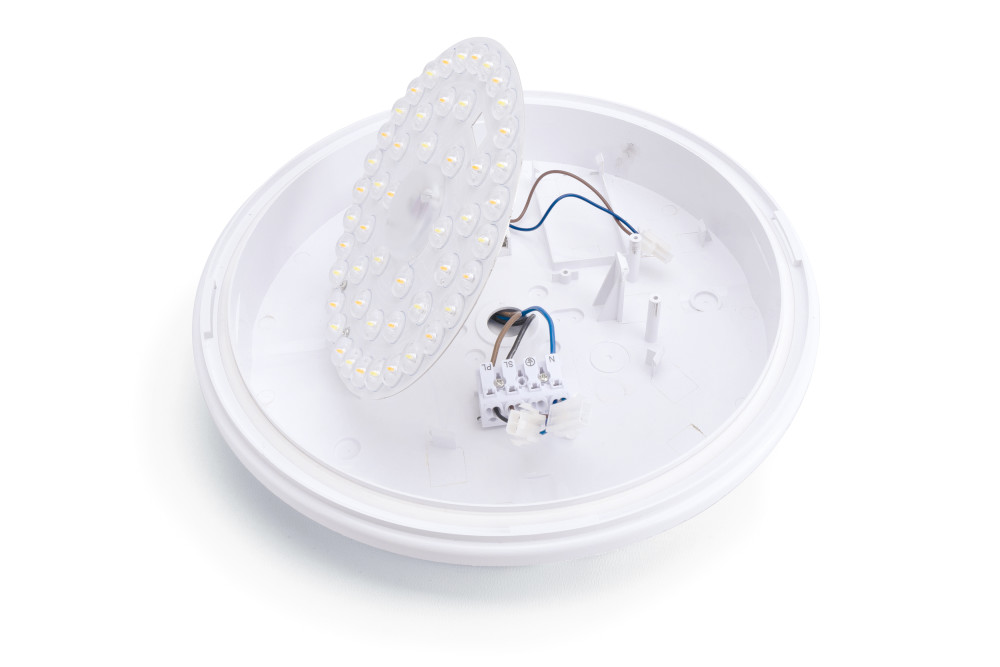

Suitable for indoor and outdoor installations, the luminaire’s polycarbonate body offers IK10 and IP66 protection to withstand even the toughest environments, whilst the back-lit LED design with frosted diffuser provides even, shadow-free light distribution over a 110° beam angle. The housing features BESA mounting and 4 side conduit entry points to streamline installation.
3000K, 4000K and 6000K CCT and power switchable as standard to match the needs of any application, the Tough Shell Pro is compatible with a variety of accessories to upgrade the look and functionality of the luminaire. Easily upgrade a standard luminaire to emergency and/or sensor control including corridor functionality with plug & play modules.

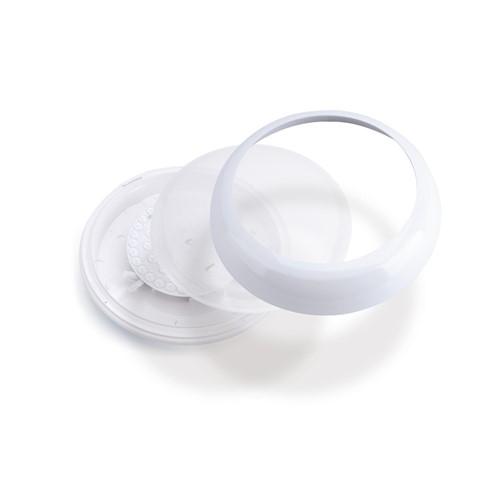

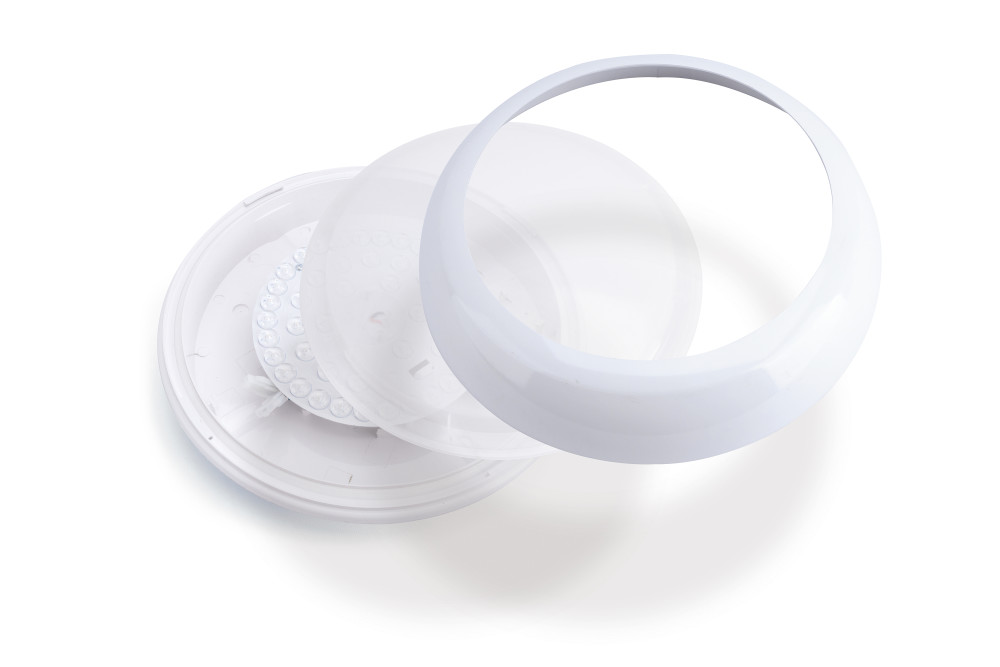

Supplied with a white bezel.
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- Tough casing (IK10 and IP66)
- Product Feature 3:
- Soft light for walls and ceilings
- Product Feature 4:
- Shadow-free even light distribution
- Product Feature 5:
- 2160 Lumens (Max)
- Product Feature 6:
- Non-Dimmable
- Product Feature 7:
- Plug & Play Sensors (Standard MW and Corridor Function) and Emergency Pack
- Availability:
-
100+
More stock due in on 26/11/2024
Suggested products
Details
| Quick Order Code | 560376 |
|---|---|
| Barcode | 5055788294429 |
| Category | Luminaires |
| Range Name | Tough-Shell Pro |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Features | CCT Switchable, Power Switchable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Emergency Category | Bulkheads |
| Product Depth (mm) | 75 |
| Product Weight (g) | 880 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Overall diameter (mm) | 325 |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Wiring / Mounting Options | Side conduit entry and BESA BOX fixing point |
Light Data
| Luminous Flux in Lumens (lm) | 1200 to 2160 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6000 |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | No |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 8/12/16 |
|---|---|
| Power Consumption (W) | 8/12/16 |
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 200 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 700 |
|---|---|
| Package Length (mm) | 330 |
| Package Width (mm) | 80 |
| Package Depth (mm) | 330 |
Safety Guide
ILBHA070-12W-3000K
