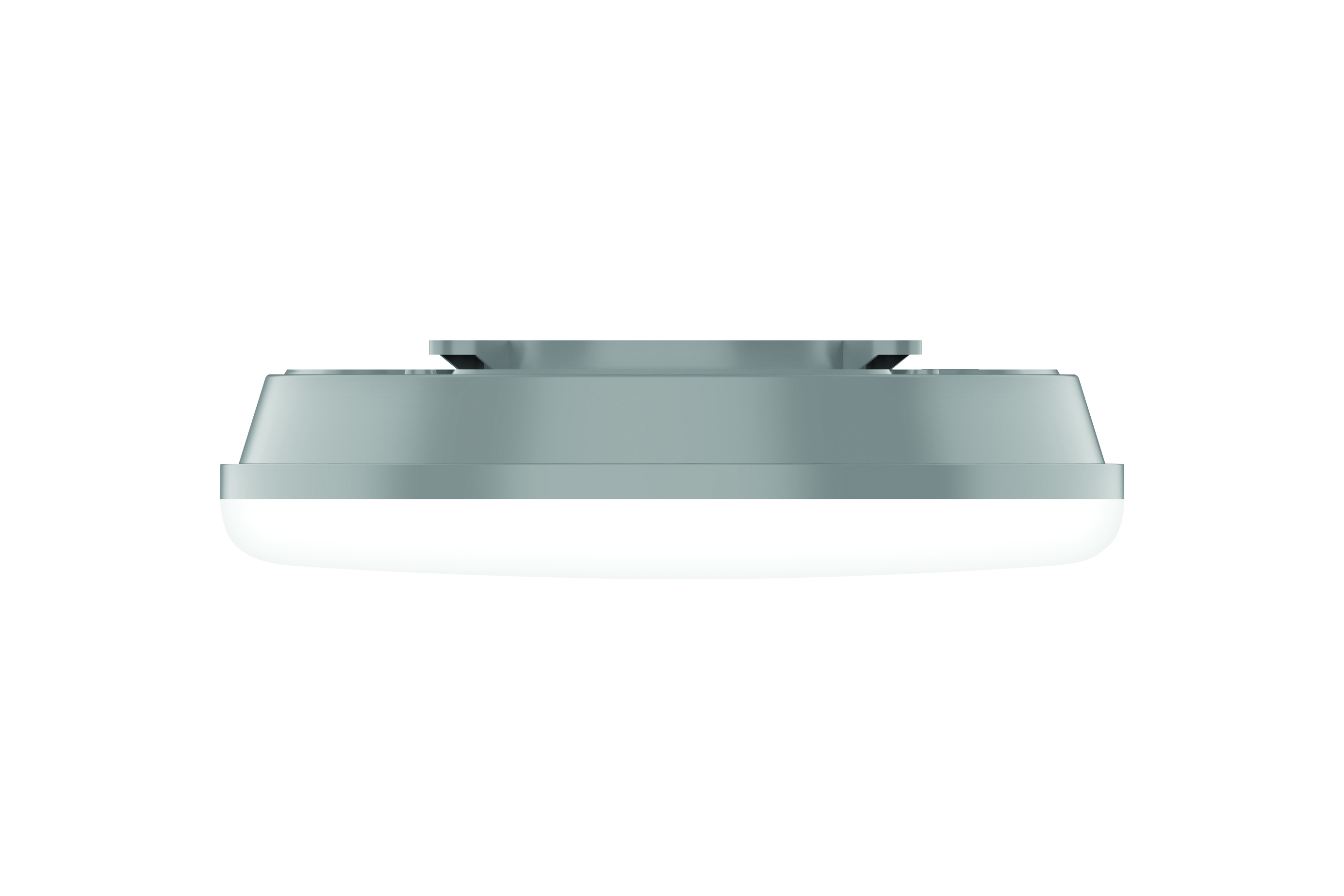

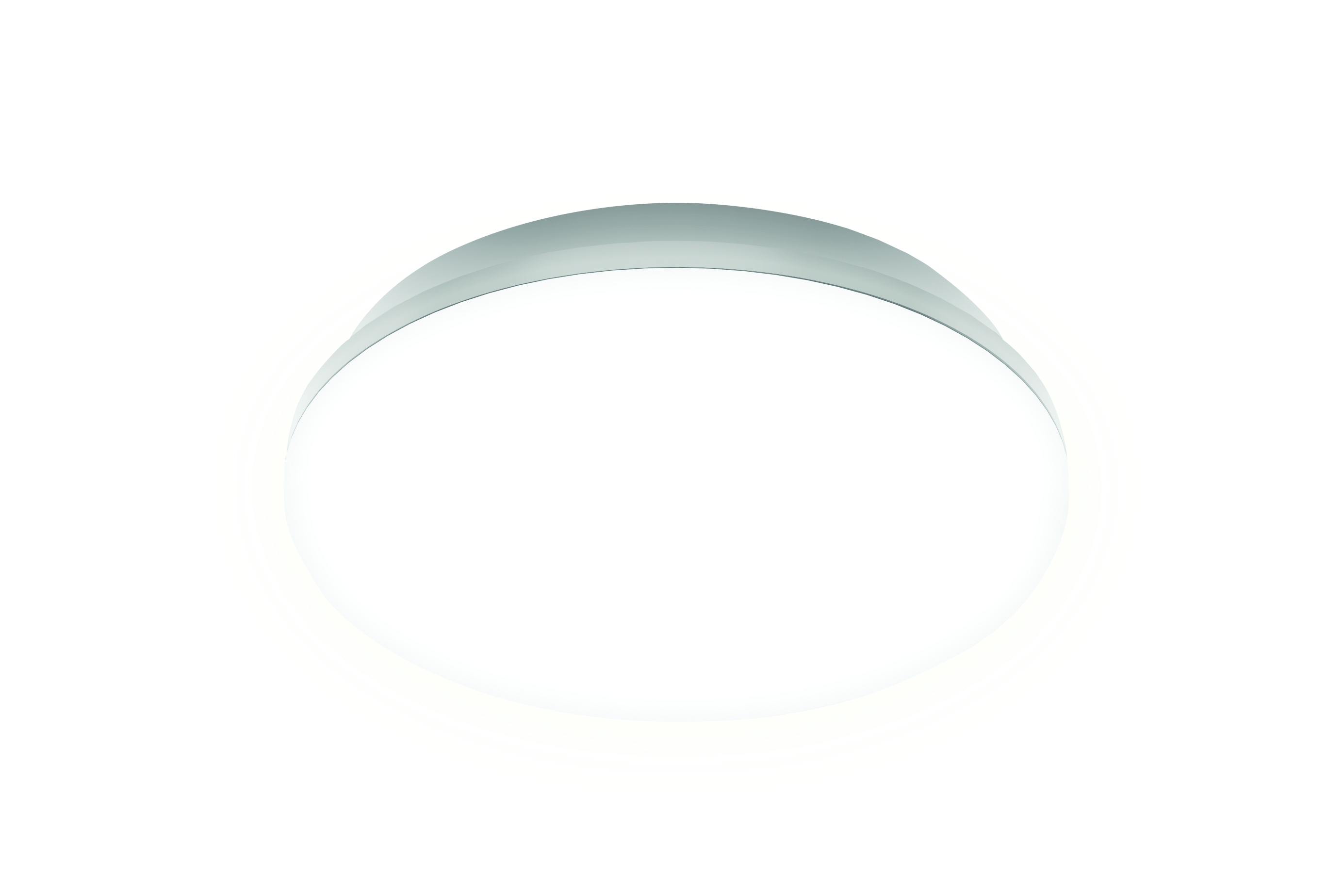

TOUGH SHELL BULKHEAD 220MM DIA IP44 960LM 8W CCT ADJUSTABLE 3000-4000-5000K IK09 120 BEAM NON-DIMM 120LM/W
Part Number:
ILBHA089
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The Integral LED low-energy bulkhead light delivers a super efficient 120 lumens per watt and selectable colour temperatures (warm/cool/daylight). The IP44 Tough-Shell Bulkhead is suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 25,000 hours based on normal usage.
- Product Feature 1:
- CCT Switchable 3000K-4000K-5000K
- Product Feature 2:
- Tough casing (IK09)
- Product Feature 3:
- Soft light for walls and ceilings
- Product Feature 4:
- Shadow-free even light distribution
- Product Feature 5:
- Non-Dimmable
- Product Feature 6:
- Highly efficient - 120lm/W
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788270928 |
|---|---|
| Quick Order Code | 393796 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | CCT Switchable |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 70 |
|---|---|
| Product Weight (g) | 446 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Overall diameter (mm) | 220 |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear Only |
Light Data
| Energy Efficiency Label (Image) | ILBHA089_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 960 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 3000-4000-5000 |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 80 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK09 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788270928 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 558 |
| Package Length (mm) | 230 |
| Package Width (mm) | 230 |
| Package Depth (mm) | 75 |
| Outer Carton Barcode | 5055788270959 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 480 |
| Outer Carton Width (mm) | 400 |
| Outer Carton Depth (mm) | 250 |
Safety Guide
ILBHA089-3000K
