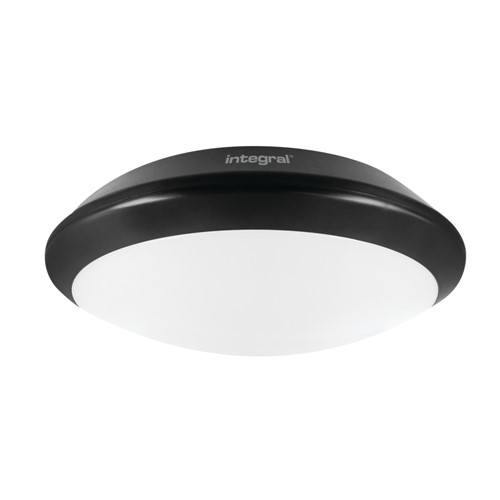

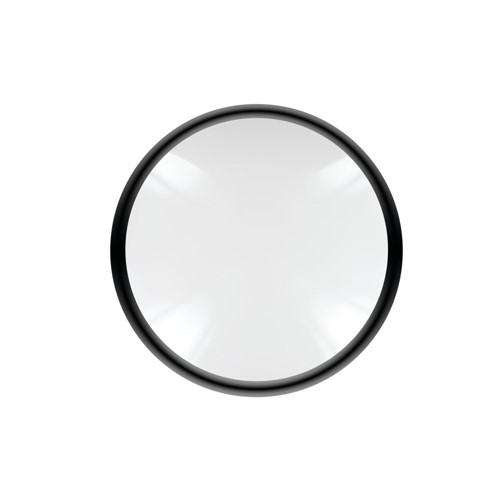

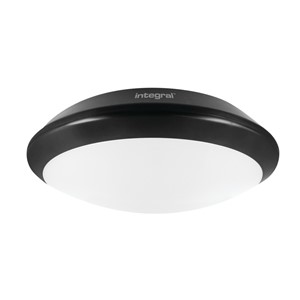

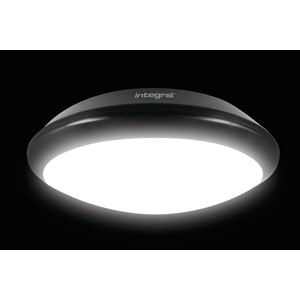

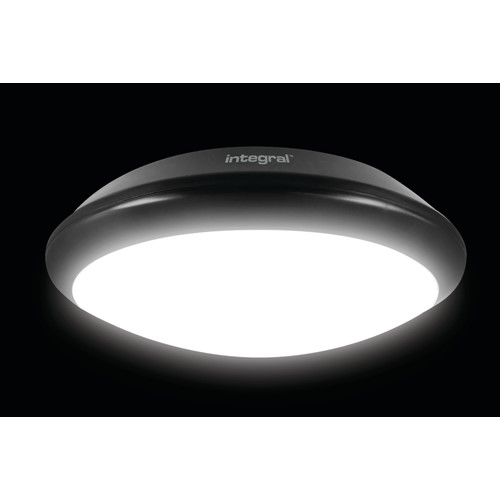

TOUGH SHELL+ BULKHEAD 350MM DIA IP66 2500LM 24W 4000K IK10 120 BEAM NON-DIMM BLACK 104LM/W INTEGRAL

Part Number:

ILBHA041

The Integral LED 24W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 120 degree beam angle and an even light distribution, available in a black and white finish.

This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 2500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.

Product Feature 1:
Side and rear cable entries
Product Feature 2:
Tough casing (IK10)
Product Feature 3:
2500 Lumen
Product Feature 4:
High efficiency 100lm per watt
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Barcode 5055788229735
Category Luminaires
Range Name Tough-Shell
Product Type Bulkheads-Ceiling-Wall Lights
Product Body Finish Matt Black
Market Segment Indoor and Outdoor Commercial, Industrial, Residential
Features Standard
Warranty (Years) 3
Product Depth (mm) 103
Product Weight (g) 1190
Diameter (mm) 350
Optic Polycarbonate diffuser
Material Polycarbonate
Overall diameter (mm) 350
Construction Polycarbonate casing and diffuser
Bulb or Luminaire Shape Round
Luminaire Fixing Ceiling, Wall
Placement / Application Indoor, Outdoor, General Lighting
Wiring / Mounting Options Side and rear cable entries
Energy Efficiency Label (Image) ILBHA041_EU_label
Luminous Flux in Lumens (lm) 2500
Luminous efficacy (lm/W) 104
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 35000
Sensor / Overide No
Switching Cycles 17500
Power (W) 24
Power Consumption (w) 24
Power Factor 0.9
Amperage (mA) 350
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Lumens (lm) No
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP66
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 1450
Package Length (mm) 355
Package Width (mm) 108
Package Depth (mm) 355
Qty per euro pallet 80

Product Specification Sheet

LDT Files

Installation Guides
