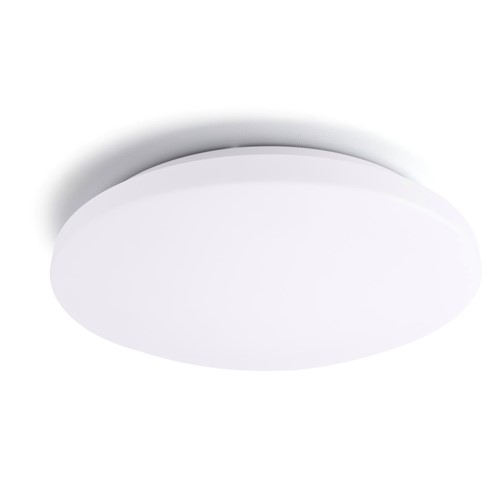

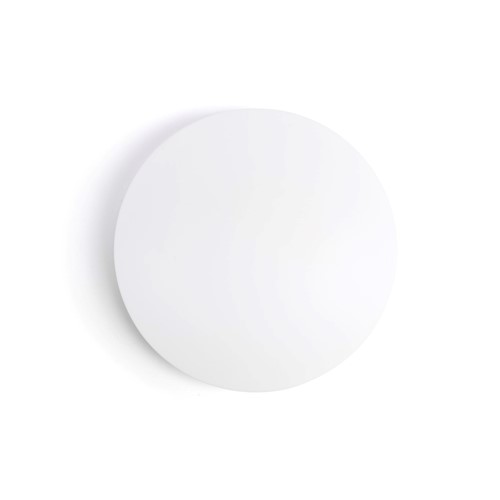

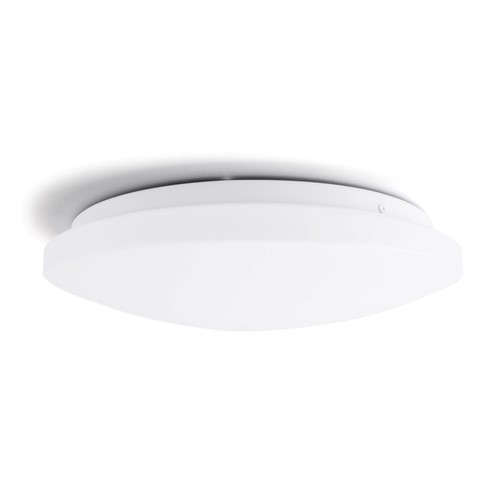

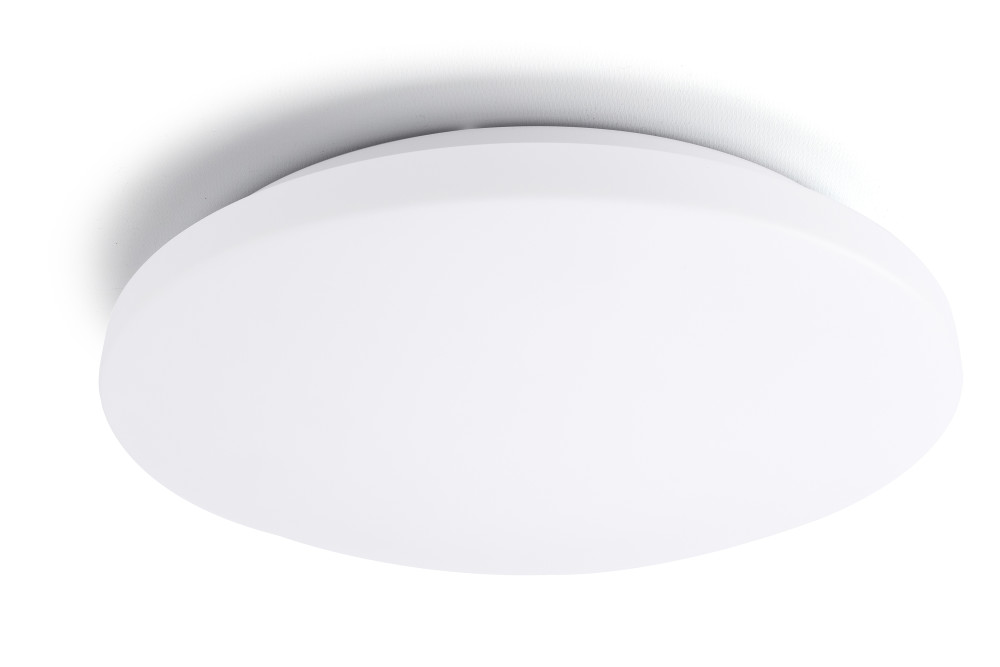

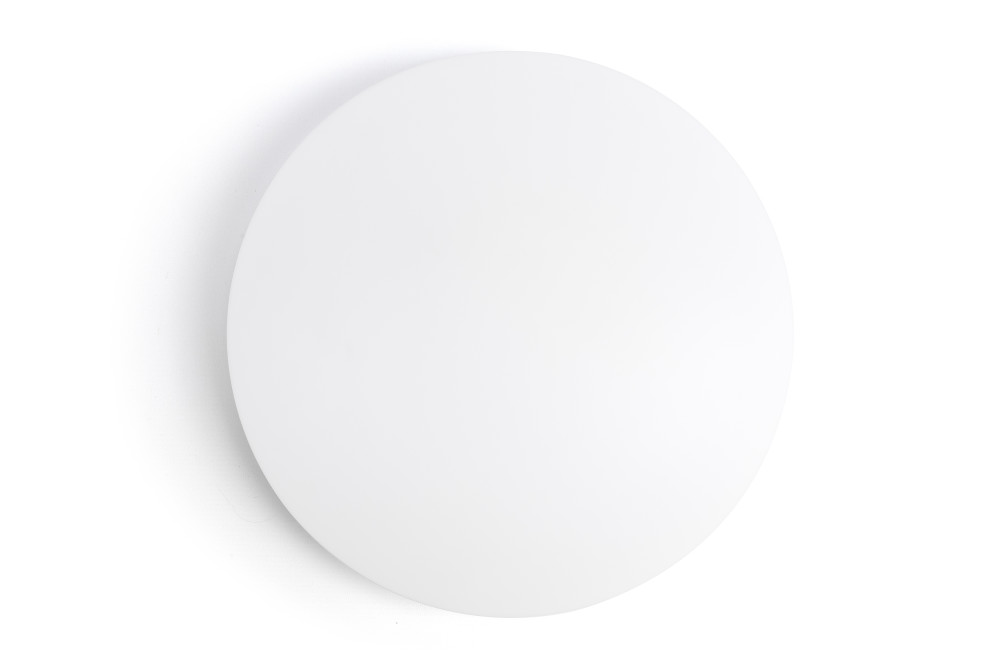

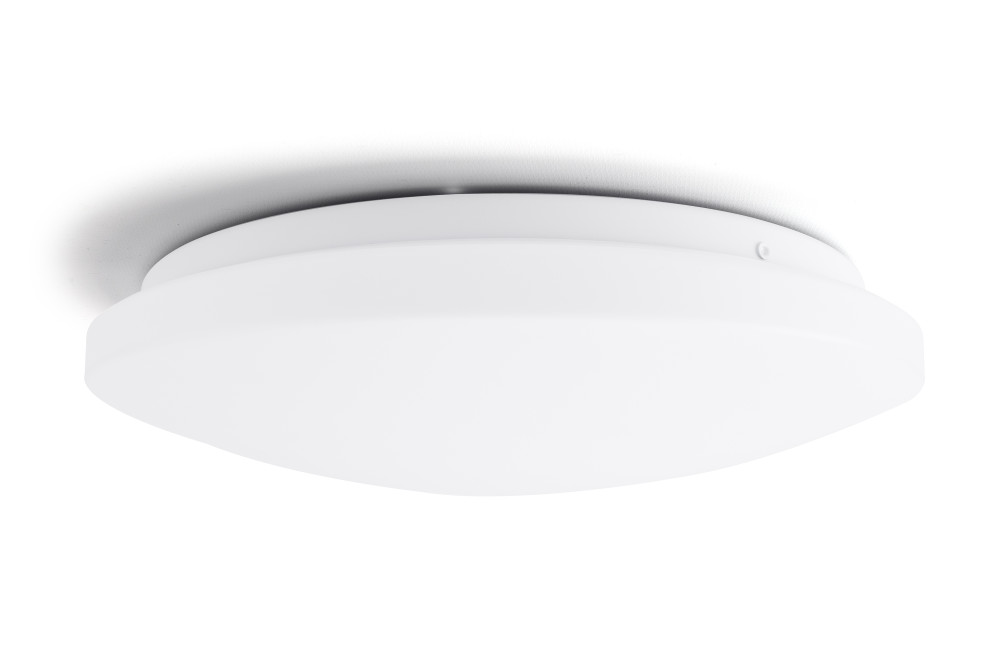

VALUE+ CEILING/WALL LED LIGHT 338MM DIA EMERGENCY 3HR IP44 1600LM 16W CCT ADJUSTABLE 3/4/5000K 120 BEAM NON-DIMM 100 LM/W
Part Number:
ILBHE097
The Value+ Ceiling & Wall Light is a versatile and energy-efficient lighting solution designed for a wide range of applications. With adjustable CCT to suit the installation environment's specific needs, the IP44 rating makes it suitable for damp environments, such as bathrooms, corridors, and sheltered outdoor areas, providing reliable protection against dust and water splashes.
Equipped with an emergency pack for 3 hours of critical illumination during power outages, the Value+ is ideal for residential settings, commercial spaces and emergency applications.
- Product Feature 1:
- High lumen efficacy 100lm/W
- Product Feature 2:
- Flush-fit
- Product Feature 3:
- Soft light for walls and ceilings
- Product Feature 4:
- Easy installation
- Product Feature 5:
- 1600lm
- Availability:
-
0
More stock due in on 21/01/2025
Suggested products
Details
| Quick Order Code | 719833 |
|---|---|
| Barcode | 5055788299639 |
| Category | Luminaires |
| Range Name | Value+ |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Emergency Function |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Bulkheads |
| Product Depth (mm) | 80 |
| Product Weight (g) | 640 |
| Optic | PMMA diffuser |
| Material | PMMA, Metal |
| Overall diameter (mm) | 338 |
| Construction | Metal base and PMMA diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear cable entry |
Light Data
| Luminous Flux in Lumens (lm) | 1600 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000-4000-5000 |
| Colour Temperature Name | Warm White / Cool White / Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 36000 |
| Lumens in Emergency mode (lm) | 320 |
| Sensor / Overide | No |
| Switching Cycles | 20000 |
Electrical Data
| Power (W) | 16 |
|---|---|
| Power Consumption (W) | 16 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 400 |
| Battery Configuration | Lithium-ion |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 320 |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK03 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 750 |
|---|---|
| Package Length (mm) | 360 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 360 |
