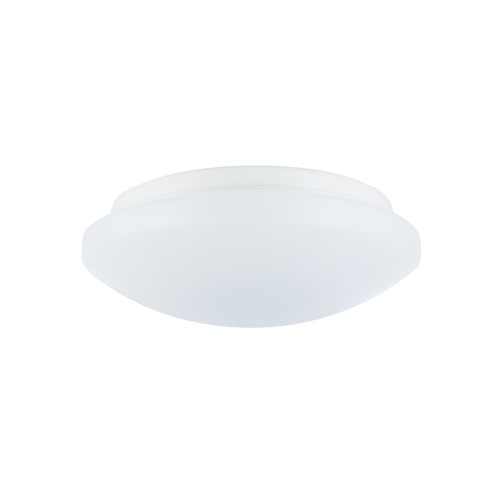

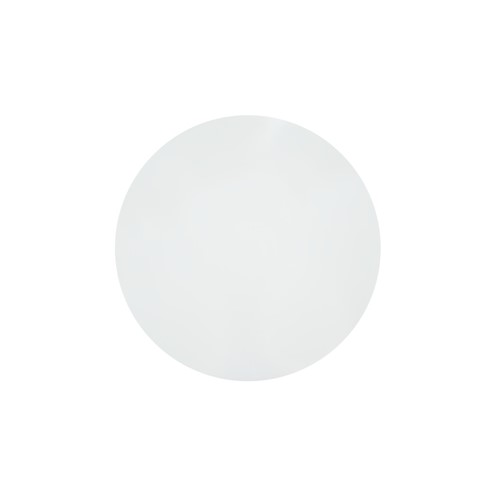

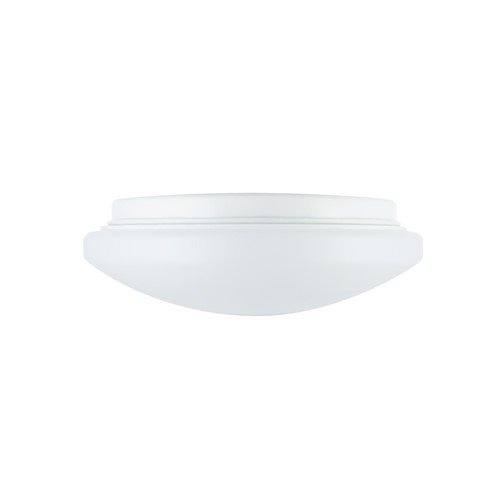

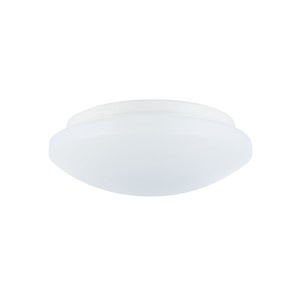

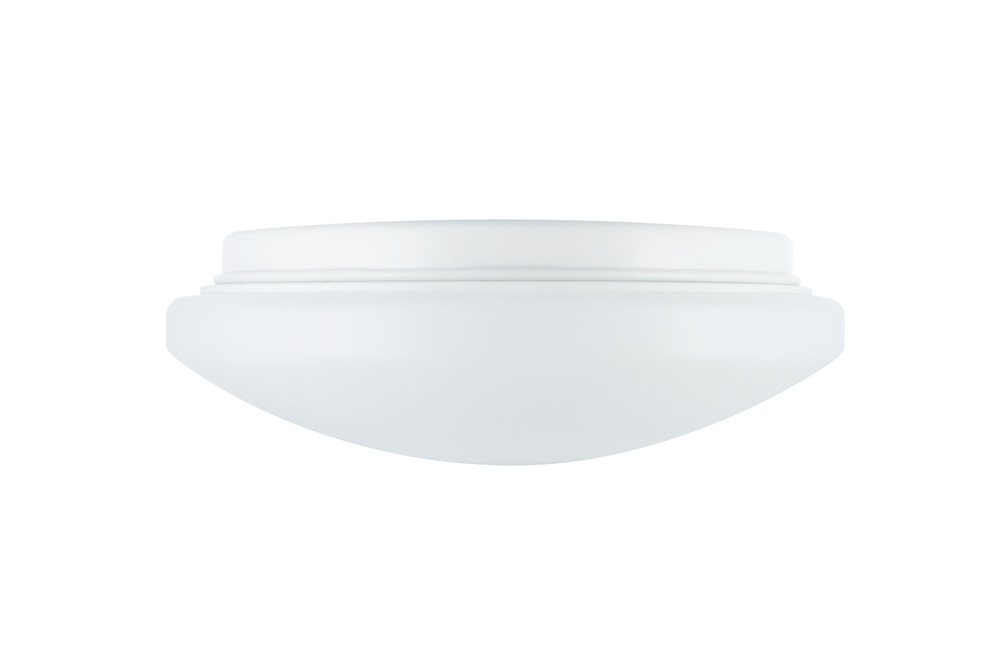

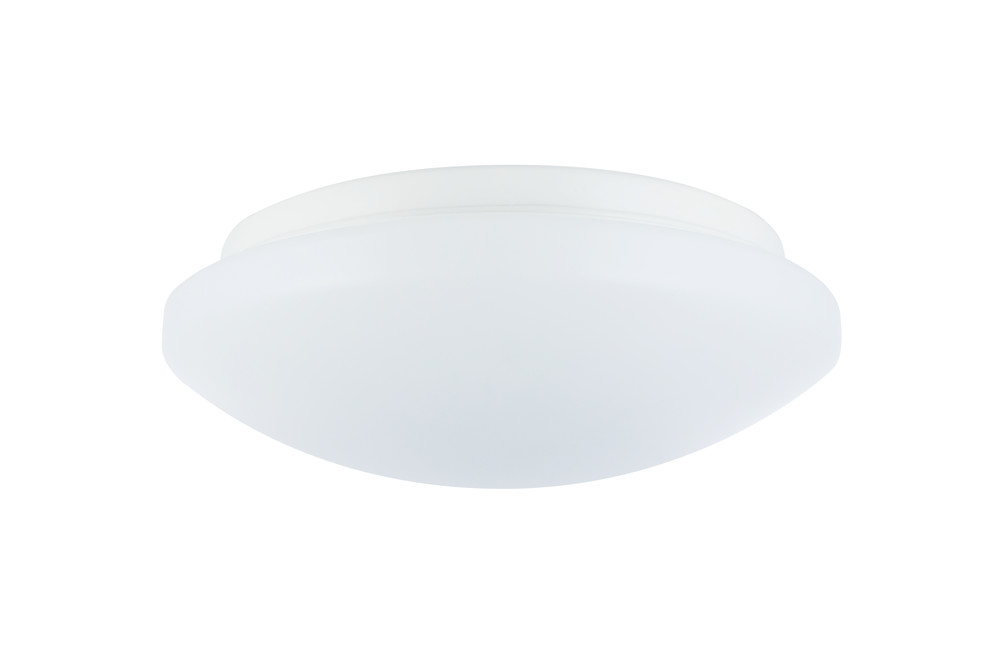

VALUE+ CEILING/WALL LIGHT 238MM DIA IP44 800LM 8W 3000K 120 BEAM NON-DIMM INTEGRAL
Part Number:
ILBHE078
Low-energy LED IP44 Value+ ceiling and wall light, suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2) and covered (sheltered) external areas, such as porches. PMMA Diffuser provides a soft light. Long life expectancy of 25,000 hours based on normal usage. 3 year warranty.
- Product Feature 1:
- High lumen efficacy 100lm/W
- Product Feature 2:
- Flush-fit
- Product Feature 3:
- Soft light for walls and ceilings
- Product Feature 4:
- Easy installation
- Product Feature 5:
- 800 Lumens
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 813437 |
|---|---|
| Barcode | 5055788262510 |
| Category | Luminaires |
| Range Name | Value+ |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Standard |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 80 |
|---|---|
| Product Weight (g) | 270 |
| Diameter (mm) | 238 |
| Optic | PMMA diffuser |
| Material | PMMA, Metal |
| Overall diameter (mm) | 238 |
| Construction | Metal base and PMMA diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear cable entry |
Light Data
| Energy Efficiency Label (Image) | ILBHE078_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 800 |
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 58 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 570 |
|---|---|
| Package Length (mm) | 260 |
| Package Width (mm) | 260 |
| Package Depth (mm) | 950 |
Safety Guide
ILBHE078
