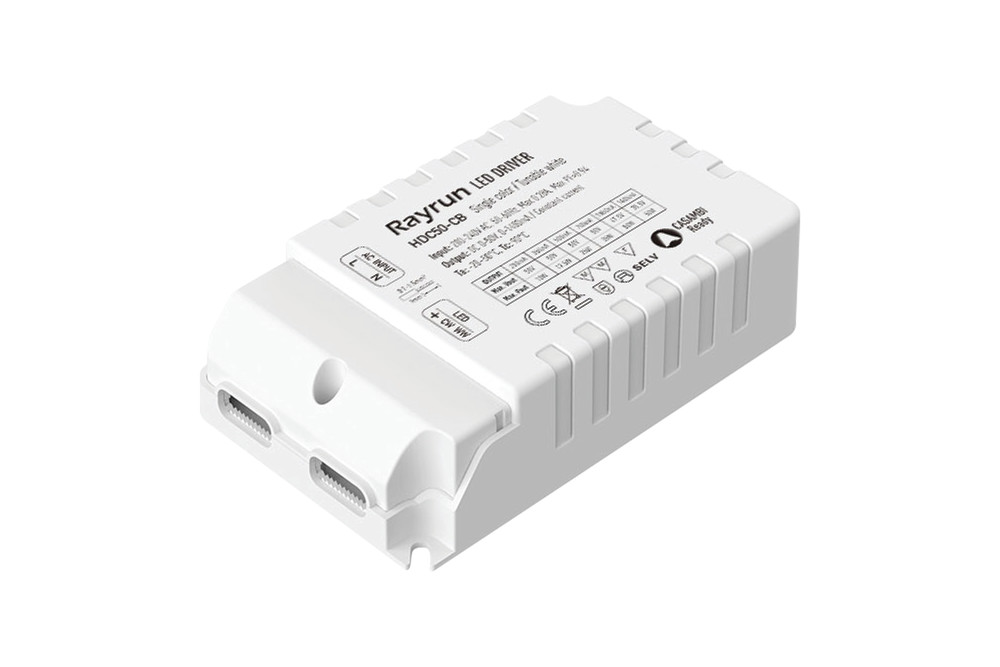

CONSTANT CURRENT DRIVER CASAMBI SINGLE-COLOUR 50W 200-1400MA IP20 0-50VDC OUTPUT
Part Number:
ILCTCAS-HDC50CB-B
Easily match the constant current, power output and operating voltage values required by your luminaire and lighting circuit with this 50W single-colour Casambi-ready constant current driver.
This product is suitable for most non-mains-operated LED luminaires including downlights, and panels.
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Adjustable Constant Current: 200-1400mA (via Casambi app)
- Product Feature 3:
- Output: 50W / 0-50VDC
- Product Feature 4:
- Suitable for Single-Colour LED Panels and downlights
- Product Feature 5:
- 100%-50% in-app current trim with 5% increments
- Product Feature 6:
- Output power: 50W
- Product Feature 7:
- Class II, SELV, Short Circuit / Over Load / Over Heat Protection
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 809819 |
|---|---|
| Barcode | 5055788287858 |
| Category | Drivers |
| Range Name | Casambi |
| Type | Constant Current |
| Product Type | Constant Current |
| Product Body Finish | Matt white |
| Market Segment | Residential Indoor, Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 130 |
|---|---|
| Product Depth (mm) | 30 |
| Product Width (mm) | 67 |
| Product Weight (g) | 165 |
| Material | Polycarbonate |
| Placement / Application | Indoor, LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 50 |
|---|---|
| Power Consumption (W) | 50 |
| Power Factor | 0.10 |
| Voltage (V) | 0-50 |
| Input Voltage (V) | 200-240VAC |
| Output Current (mA) | Adjustable |
| Output Voltage (V) | 0-50VDC |
| Dimming | Casambi-app-dimmable |
| Electric Current | AC |
| Protection Function | Short Circuit protection, Overload protection, Thermal protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 175 |
|---|---|
| Package Length (mm) | 130 |
| Package Width (mm) | 75 |
| Package Depth (mm) | 30 |
