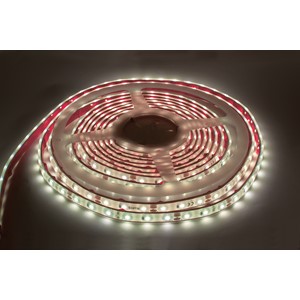

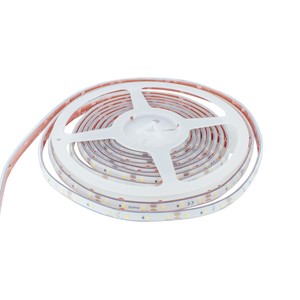

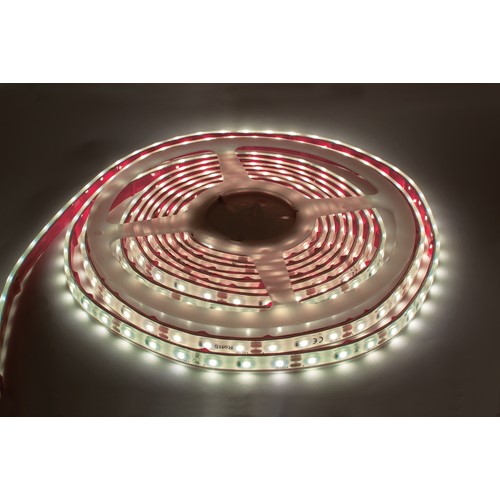

STRIP IP67 5M 4000K 12V 6W/M 400LM/M 60LED/M 10MM WIDTH 115 BEAM CRI90 BAG PACK INTEGRAL
Part Number:
ILSTWHIC108E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Rich reds, pretty pinks, gorgeous greens - This Integral LED Strip offers high colour rendering (CRI 90) to bring out the colour in any space . Your colours will appear more vibrant and better defined than with a standard LED stip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other retail products at their best.This IP67 strip is suitable for installation in bathrooms as well as outdoor installations such as garden and path lighting.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 6W per metre
- Product Feature 4:
- LED size 28:35
- Availability:
-
5
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788241393 |
|---|---|
| Quick Order Code | 496320 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 115 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIC108E_EU_label |
|---|---|
| Lumens per meter (lm/m) | 400 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°C) | 67 |
Packaging
| Barcode | 5055788241393 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 130 |
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 12 |
| Outer Carton Barcode | 05055788241416 |
| Qty per Outer Carton | 40 |
| Outer Carton Length (mm) | 458 |
| Outer Carton Width (mm) | 258 |
| Outer Carton Depth (mm) | 268 |
