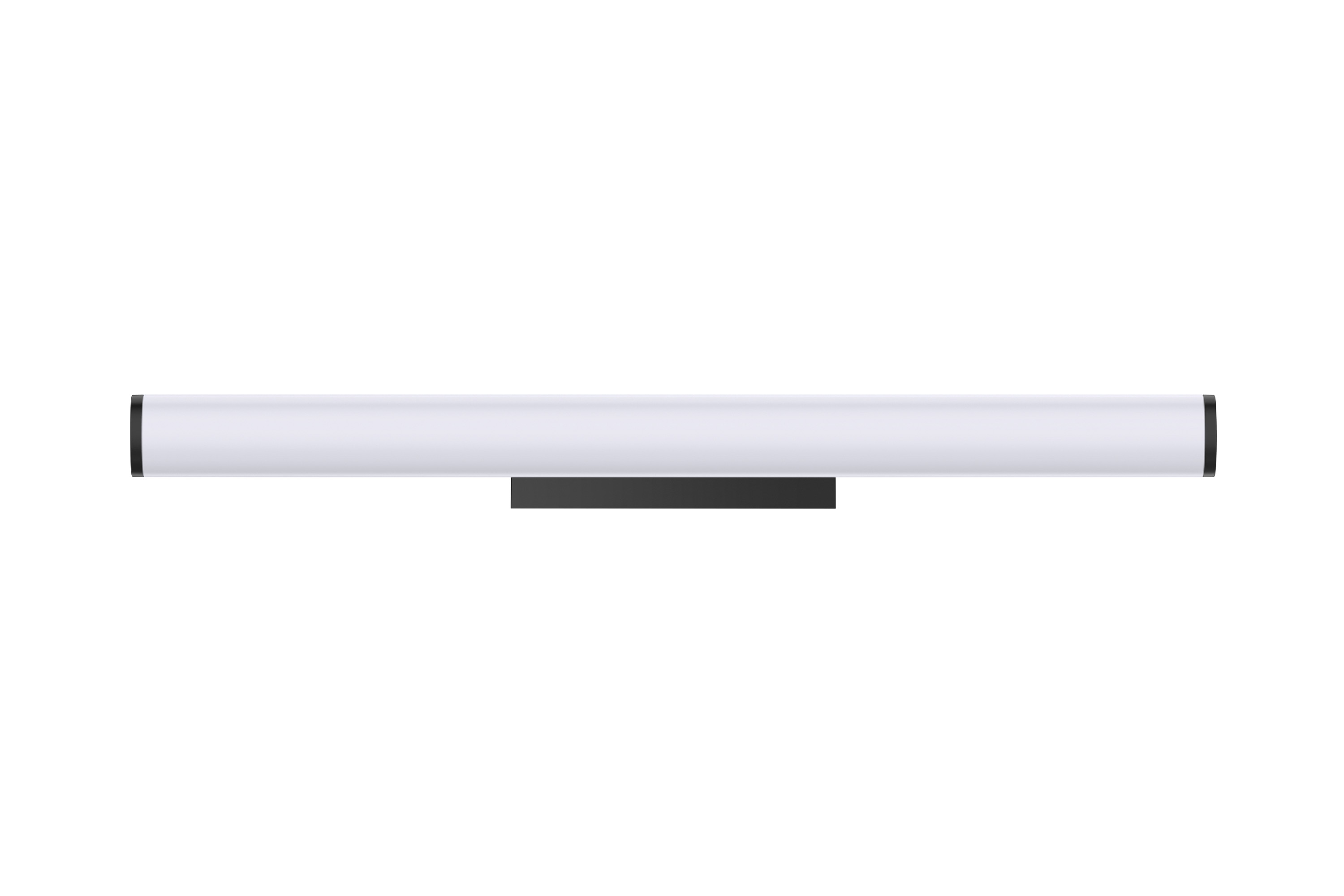

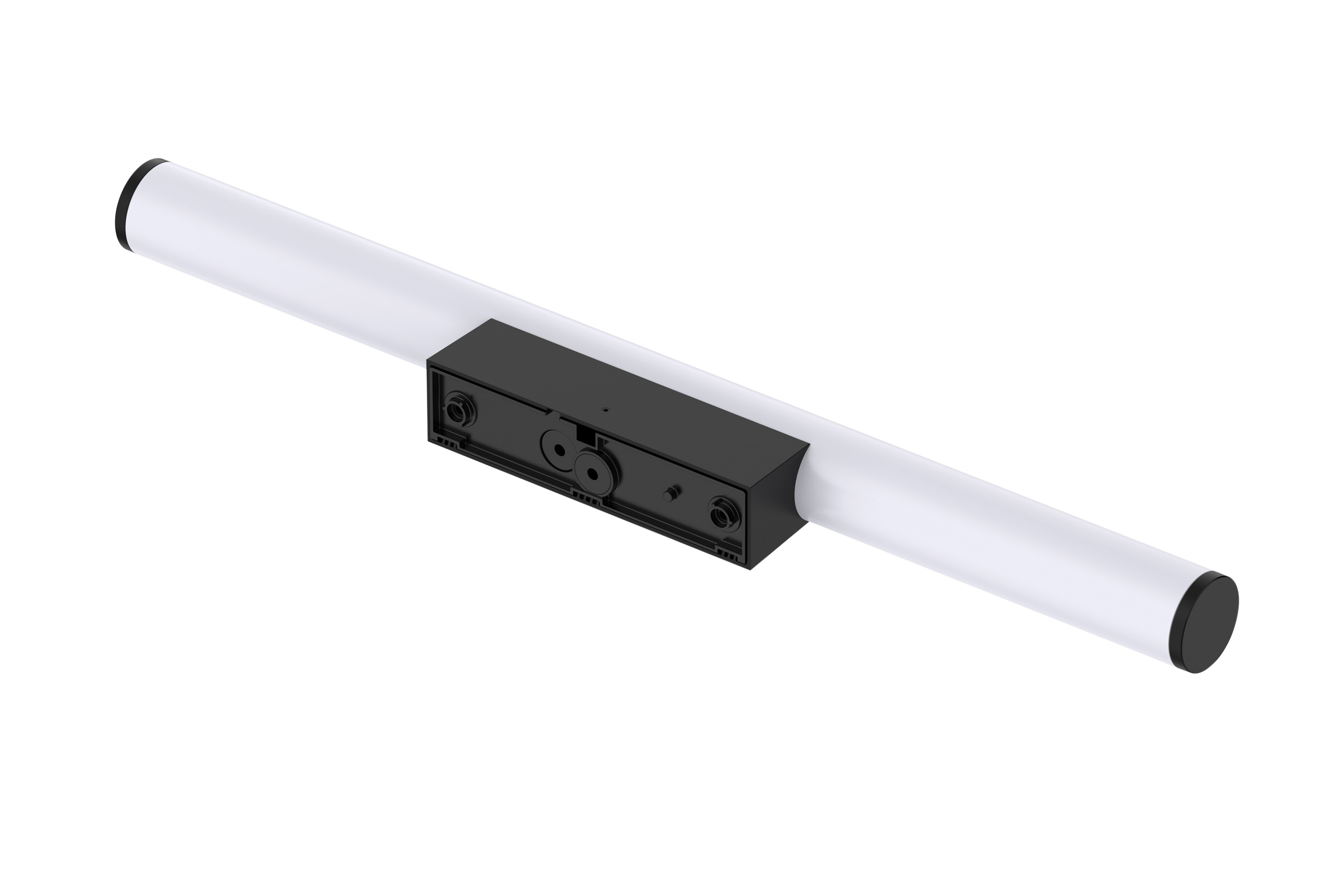

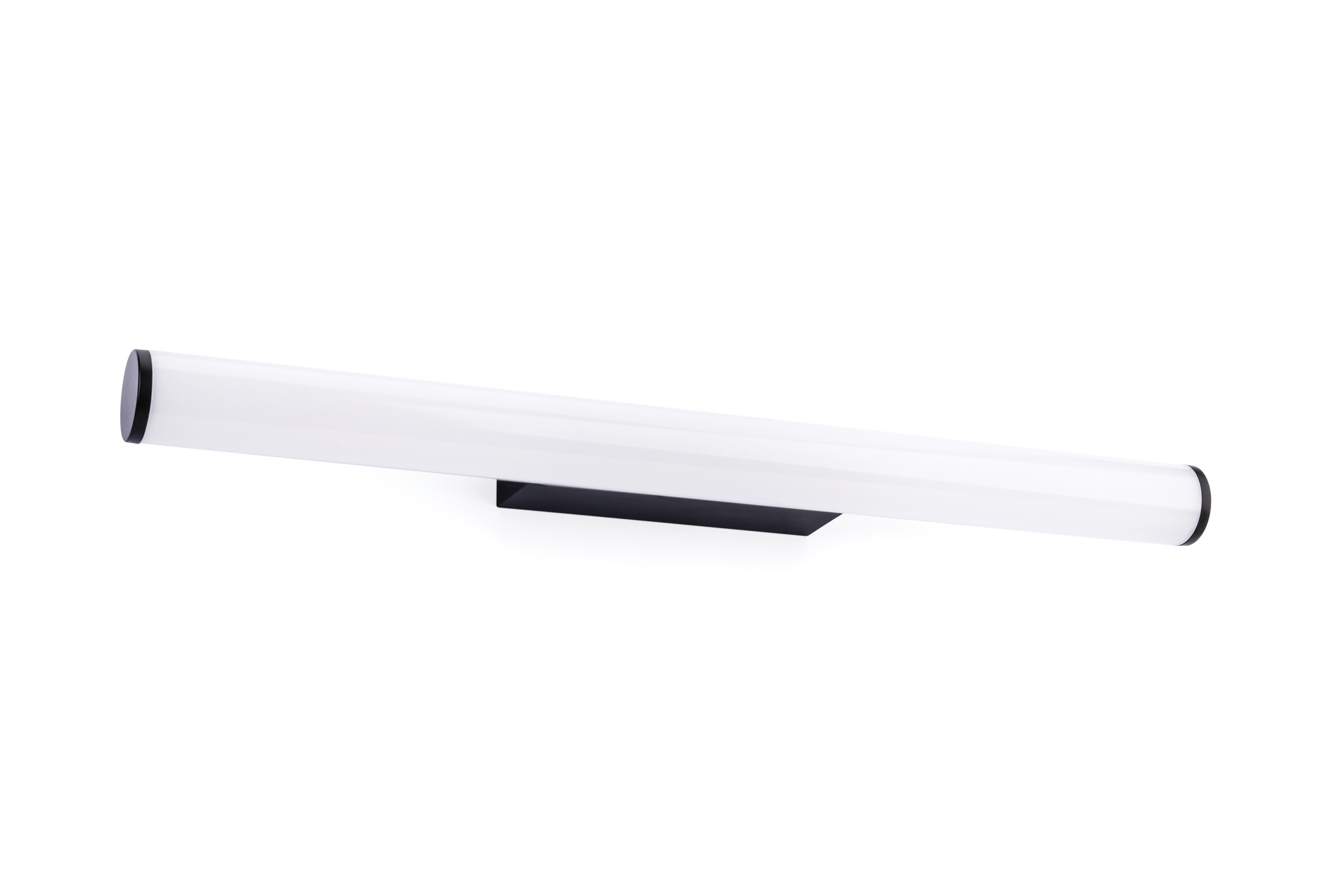

CORATO OVER MIRROR LIGHT 600MM IP44 900/1100LM 8W 3000K/4000K NON-DIMMABLE BLACK
Part Number:
ILMLA004
- Product Feature 1:
- Contemporary LED over-mirror wall light
- Product Feature 2:
- Uniform light distribution, suitable for horizontal or vertical installation
- Product Feature 3:
- CCT Switchable: 3000K / 4000K
- Product Feature 4:
- 600mm length
- Availability:
-
1
Details
| Barcode | 5056884603825 |
|---|---|
| Quick Order Code | 763786 |
| Category | Luminaires |
| Range Name | Corato |
| Product Type | Mirror Light |
| Product Body Finish | Black |
| Market Segment | Commercial indoor, Residential indoor |
| Features | CCT Switchable |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 600 |
|---|---|
| Product Depth (mm) | 80 |
| Product Width (mm) | 80 |
| Product Weight (g) | 550 |
| Diameter (mm) | 600 |
| Optic | PC |
| Material | Plastic, Polycarbonate |
| Overall diameter (mm) | 600 |
| Construction | Plastic base and PC diffuser |
| Bulb or Luminaire Shape | Tubular |
| Luminaire Fixing | Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear cable entry |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 900 to 1100 |
|---|---|
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 (CCT Switchable) |
| Colour Temperature | 3000/4000 - Warm White / Cool White |
| Colour Temperature Name | Warm White, Cool White |
| Beam Angle | 160 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 8 |
|---|---|
| Power Consumption (W) | 8 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884603825 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 750 |
| Package Length (mm) | 620 |
| Package Width (mm) | 97 |
| Package Depth (mm) | 66 |
| Outer Carton Barcode | 05056884603832 |
| Qty per Outer Carton | 12 |
| Outer Carton Length (mm) | 645 |
| Outer Carton Width (mm) | 305 |
| Outer Carton Depth (mm) | 290 |
Safety Guide
ILMLA004_3000K_8W
