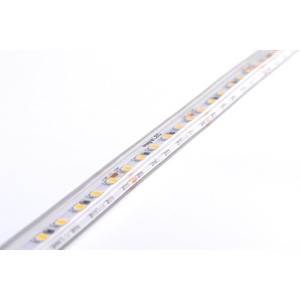

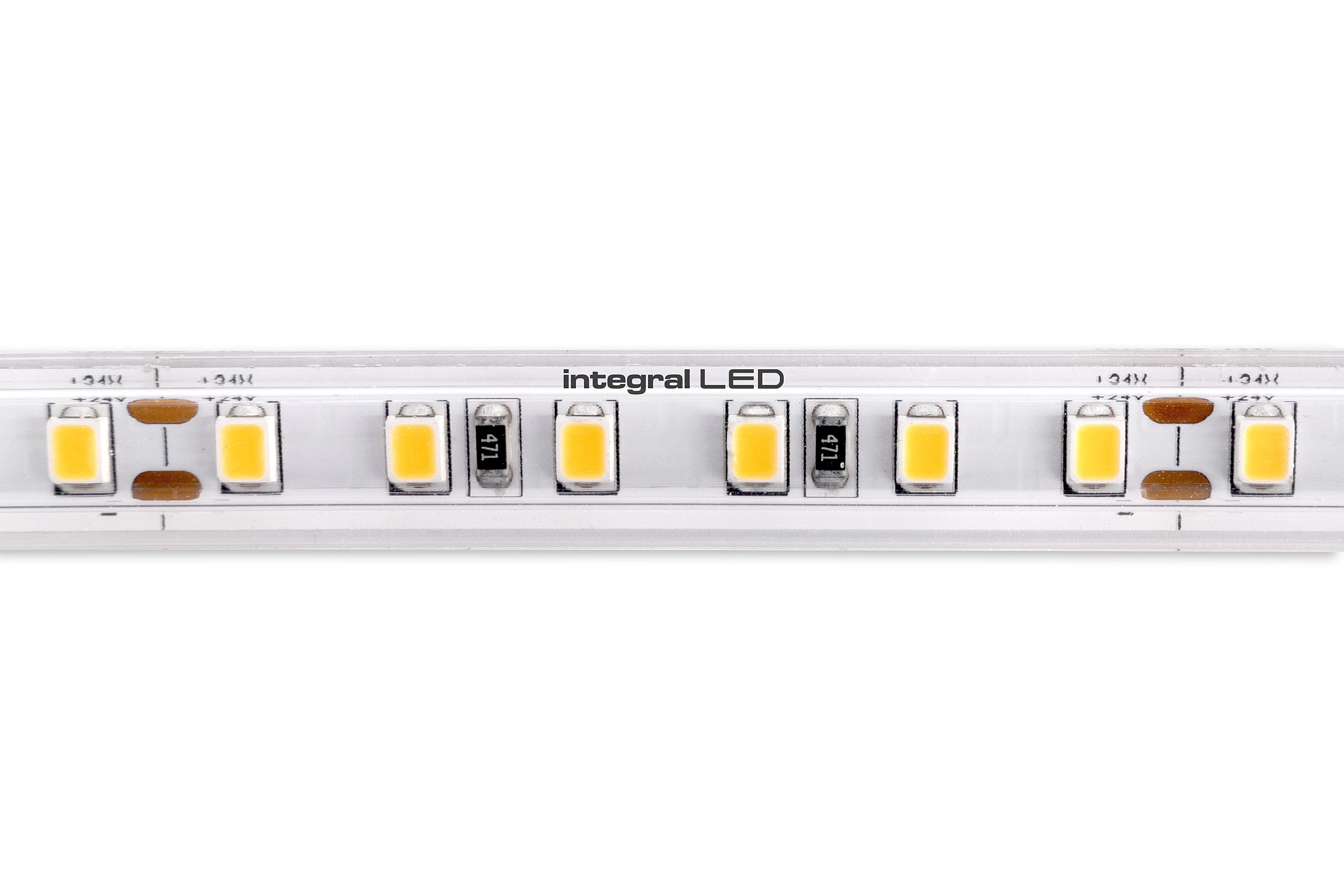

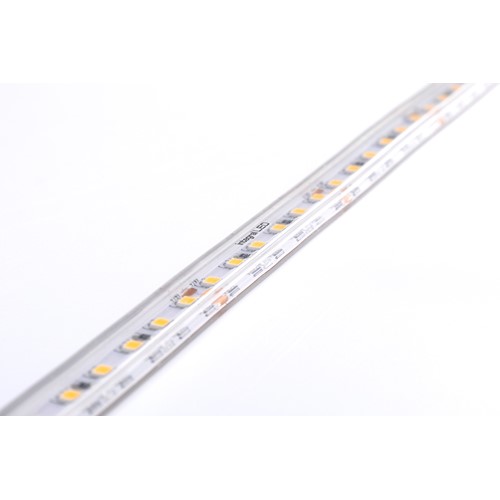

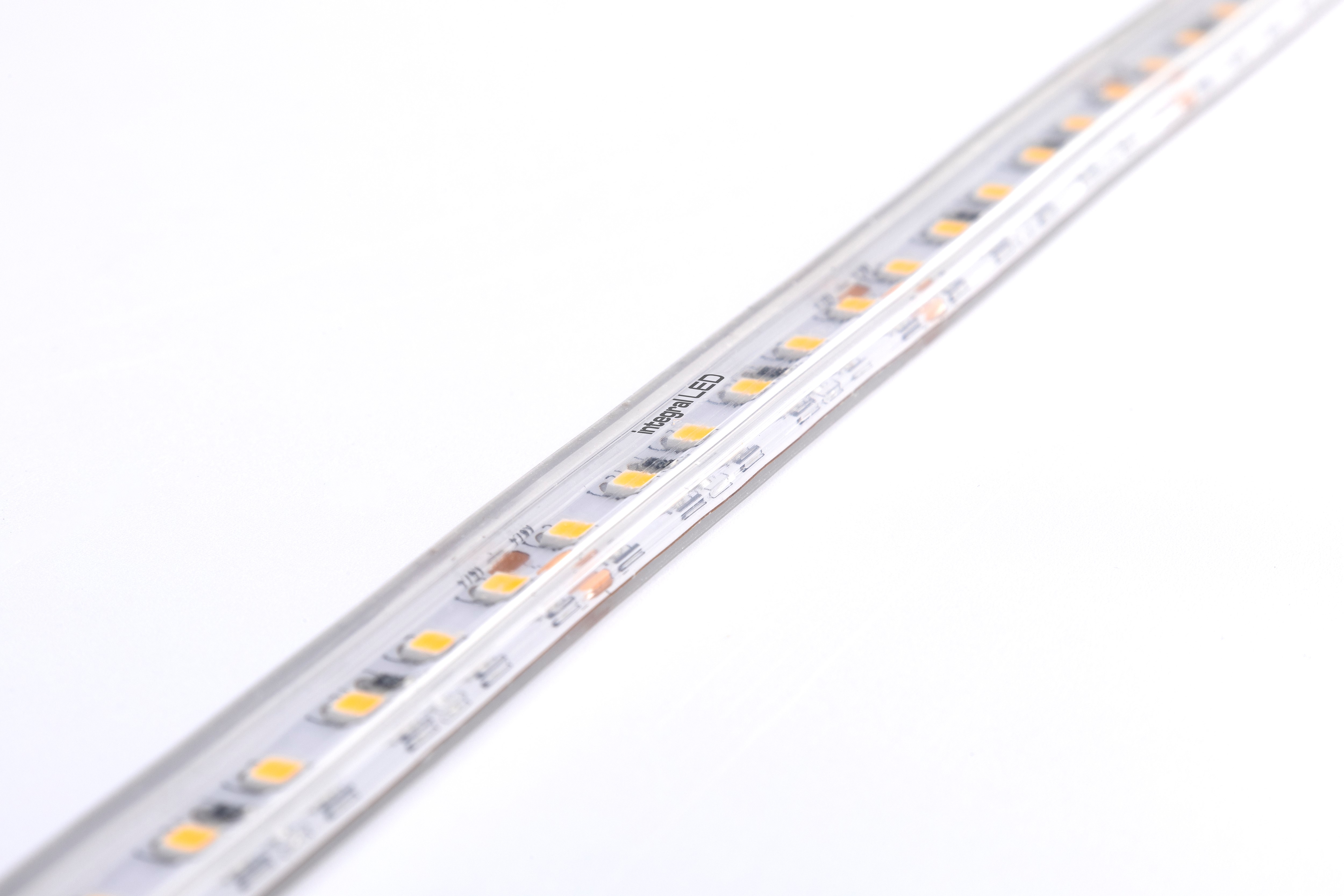

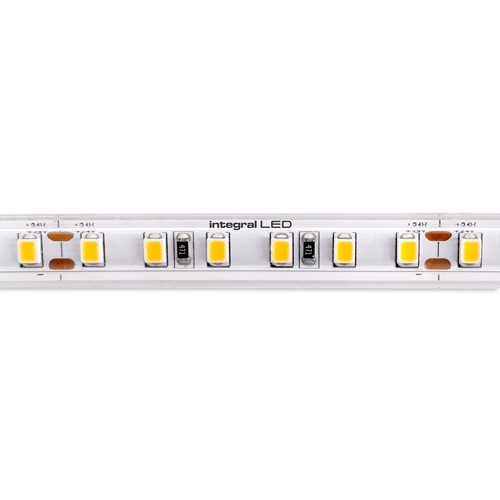

ULTRALONG MAX20 CORE IP67 3000K LED STRIP 14.5MM TAPE 890LM/M 24V 11W/M QUANTITY PER METRE INTEGRAL
Part Number:
ILSTWHIC910EM
Please order by the metre for each separate length you require.
- Product Feature 1:
- Order up to 20m but note, the max run length is 20m
- Product Feature 3:
- 11W per metre
- Product Feature 4:
- IP67
- Availability:
-
34
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788319191 |
|---|---|
| Quick Order Code | 667406 |
| Category | Strips |
| Range Name | Core |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor, Outdoor |
| Features | Ultralong |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 1000 |
|---|---|
| Product Width (mm) | 14.5 |
| Product Weight (g) | 0.005 |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 41.67 |
| Max Run Length (m) | 20 |
| Placement / Application | Decorative indoor, outdoor |
| Strip length (M) | Order by the metre |
| Strip Width (mm) | 14.5 |
Light Data
| Luminous efficacy (lm/W) | 81 |
|---|---|
| Lumens per meter (lm/m) | 890 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 120 |
| Lifetime (hours) | 36000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 11 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788319191 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 32.8 |
| Package Length (mm) | 245 |
| Package Width (mm) | 235 |
| Package Depth (mm) | 12 |
Safety Guide
ILSTWHIC910EM
