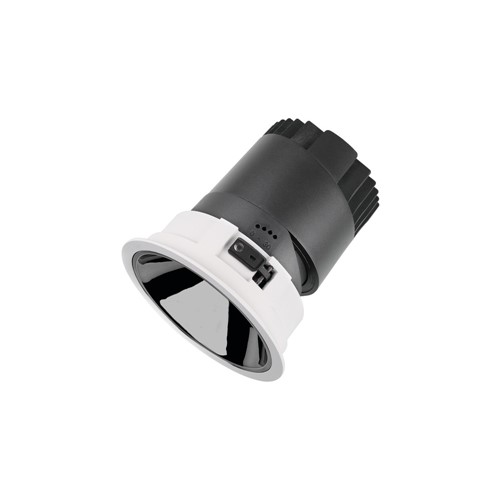

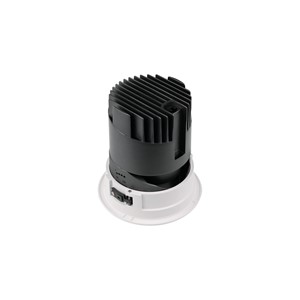

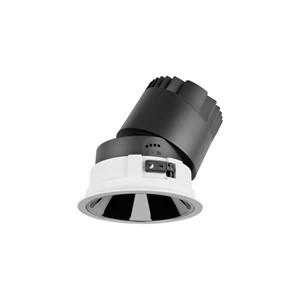

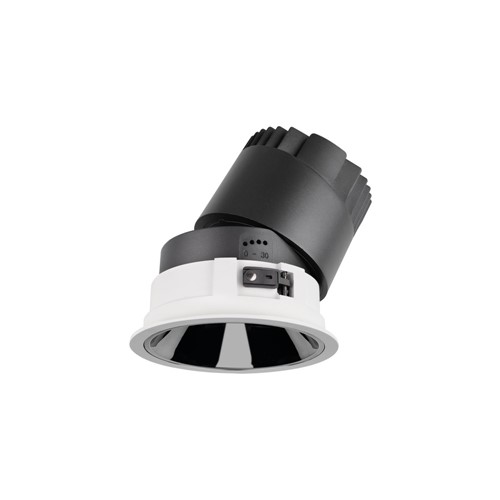

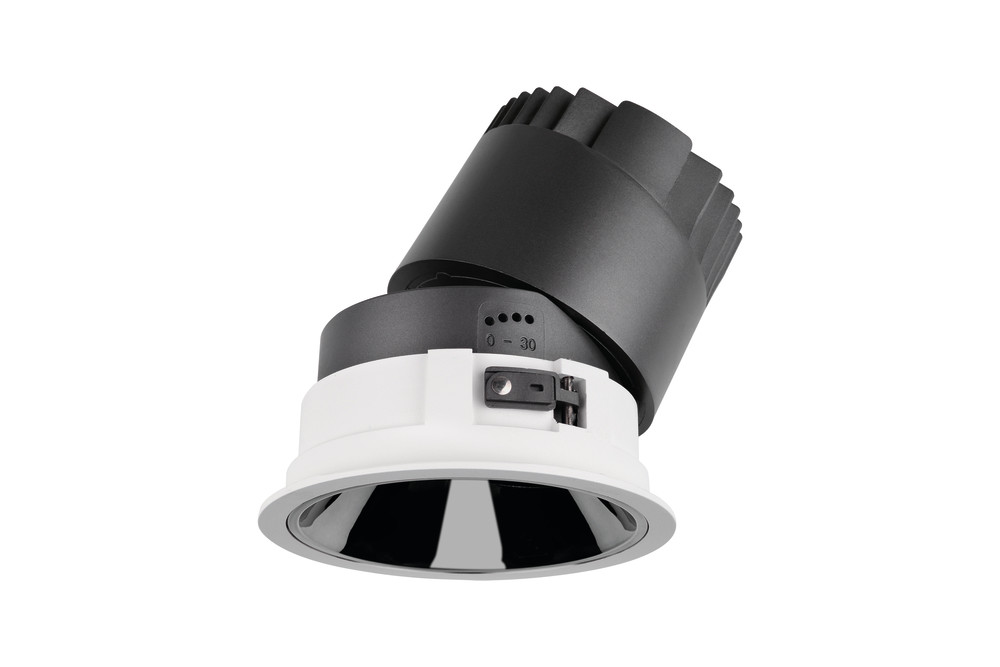

ACCENTPRO LED DOWNLIGHT 24 DEG BEAM ANGLE 120MM CUTOUT 30 DEG TILTABLE 355 DEG ROTATABLE 25W 1725LM 66LM/W 3000K CRI90 MIRROR SILVER ROUND 34VDC 600MA WITHOUT DRIVER

Part Number:

ILDL120P012

Integral’s AccentPro family offers a professional range of customizable accent downlights ideal for commercial, retail, display, and museum spaces. The recessed “Darklight” technology means the fittings blend seamlessly into architectural lighting projects, and a variety of drivers (sold separately) offers solutions for all the popular dimming and control systems on the market.

Each size of AccentPro has a choice of coloured reflector and trimless plaster in mount accessories (see suggested products below) to produce the perfect desired look.

Product Feature 1:
Driver Not included
Product Feature 2:
24 degree beam angle
Product Feature 3:
Low glare from deep recessed design
Product Feature 4:
Focussed light direction (30° tiltable, 355° rotatable)
Product Feature 5:
Customised premium look with multiple reflector options
Product Feature 6:
Plaster in mounting accessory available
Product Feature 7:
Optional drivers for non-dim, DALI, 0-10V, push dim and Casambi app enabled (on request)
Product Feature 8:
Special orders welcomed
Availability:
72

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 696552
Barcode 5055788269113
Category Downlights
Range Name AccentPro
Product Body Finish Matt white
Market Segment Accent lighting
Fixed/Tiltable Tiltable
Warranty (Years) 3
Emergency Option No
Product Length (mm) 155
Product Depth (mm) 132
Product Width (mm) 132
Product Weight (g) 1110
Optic PC
Material Aluminium
Overall diameter (mm) 132
Construction extruded Aluminium
Cut Out Diameter (mm) 120
Bulb or Luminaire Shape Round
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Spot Type COB
Energy Efficiency Label (Image) ILDL120P012_EU_label
Luminous Flux in Lumens (lm) 1725
Luminous efficacy (lm/W) 69
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 24
Colour Rendering Index (CRI) 90
Instant on (Less than 1 second) Yes
Integrated Light Source Yes
LED Type Chip on board (COB)
Lifetime (hours) 50000
Power Consumption (W) 25
Amperage (mA) 600
Input Voltage (V) 34
Dimming Dimmable with dimmable drivers and compatible dimmers
Driver Included No
Electric Current DC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating G
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 35
Package Weight (g) 1150
Package Length (mm) 145
Package Width (mm) 150
Package Depth (mm) 111

Product Specification Sheet

Safety Guides

Installation Guides
