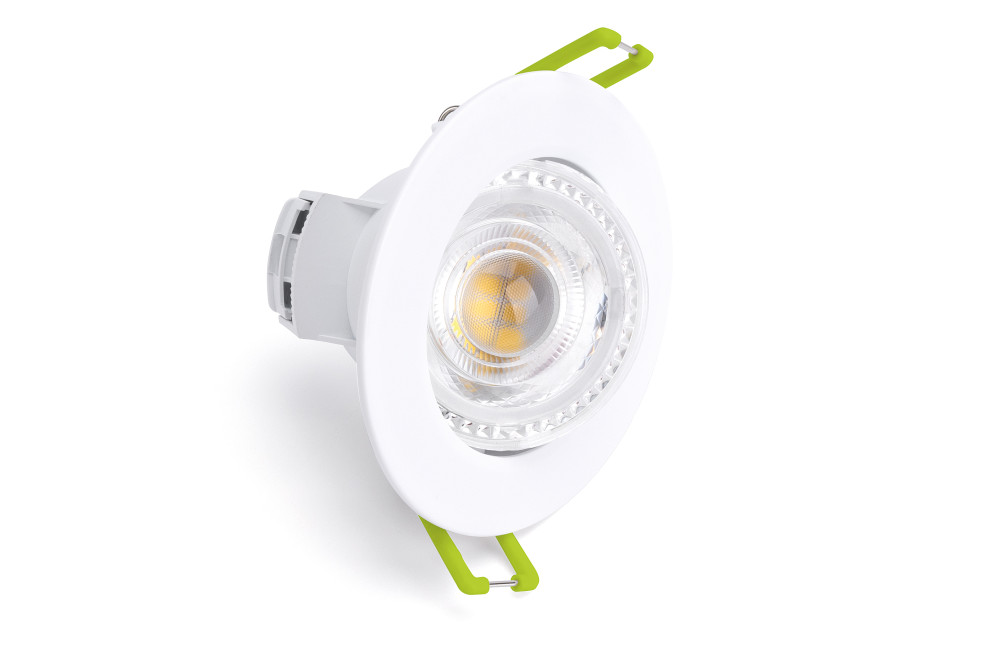

COMPACT ECO LED DOWNLIGHT IP44 30 DEG TILTABLE DIM2WARM/CCT SWITCH 5.5W 550LM 1800K TO 2700K 100LM/W 38 DEG BEAM DIMMABLE 68MM CUT OUT
Part Number:
ILDL68G014

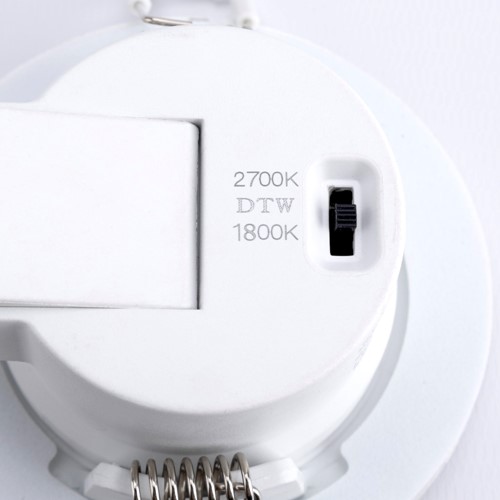

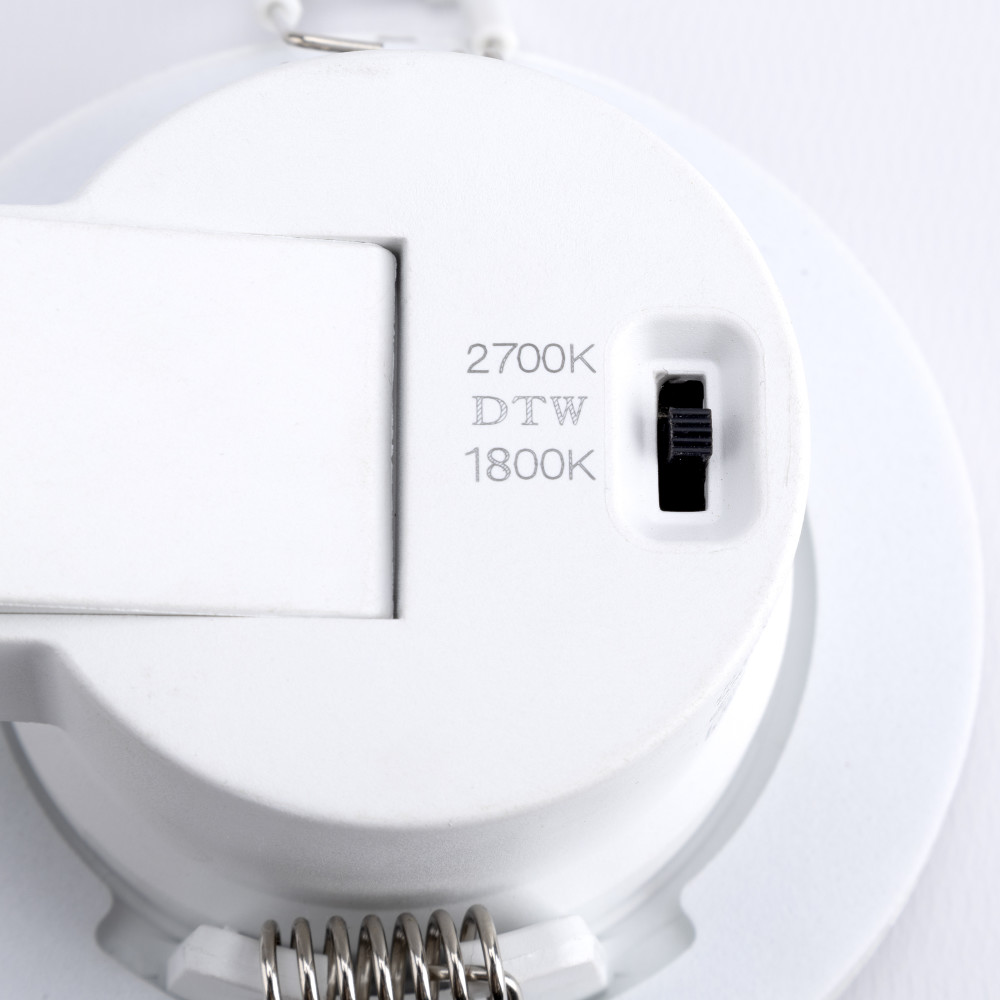

Create a cosy ambience in any space with WarmTone technology, which gradually lowers the colour temperature as the light is dimmed—shifting from a warm 2700K to an ultra-warm 1800K.

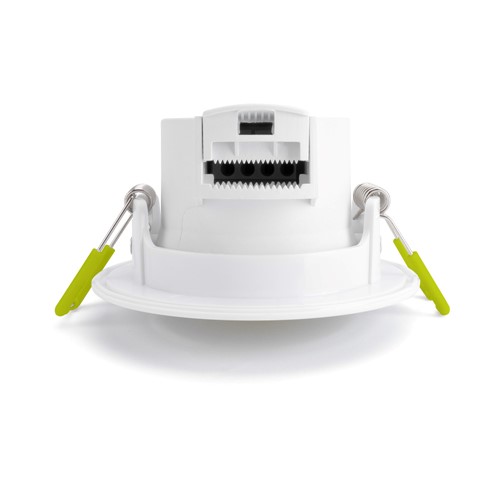

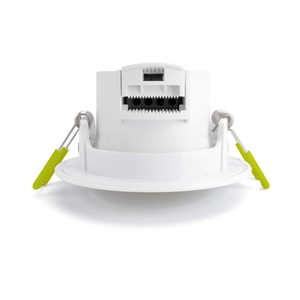

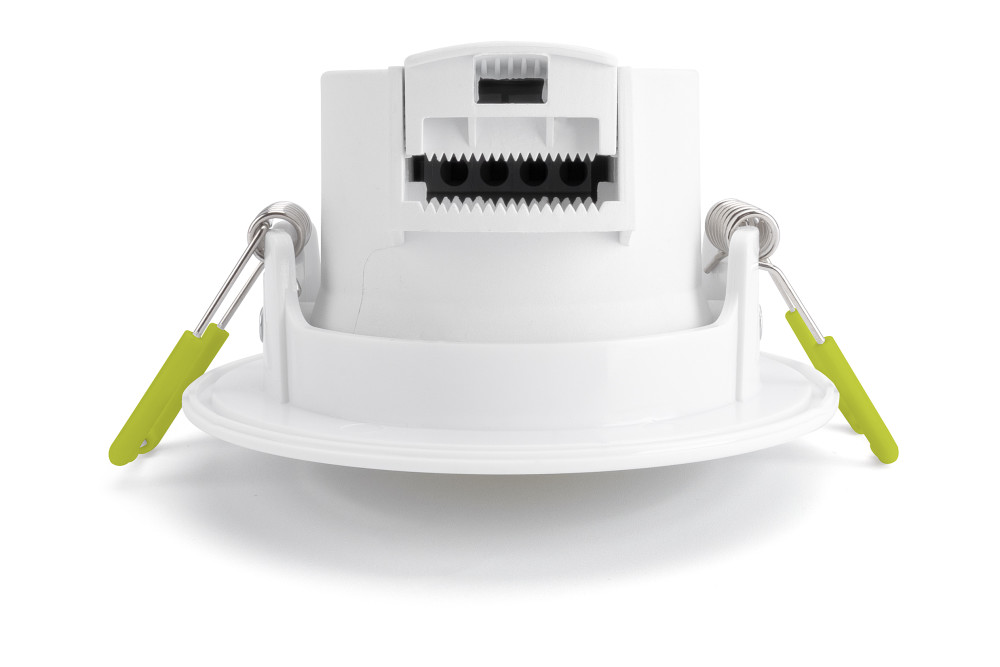

The Compact Eco range offers durable, efficient, and versatile downlights suitable for both residential and commercial applications. The tilt function allows light to be directed exactly where needed whilst the low-profile design and in-built tool-free loop-in, loop-out terminal block make installation quick and easy, even in shallow ceiling voids. Each downlight is equipped with an in-built dimmable driver and features IP44 water and dust resistance, ensuring reliable performance in various environments.
- Product Feature 1:
- IP44 Suitable for bathrooms
- Product Feature 2:
- Dimmable as standard
- Product Feature 3:
- Loop in-out terminals
- Product Feature 4:

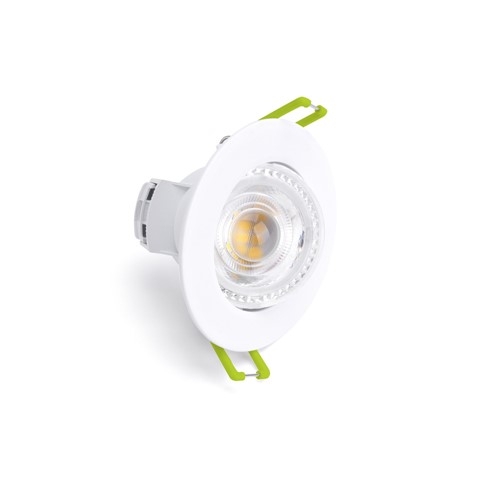

- Tiltable 30°
- Availability:
-
0
More stock due in on 23/12/2024
Suggested products
Details
| Quick Order Code | 558514 |
|---|---|
| Barcode | 5055788301455 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Dim-to-Warm |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 47 |
| Product Weight (g) | 85 |
| Material | Plastic |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 550 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 1800-2700 |
| Colour Temperature | CCT Tunable |
| Colour Temperature Name | Ultra Warm to Warm White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 455 |
Electrical Data
| Power Consumption (W) | 5.5 |
|---|---|
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 110 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 90 |
