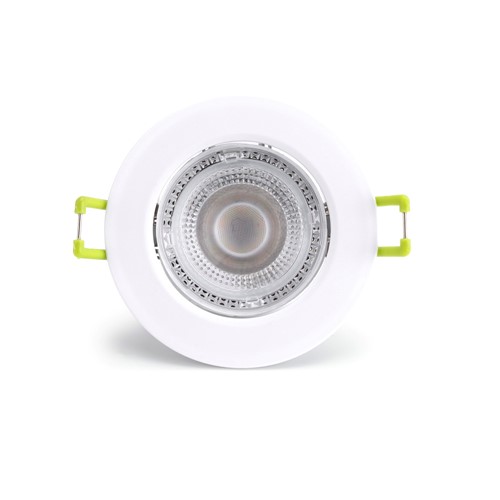

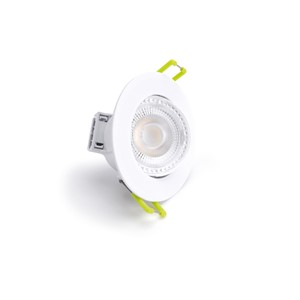

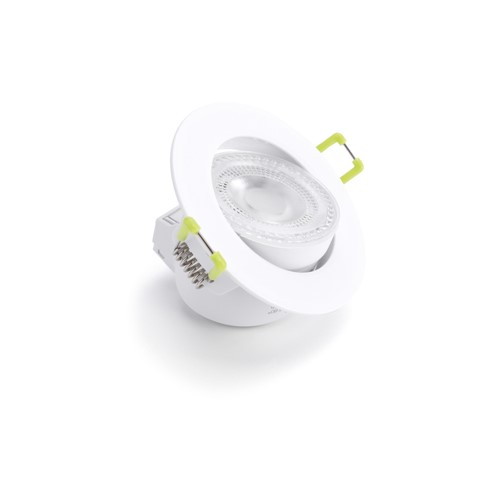

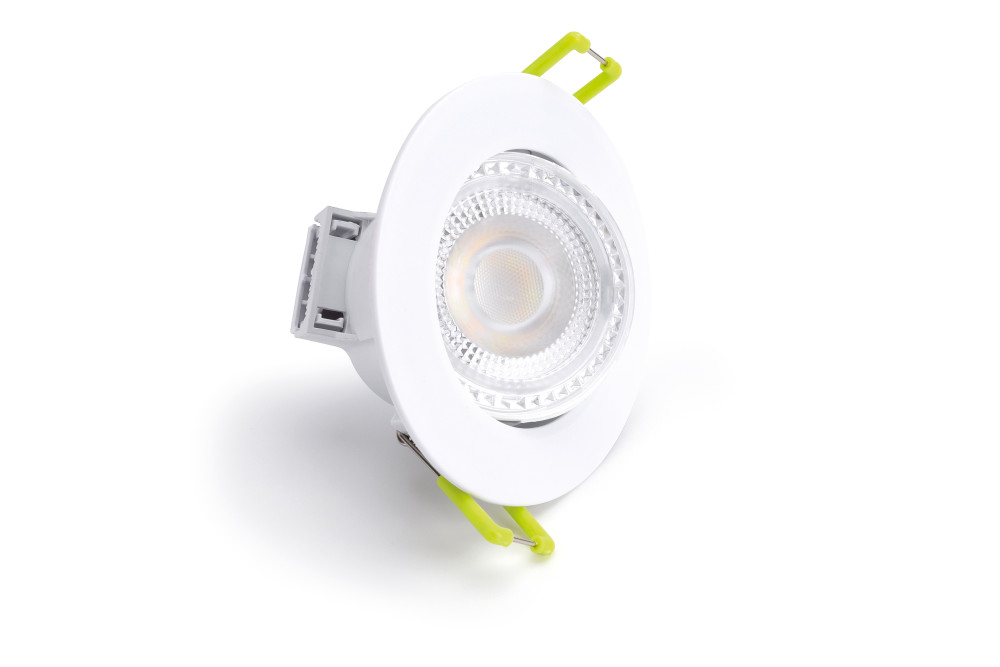

COMPACT ECO LED DOWNLIGHT IP44 30 DEG TILTABLE TUYA RGBW 4.8W 350LM RGB/2700 TO 6500K 75LM/W 60 DEG BEAM DIMMABLE 68MM CUT OUT
Part Number:
ILDL68G012
Compact Eco is a range of hard wearing, efficient and versatile downlights suitable for many residential and commercial applications.
Complete with in-built Tuya functionality, the Compact Eco Smart model offers dimmable, tuneable, white and full RGB colour changing, all controlled through the convenient and intuitive Tuya smartphone app. Tuya allows management of individual light sources as well as groups of lights, along with scene setting, voice activation with Amazon Alexa and Google Home devices and more.

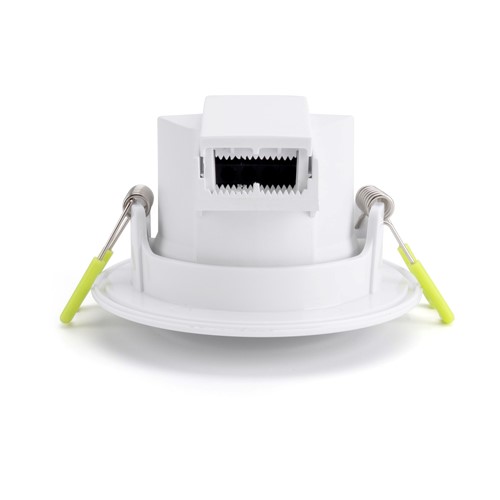

Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and in-built tool-free loop-in, loop-out terminal block.
- Product Feature 1:
- IP44 Suitable for bathrooms
- Product Feature 2:
- Tuya Smart RGBW
- Product Feature 3:
- Dimmable as standard
- Product Feature 4:
- Loop in-out terminals
- Product Feature 5:
- Tiltable 30°
- Availability:
-
0
More stock due in on 23/12/2024
Suggested products
Details
| Quick Order Code | 365824 |
|---|---|
| Barcode | 5055788301431 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | RGB + White |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 47 |
| Product Weight (g) | 85 |
| Material | Plastic |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 350 |
|---|---|
| Luminous efficacy (lm/W) | 75 |
| Correlated Colour Temperature (CCT) (K) | RGBW |
| Colour Temperature | 2700-6500K+RGB |
| Colour Temperature Name | RGBW |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | TUYA Dimming |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 270 |
Electrical Data
| Power Consumption (W) | 4.8 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 110 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 90 |
Safety Guide
ILDL68G012
