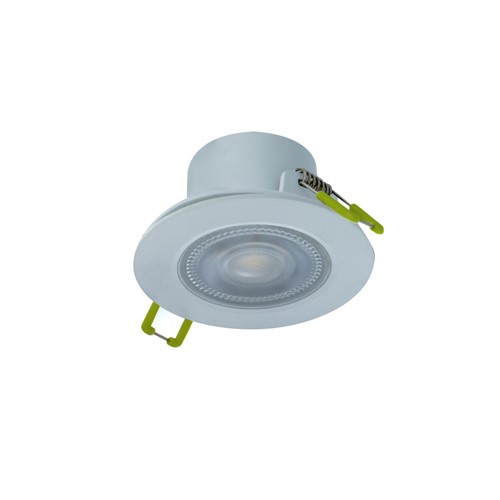

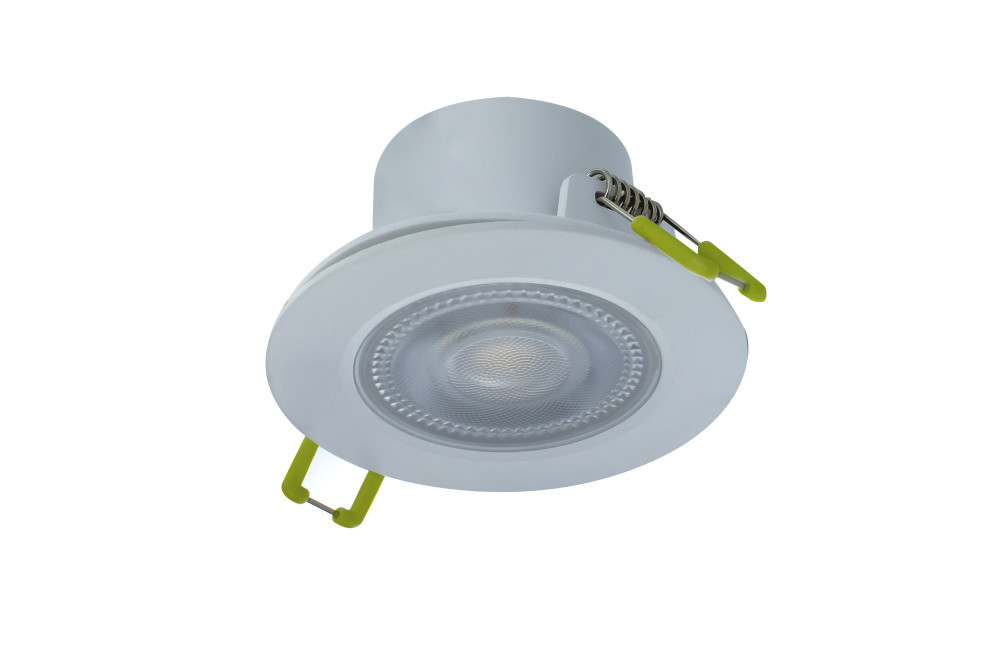

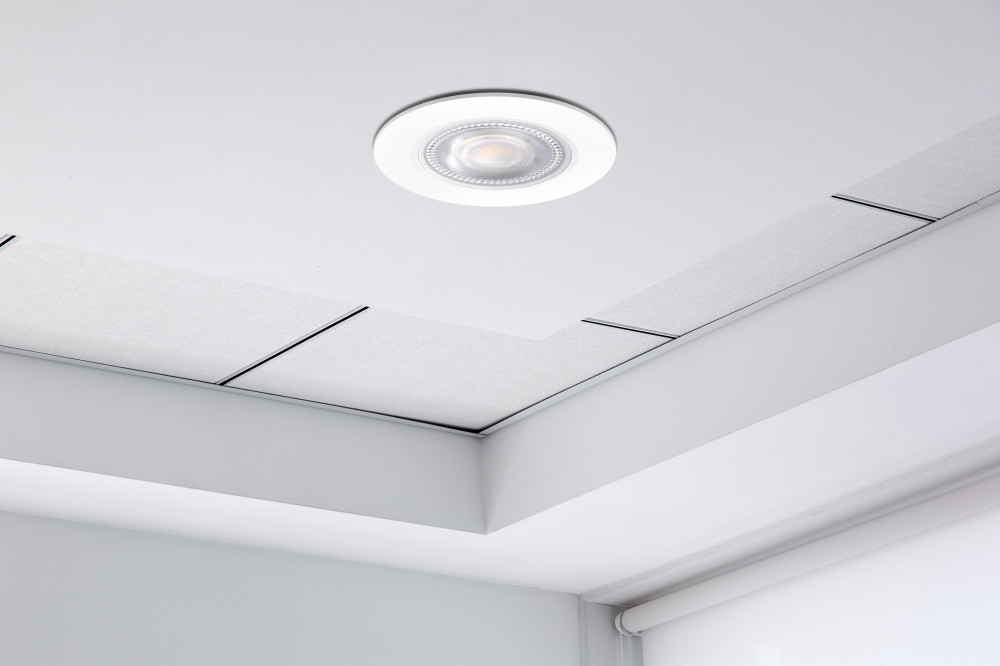

COMPACT ECO LED DOWNLIGHT IP65 FIXED 5.5W 550LM 3000/4000/6500K SWITCHABLE CCT 100LM/W 38 DEG BEAM DIMMABLE 68MM CUT OUT
Part Number:
ILDL68G003

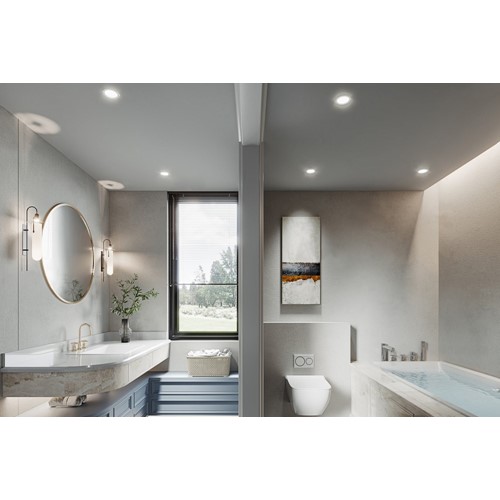

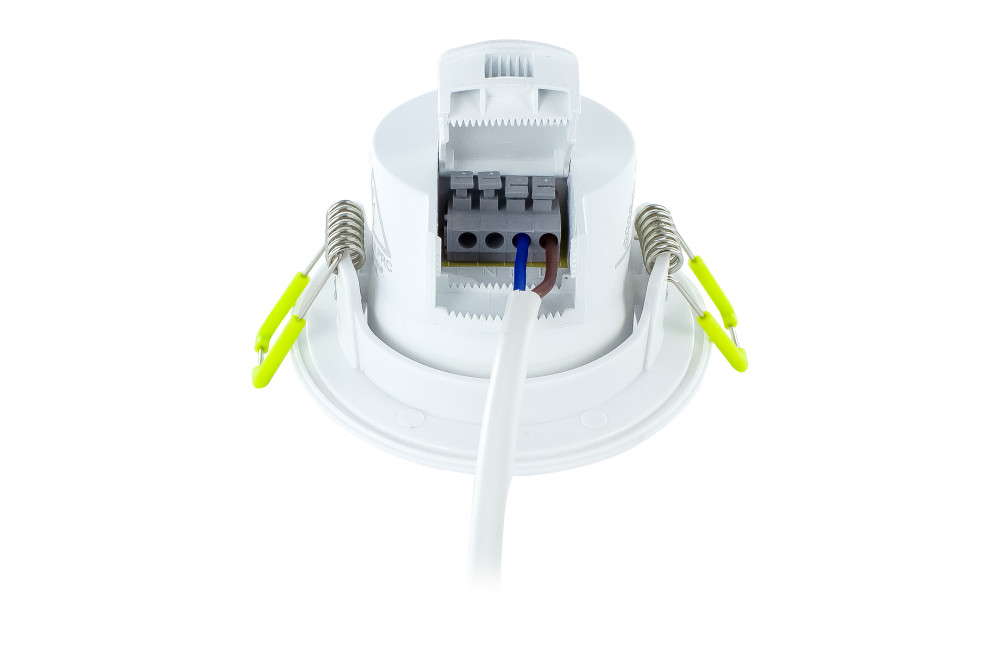

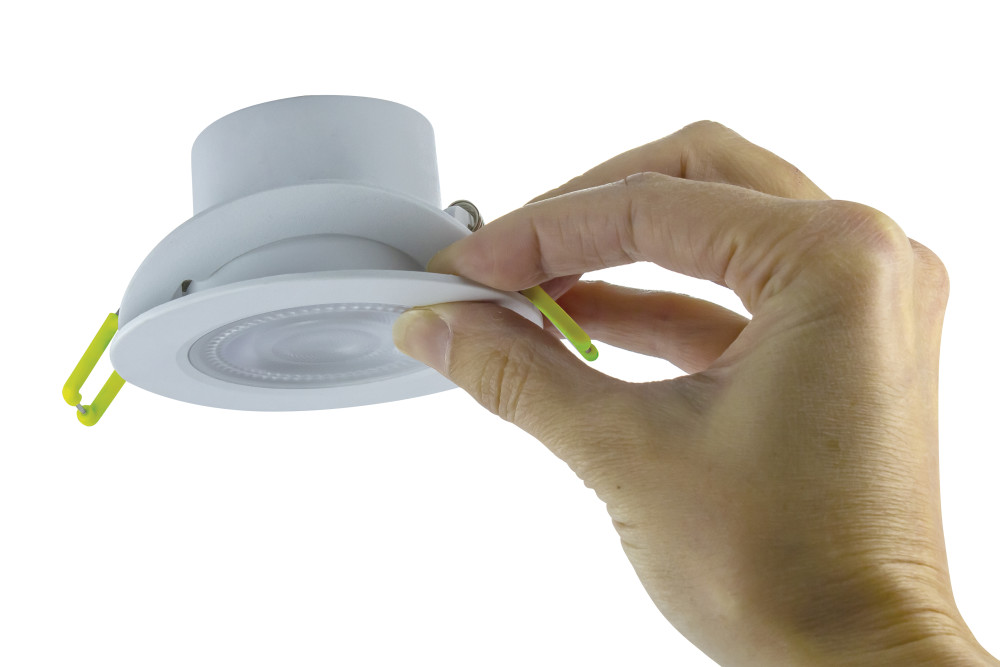

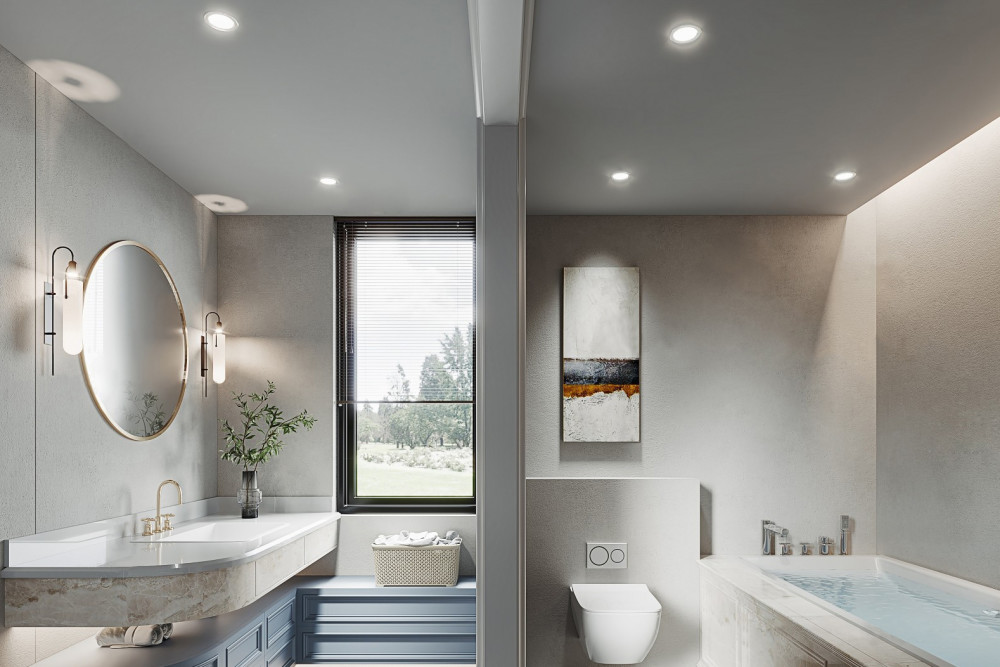

Compact Eco is a range of hard wearing, efficient and versatile downlights suitable for many applications including wet areas of buildings in a variety of sectors including shops and residential. Installation is made easy with tool-free loop in-out terminal blocks, and the range comes with a CCT switching and tiltable options, and interchangeable bezels to fit multiple environments. See suggested products section below for accessories.
- Product Feature 1:
- IP65 Suitable for wet areas
- Product Feature 2:
- Dimmable as standard
- Product Feature 3:

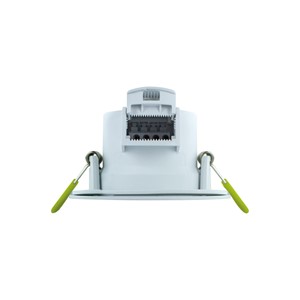

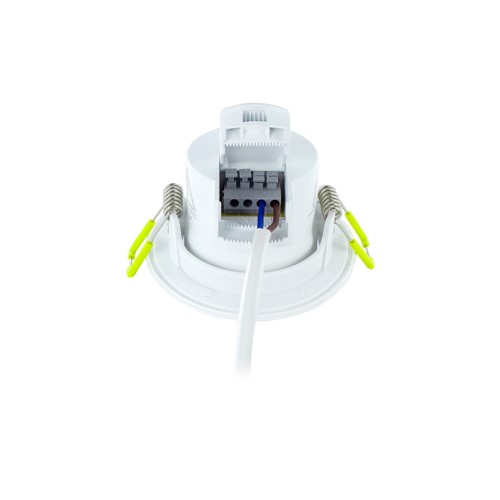

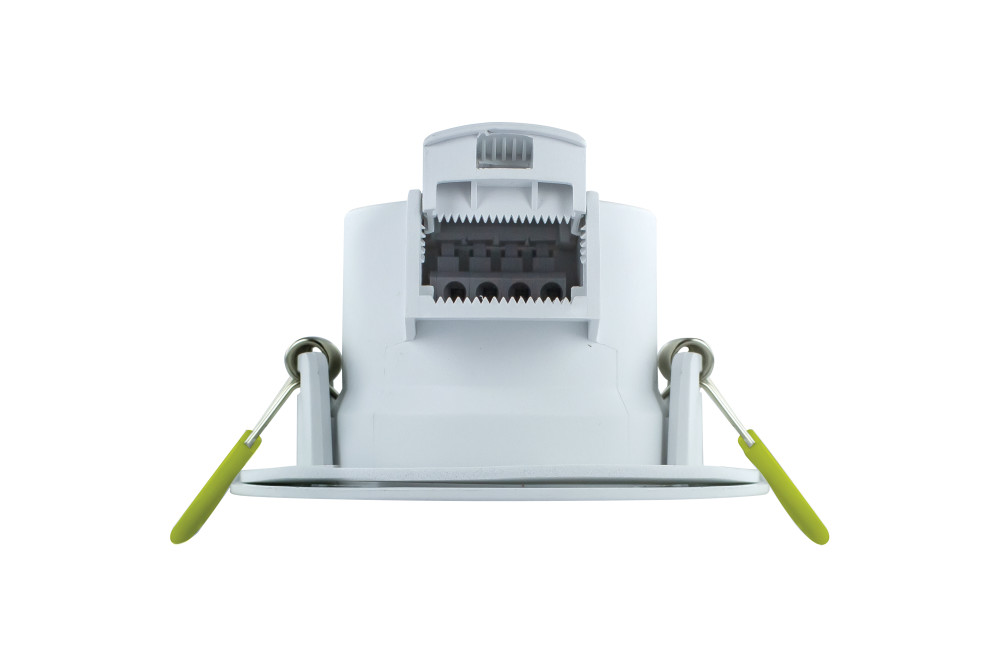

- Loop in-out terminals
- Availability:
-
300+
More stock due in on 25/02/2025
Suggested products
Details
| Quick Order Code | 220413 |
|---|---|
| Barcode | 5055788281917 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | CCT Switchable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |

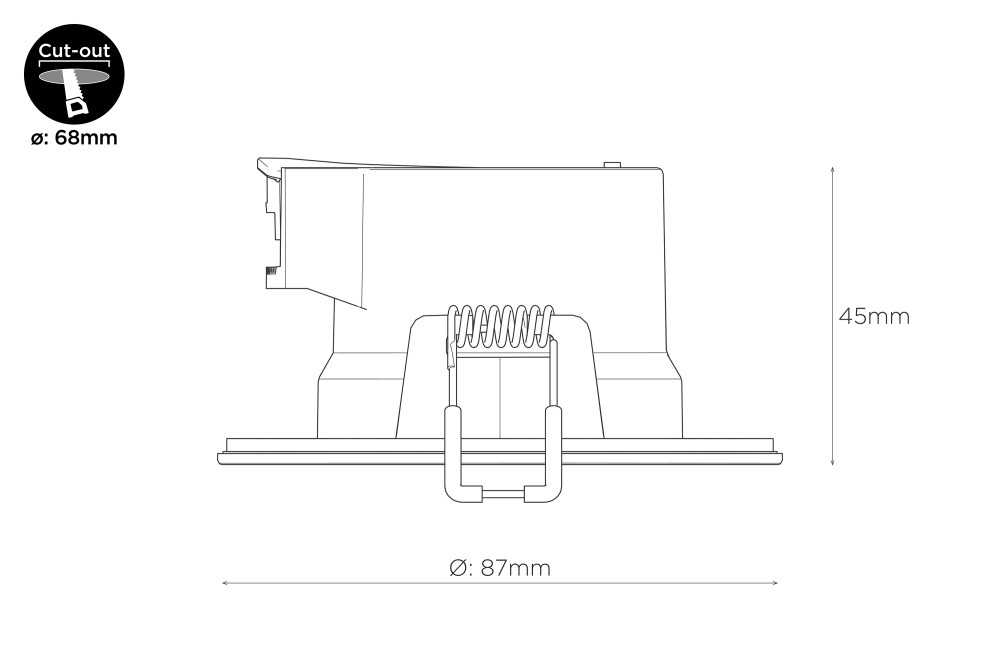

Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|

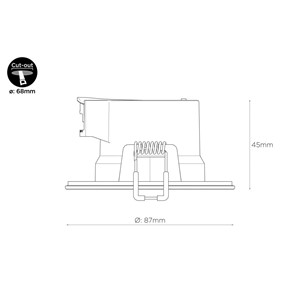

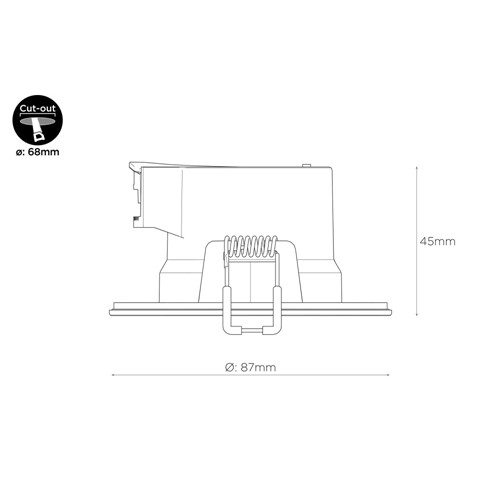

| Product Depth (mm) | 45 |
| Product Weight (g) | 85 |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 550 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
Electrical Data
| Power Consumption (W) | 5.5 |
|---|---|
| Power Factor | 0.6 |
| Voltage Range (v) | 220-240 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 98 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 53 |
| Qty per euro pallet | 1296 |
