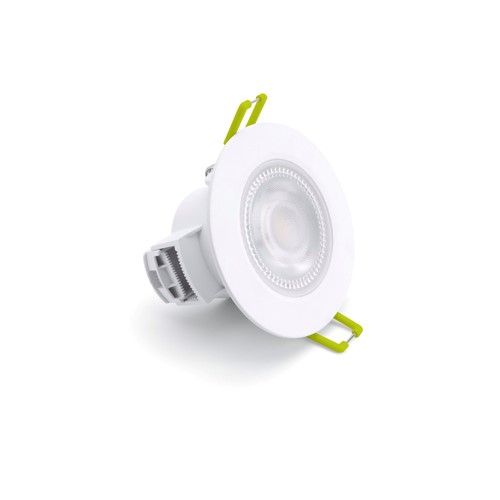

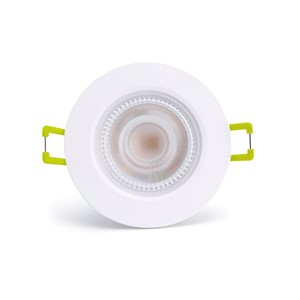

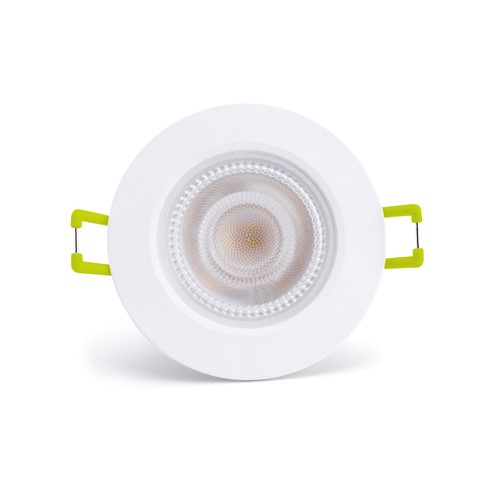

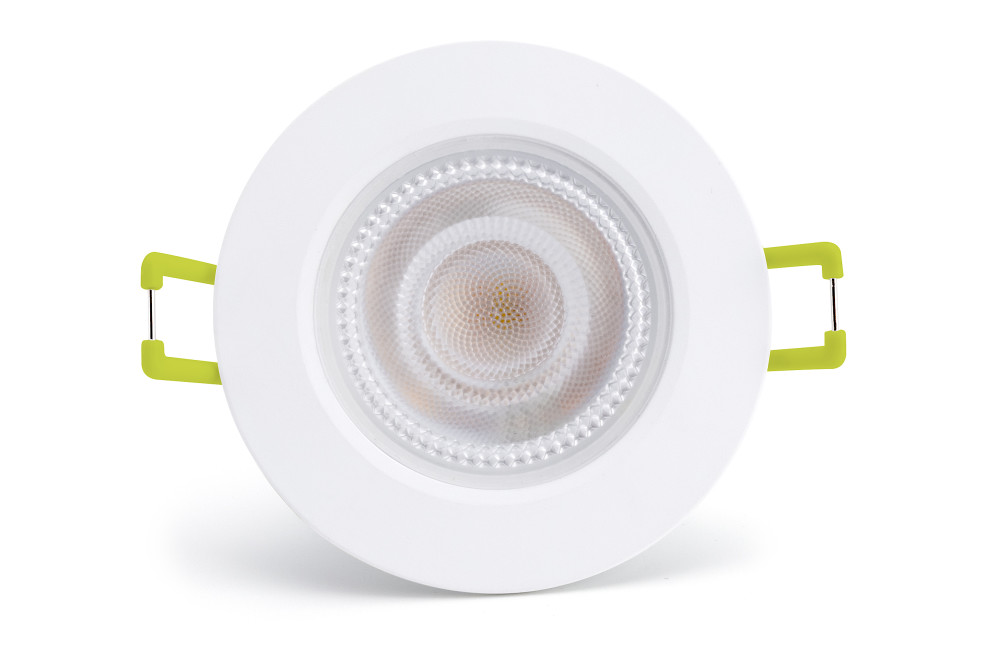

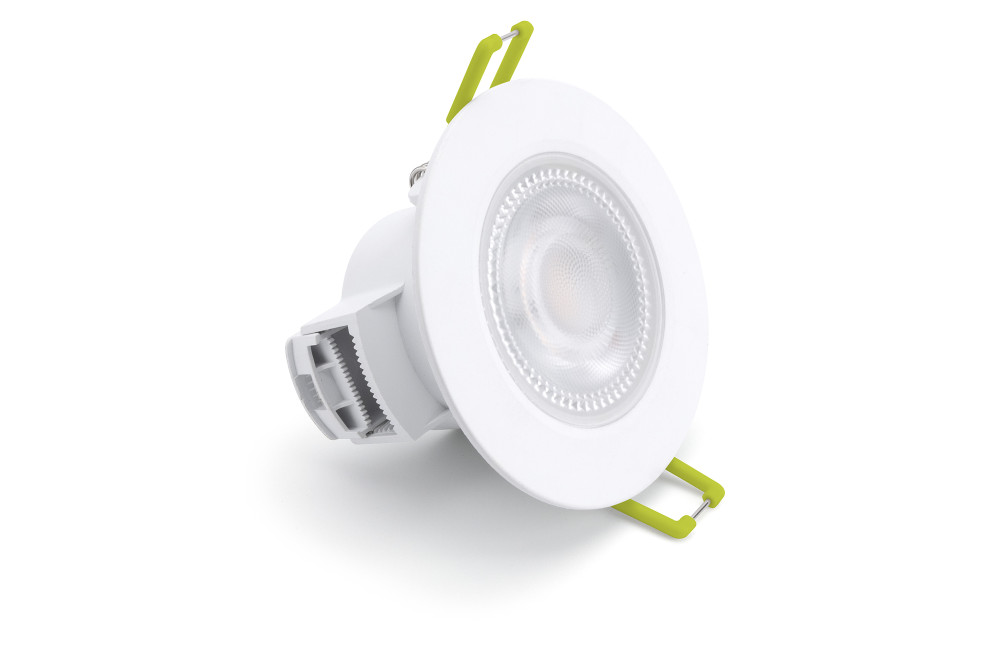

COMPACT ECO LED DOWNLIGHT IP65 FIXED DIM2WARM/CCTSWITCH 5.5W 550LM 1800K TO 2700K 100LM/W 38 DEG BEAM DIMMABLE 68MM CUT OUT
Part Number:
ILDL68G013

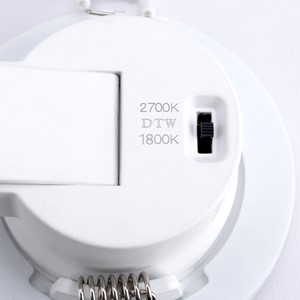

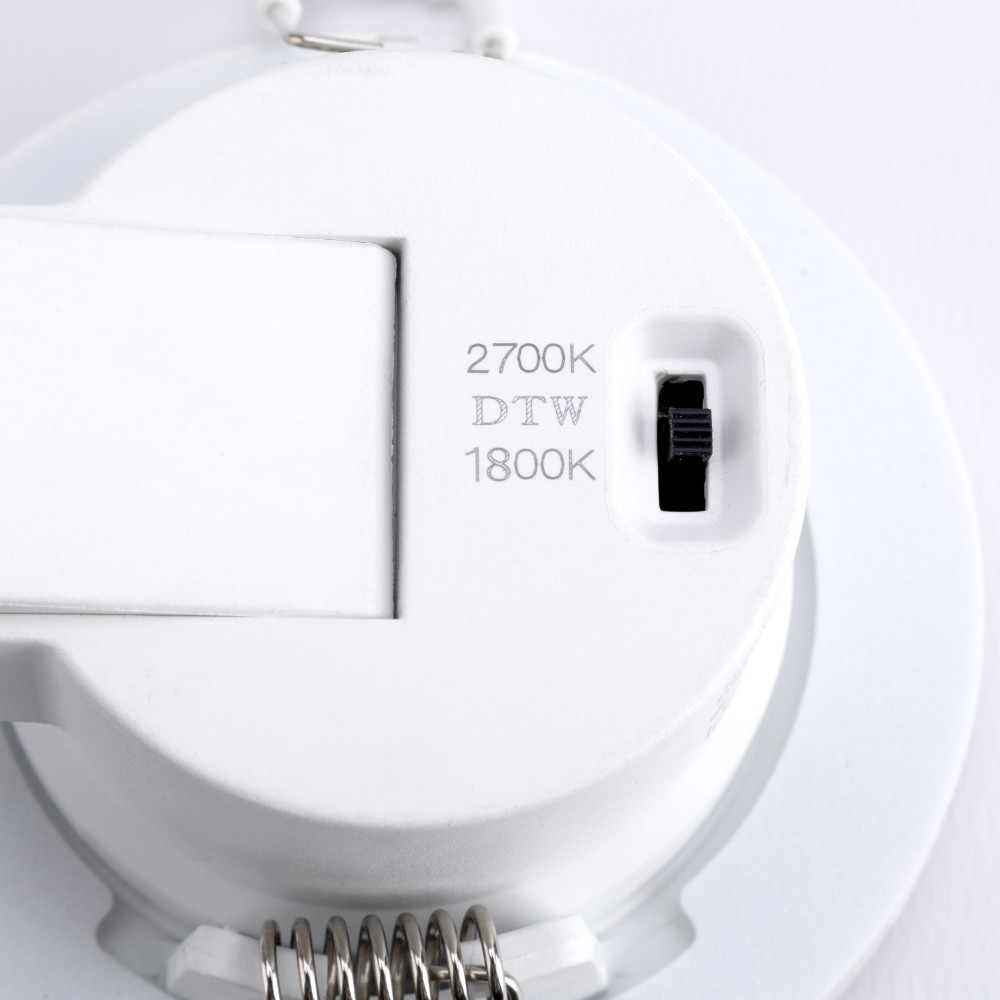

Create a cosy ambience in any space with WarmTone technology, which gradually lowers the colour temperature as the light is dimmed—shifting from a warm 2700K to an ultra-warm 1800K.

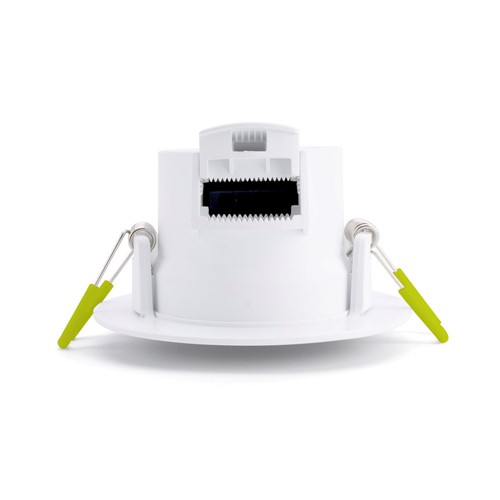

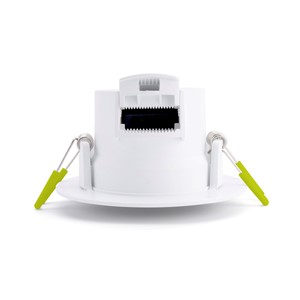

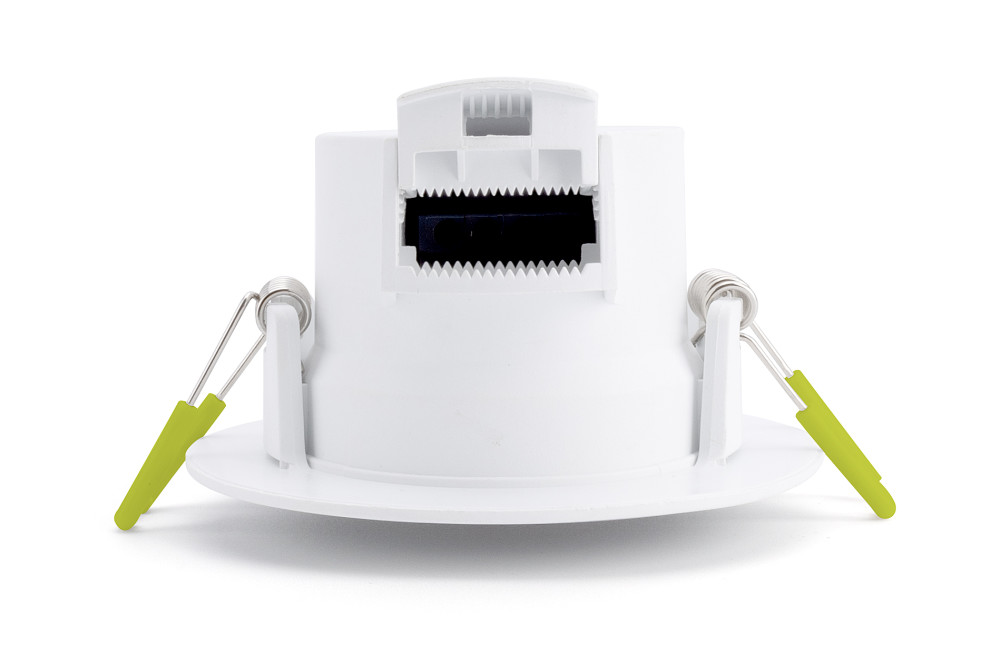

The Compact Eco range offers durable, efficient, and versatile downlights suitable for both residential and commercial applications. Each downlight is equipped with an in-built dimmable driver and boasts IP65 water and dust resistance, ensuring reliable performance in various environments. The low-profile design and in-built tool-free loop-in, loop-out terminal block make installation quick and easy, even in shallow ceiling voids.
- Product Feature 1:
- IP65 Suitable for wet areas
- Product Feature 2:
- Dimmable as standard
- Product Feature 3:
- Loop in-out terminals
- Availability:
-
0
More stock due in on 13/12/2024
Suggested products
Details
| Quick Order Code | 402289 |
|---|---|
| Barcode | 5055788301448 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Dim-to-Warm |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 47 |
| Product Weight (g) | 85 |
| Material | Plastic |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 550 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 1800-2700 |
| Colour Temperature | CCT Tunable |
| Colour Temperature Name | Ultra Warm to Warm White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 455 |
Electrical Data
| Power Consumption (W) | 5.5 |
|---|---|
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 110 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 90 |
