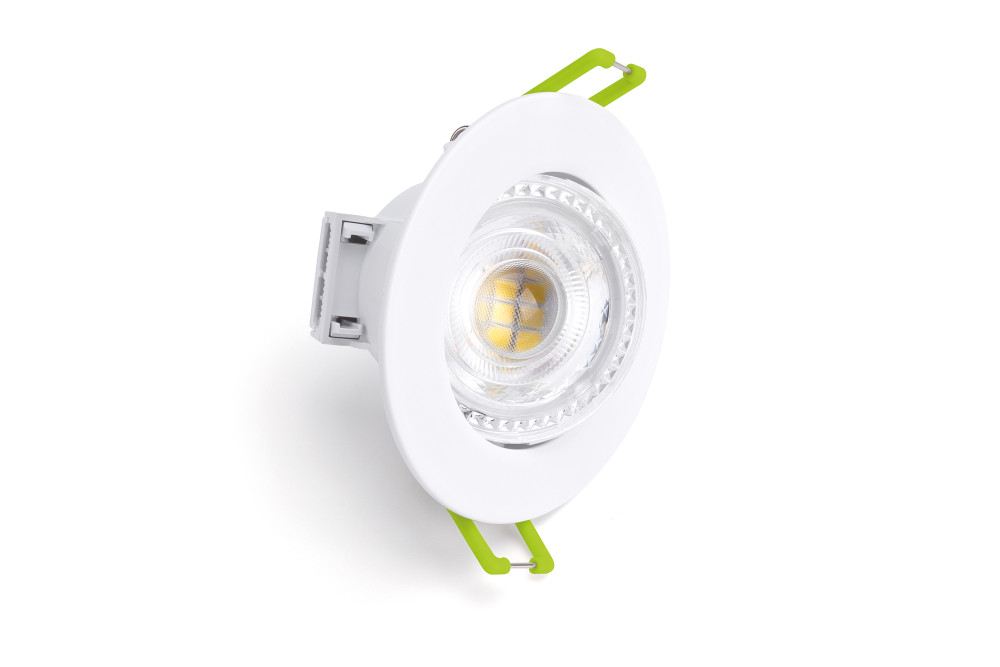

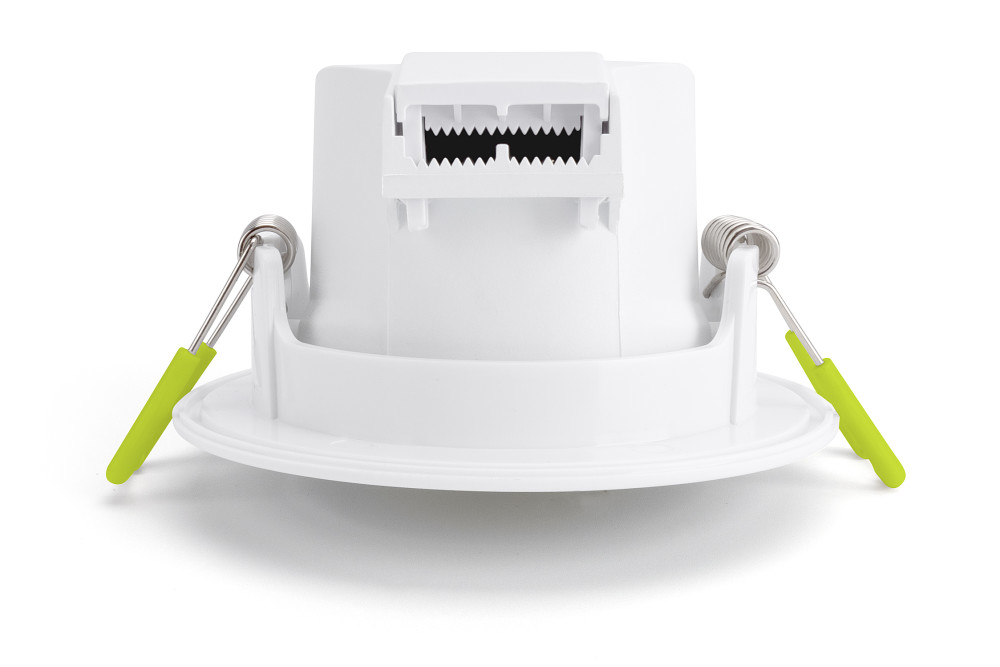

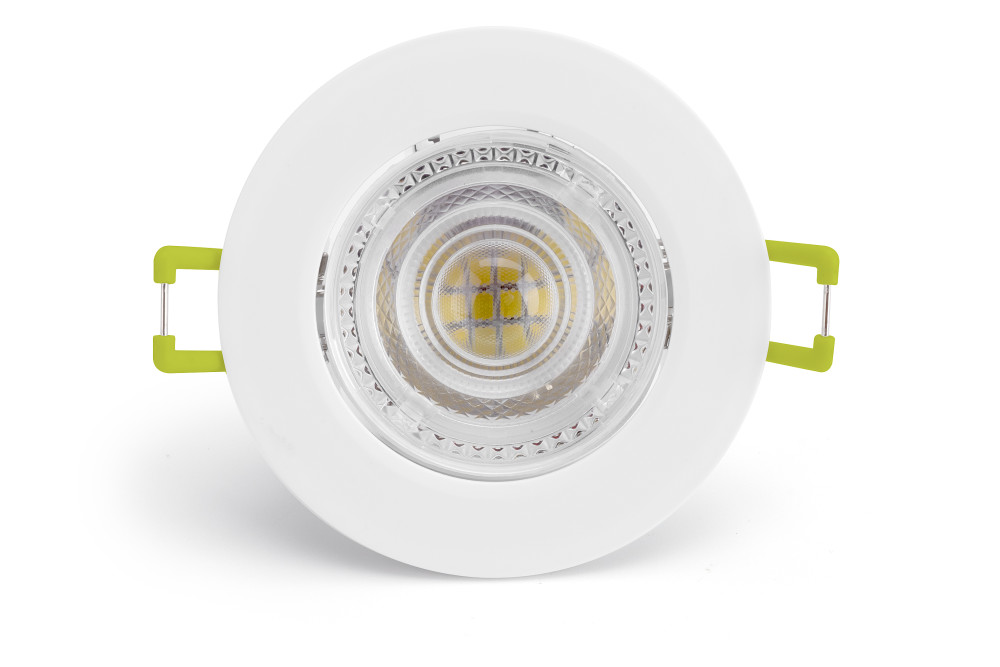

COMPACT ECO MAX CLASS A LED DOWNLIGHT IP44 30 DEG TILTABLE 2.7W 520LM 4000K 210LM/W 38 DEG BEAM NON-DIMM 68MM CUT OUT
Part Number:
ILDL68G016
Versatile and eco-friendly, the Compact Eco Max Class A offers superior efficiency, durability, and performance for a wide range of applications.
Ideal for residential and commercial spaces, this downlight delivers an impressive efficacy of 210lm/W, making it one of the most energy-efficient options available on the market. 4000K neutral white light provides bright, clear illumination, ideal for task lighting and general use, whilst the tilt function allows light to be directed exactly where needed.
Each downlight is equipped with an in-built dimmable driver and features IP44 water and dust resistance, ensuring reliable performance in various environments. The low-profile design and in-built tool-free loop-in, loop-out terminal block make installation quick and easy, even in shallow ceiling voids.
- Product Feature 1:
- IP44 Suitable for bathrooms
- Product Feature 2:
- Loop in-out terminals
- Product Feature 3:
- Tiltable 30°
- Availability:
-
0
More stock due in on 13/12/2024
Suggested products
Details
| Quick Order Code | 227118 |
|---|---|
| Barcode | 5055788301479 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Tiltable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 45.5 |
| Product Weight (g) | 72 |
| Material | Plastic |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 520 |
|---|---|
| Luminous efficacy (lm/W) | 210 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 30000 |
| Useful Lumens (lm) | 485 |
Electrical Data
| Power Consumption (W) | 2.7 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | A |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 97 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 90 |
Safety Guide
ILDL68G016
