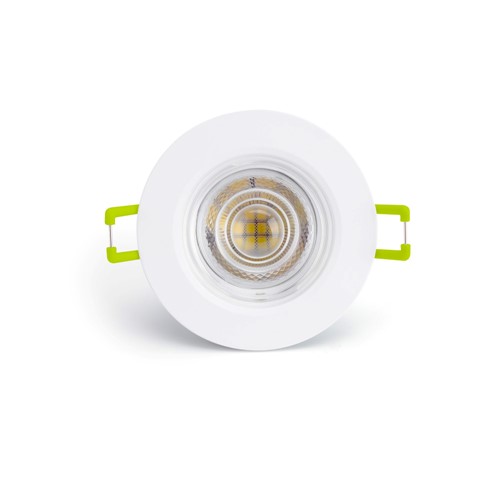

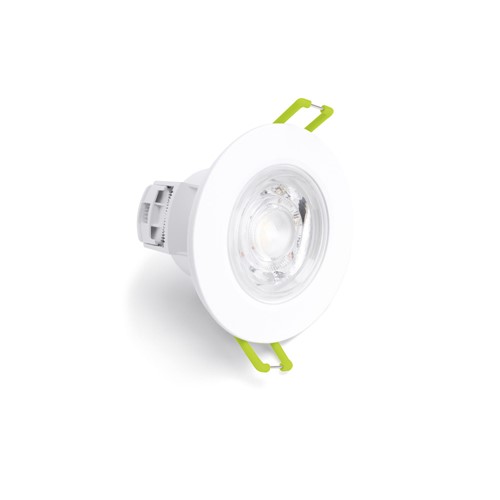

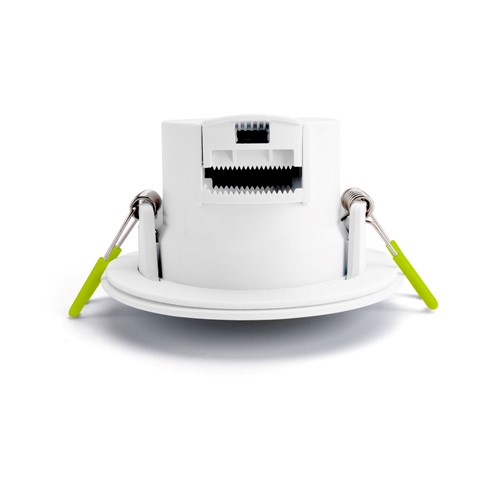

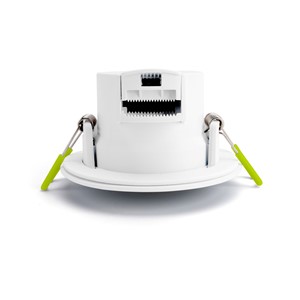

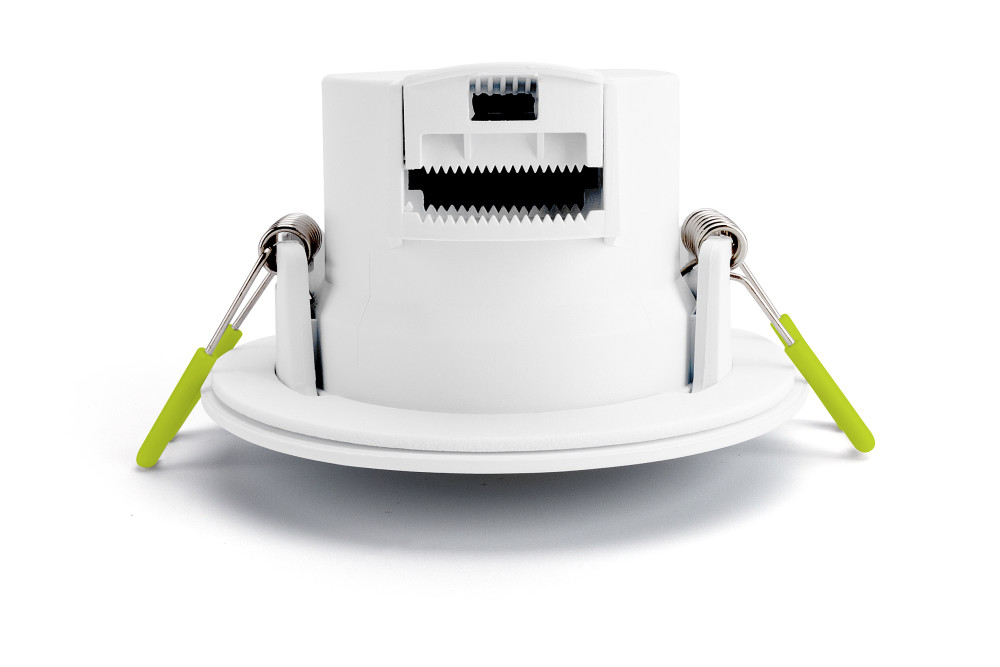

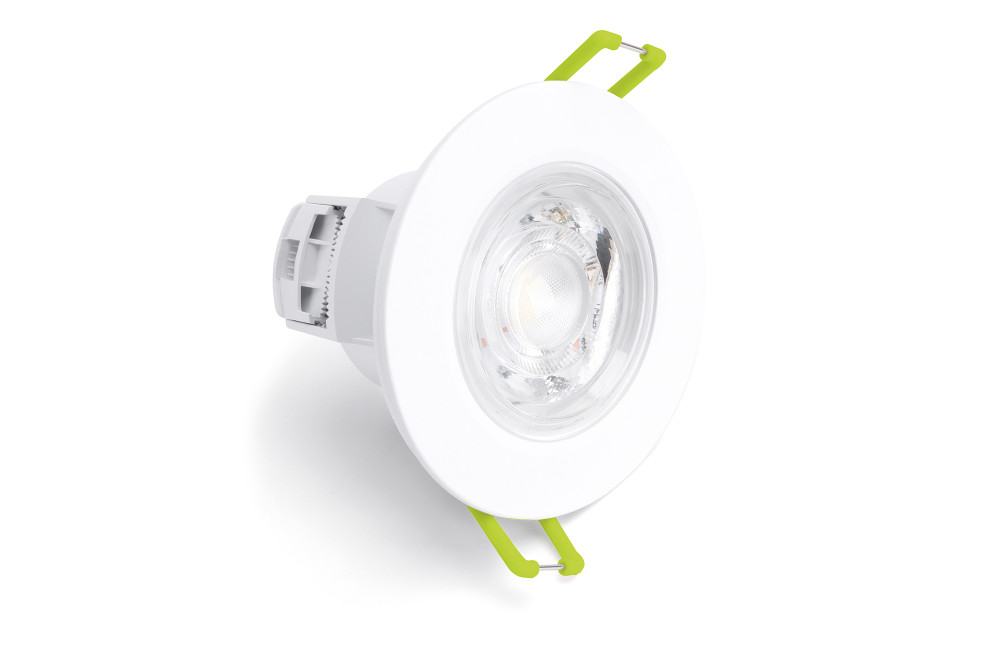

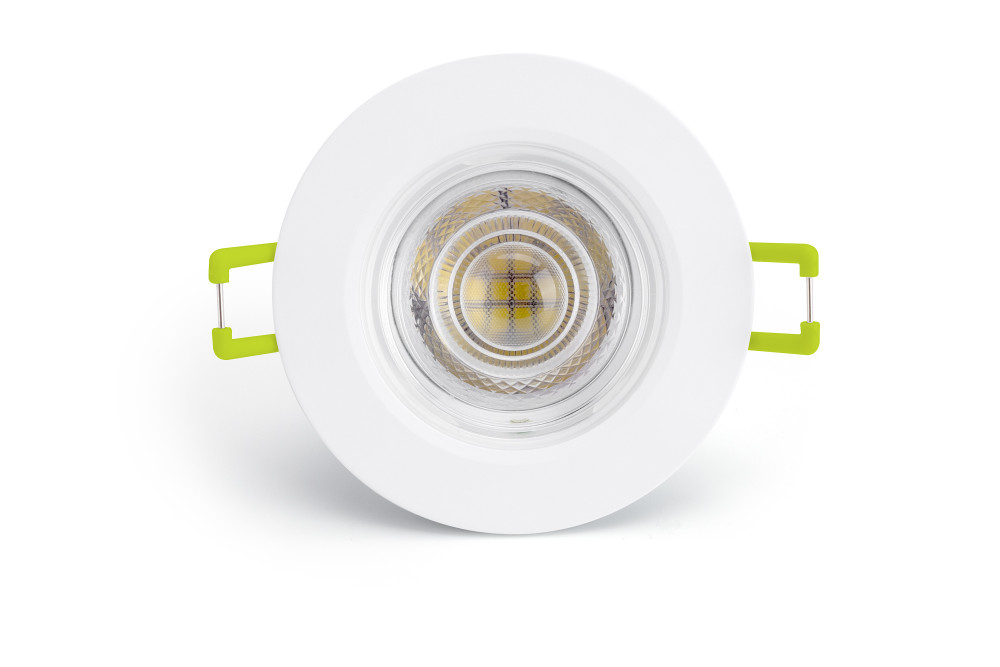

COMPACT ECO MAX CLASS A LED DOWNLIGHT IP65 2.7W 520LM 4000K 210LM/W 38 DEG BEAM NON-DIMM 68MM CUT OUT
Part Number:
ILDL68G015
Versatile and eco-friendly, the Compact Eco Max Class A offers superior efficiency, durability, and performance for a wide range of applications.
Ideal for residential and commercial spaces, this downlight delivers an impressive efficacy of 210lm/W, making it one of the most energy-efficient options available on the market. 4000K neutral white light provides bright, clear illumination, ideal for task lighting and general use.
Each downlight is equipped with an in-built dimmable driver and boasts IP65 water and dust resistance, ensuring reliable performance in various environments. The low-profile design and in-built tool-free loop-in, loop-out terminal block make installation quick and easy, even in shallow ceiling voids.
- Product Feature 1:
- IP65 Suitable for wet areas
- Product Feature 2:
- Loop in-out terminals
- Availability:
-
0
More stock due in on 13/12/2024
Suggested products
Details
| Quick Order Code | 323967 |
|---|---|
| Barcode | 5055788301462 |
| Category | Downlights |
| Range Name | Compact Eco |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 47 |
| Product Weight (g) | 72 |
| Material | Plastic |
| Overall diameter (mm) | 87 |
| Construction | Plastic |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 520 |
|---|---|
| Luminous efficacy (lm/W) | 210 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 30000 |
| Useful Lumens (lm) | 485 |
Electrical Data
| Power Consumption (W) | 2.7 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | A |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 97 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 90 |
Safety Guide
ILDL68G015
