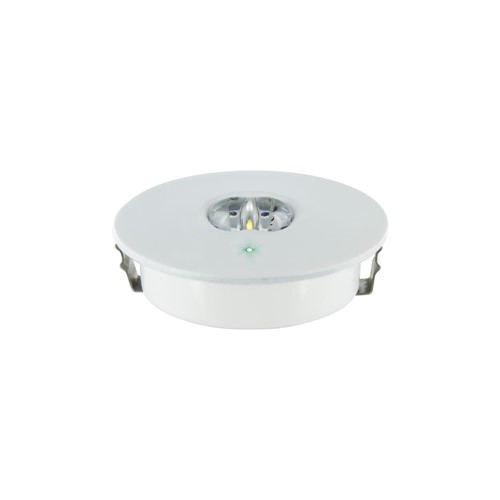

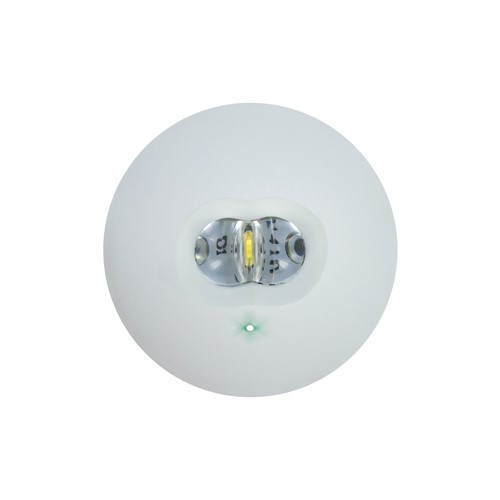

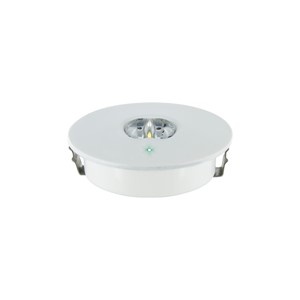

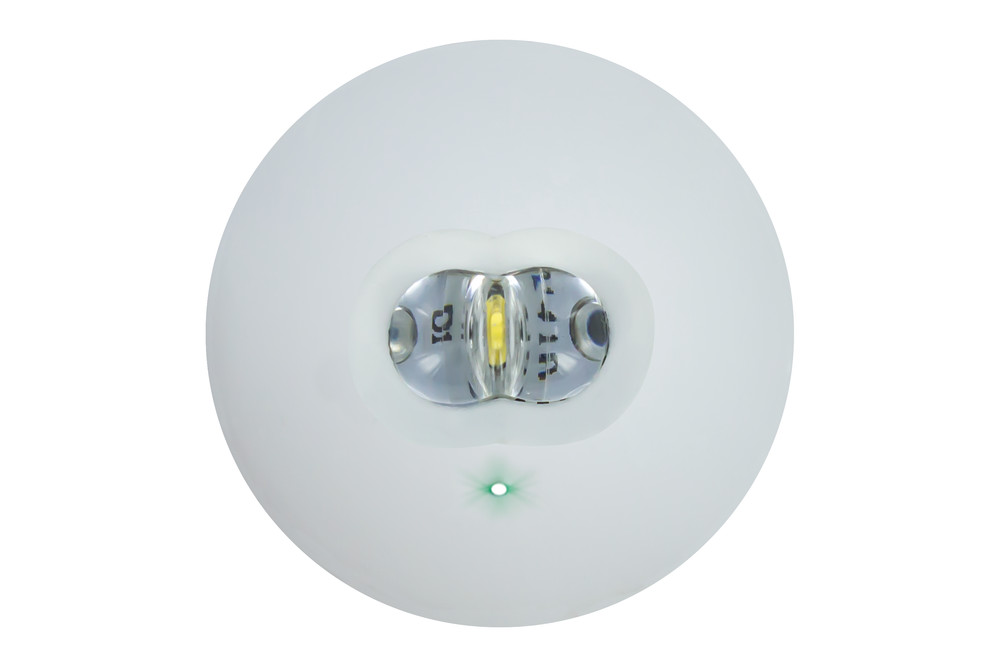

COMPACT EMERGENCY DOWNLIGHT 34MM CUTOUT IP20 180LM 1W 4000K 3HR NON-MAINTAINED CORRIDOR MANUAL INTEGRAL
Part Number:
ILEMDL014
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Non-maintained LED emergency downlight. Stand-by power consumption 1W. In the case of a power-cut, the 3W LED light will operate for 3 hours. Suitable for corridor escape routes.
- Product Feature 1:
- 180 Lumens in emergency mode
- Product Feature 2:
- Cool White
- Product Feature 3:
- 32mm cut-out
- Product Feature 4:
- 3 Year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Mounting Type (Emergency) | Recessed |
|---|---|
| Quick Order Code | 163686 |
| Barcode | 5055788228998 |
| Category | Emergency |
| Range Name | Compact |
| Product Type | Emergency Downlight |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Depth (mm) | 10.5 |
| Product Weight (g) | 200 |
| Diameter (mm) | 38 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium body, PMMA optics |
| Construction | Folded Aluminium |
| Cut Out Diameter (mm) | 32 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recessed |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Energy Efficiency Label (Image) | ILEMDL014_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Lumens in Emergency mode (lm) | 180 |
| Useful Lumens (lm) | 180 |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 500 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | 100 |
| Emergency Type | Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 210 |
|---|---|
| Package Length (mm) | 235 |
| Package Width (mm) | 70 |
| Package Depth (mm) | 26 |
Safety Guide
ILEMDL014
