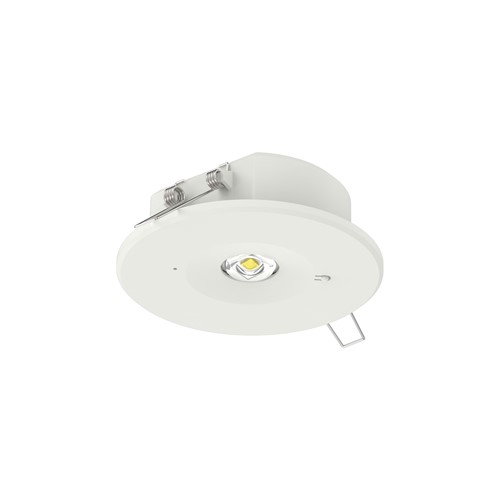

EMERGENCY DOWNLIGHT 1W 150LM 3HR NON MAINTAINED 75MM CUT OUT OPEN AREA AND CORRIDOR IP20 6000K MANUAL TEST INTEGRAL LED
Part Number:
ILEMDL069
- Product Feature 1:
- 1W LED
- Product Feature 2:
- 150Lm
- Product Feature 3:
- 6000K
- Product Feature 4:
- 3 Year warranty
- Availability:
-
100+
More stock due in on 01/03/2025
Suggested products
Details
| Application | Corridor & Open Area |
|---|---|
| Quick Order Code | 905106 |
| Barcode | 5055788288725 |
| Category | Emergency |
| Range Name | Recessed |
| Product Type | Emergency Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Features | Emergency Function |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Emergency Category | Downlights |
| Linkable | No |
| Product Length (mm) | 98 |
| Product Depth (mm) | 34.5 |
| Product Width (mm) | 98 |
| Product Weight (g) | 114 |
| Diameter (mm) | 98 |
| Optic | Polycarbonate |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Cut Out Diameter (mm) | 75 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 150 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature | 6000K - Cool Daylight |
| Colour Temperature Name | Daylight |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 150 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 150 |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 370 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 150 |
| Emergency Type | Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 145 |
|---|---|
| Package Length (mm) | 101 |
| Package Width (mm) | 101 |
| Package Depth (mm) | 62 |
Safety Guide
ILEMDL069 Corridor
