MULTI-FIT DOWNLIGHT 65-205MM CUTOUT 1440LM 18W 3000K NON-DIMM 80LM/W WHITE

Part Number:

ILDL205-65G007

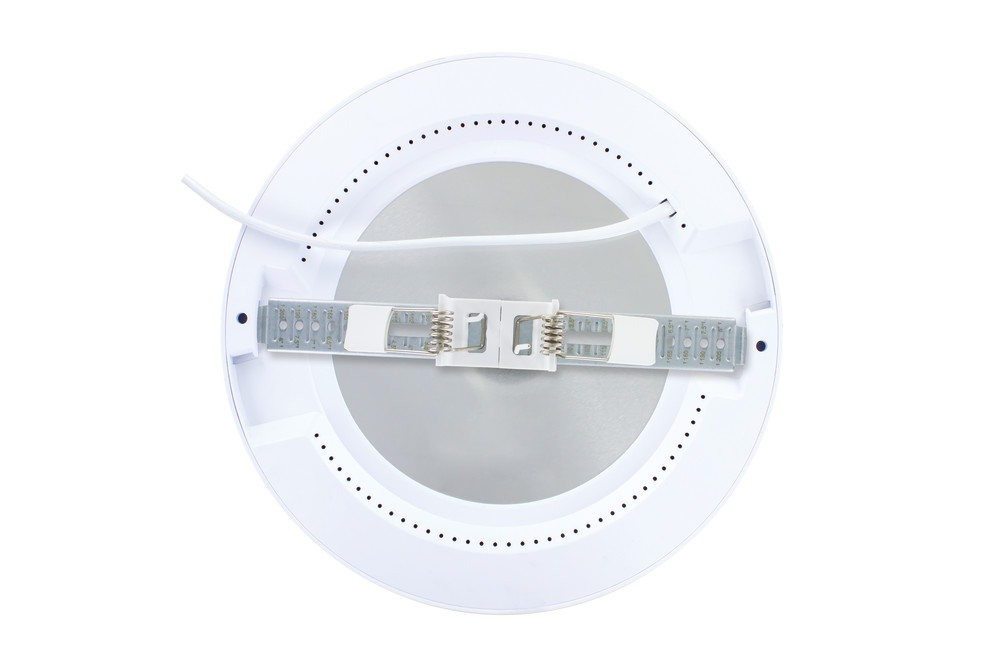

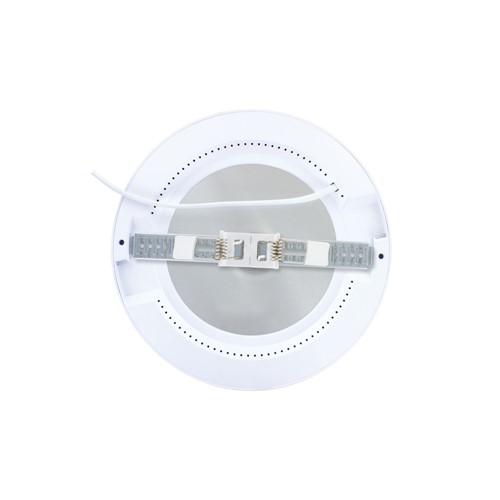

The downlight is supplied with configurable brackets and clips allowing for installation in a cut-out from 65-205mm as well as having a surface mount installation option.
Visible flicker is eliminated with the integrated driver and a frosted diffuser provides uniform light.

Product Feature 1:
Warm white
Product Feature 2:
1440lm
Product Feature 3:
80lm/W

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
0

More stock due in on 30/12/2021

Barcode 5055788253037
Category Downlights
Range Name Multi-Fit
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 3
Emergency Option Optional Conversion Kit
Emergency Category Downlights
Product Depth (mm) 22
Product Weight (g) 405
Diameter (mm) 230
Optic TP(b) rated Opal diffuser
Material Aluminium, PS, PC
Overall diameter (mm) 230
Construction Die cast Aluminium body, PS sheet diffuser
Cut Out Diameter (mm) 65-205
Luminaire Fixing Recess or surface mounted
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 1440
Luminous efficacy (lm/W) 80
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Switching Cycles 15000
Power (W) 18
Power Consumption (w) 18
Power Factor 0.5
Wattage equivalent (W) 26
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 500
Package Length (mm) 275
Package Width (mm) 239
Package Depth (mm) 36

Product Specification Sheet

Installation Guides
