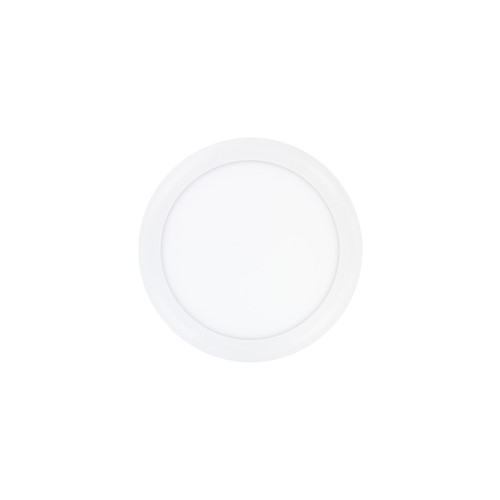

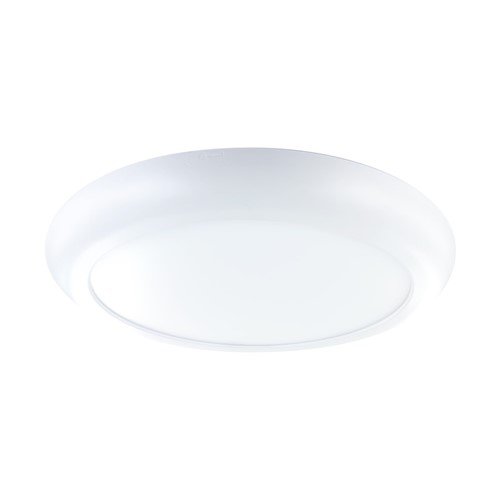

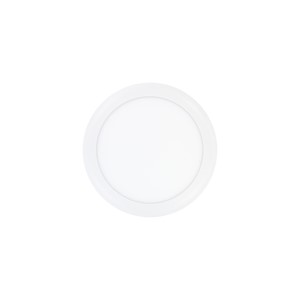

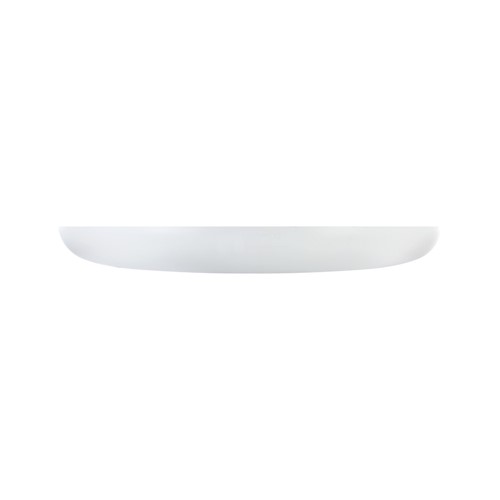

MULTI-FIT PLUS DOWNLIGHT 65-205MM CUTOUT 950-1700LM 10W 15W 18W 3000K/4000K/6500K NON-DIMM 100LM/W WHITE TPb DIFFUSER
Part Number:
ILDL205-65G009
The Multi-Fit Plus Downlight provides a solution for commercial and home use with the adaptability to provide a suitable fitting and a high-quality lumen and colour adjustable light to match your space.

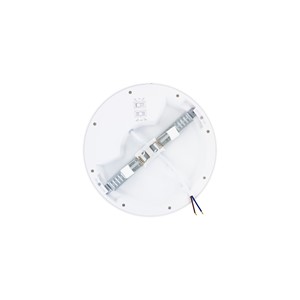

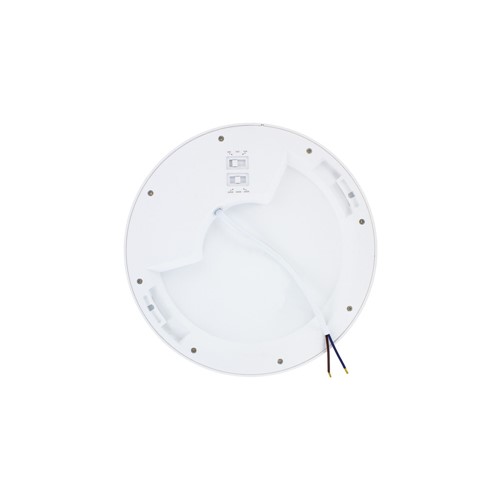

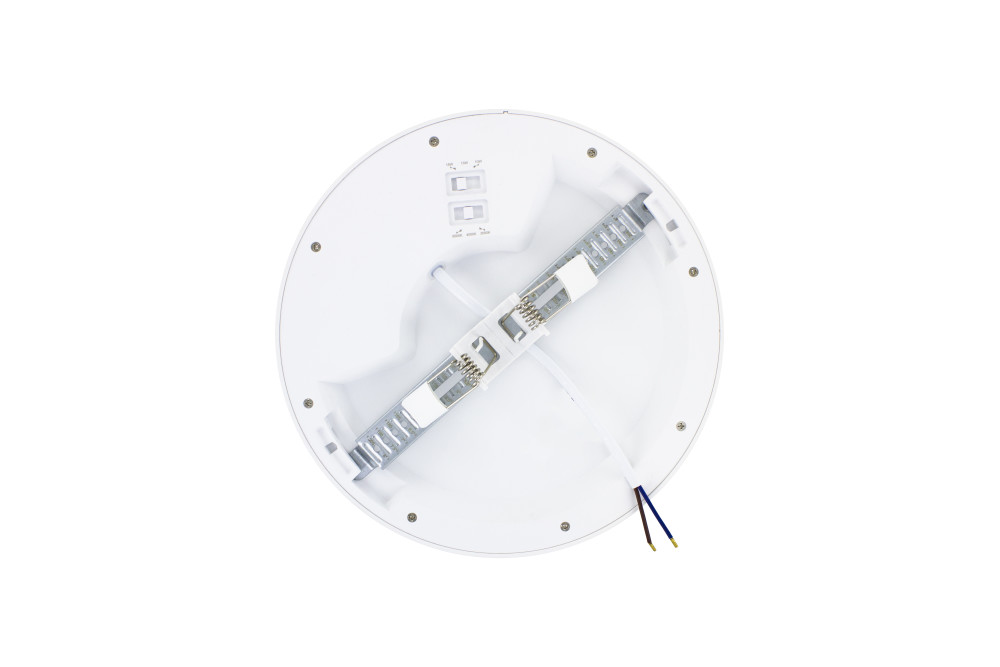

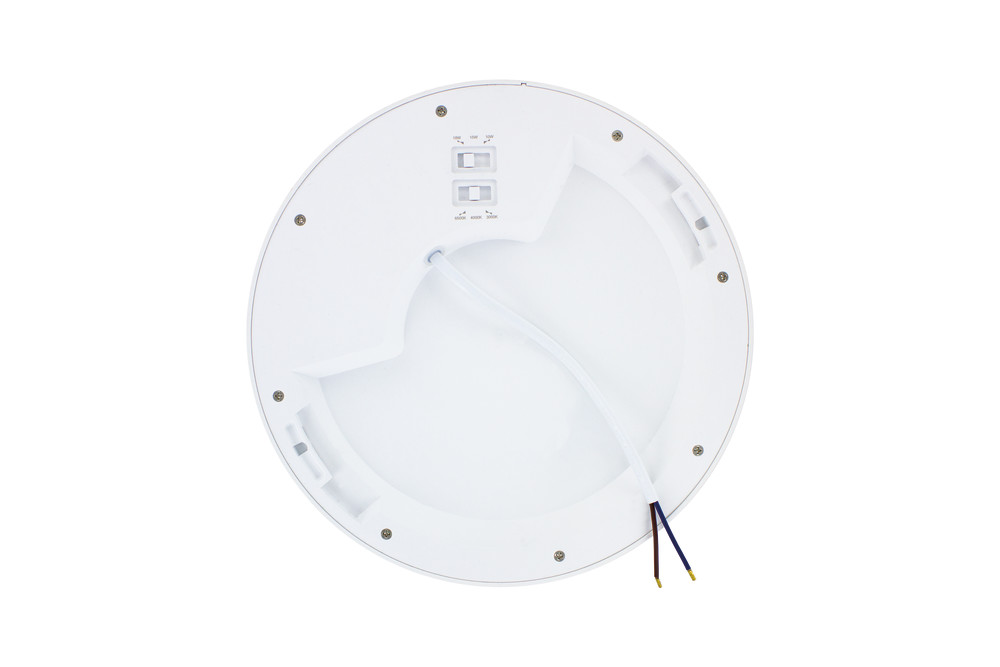

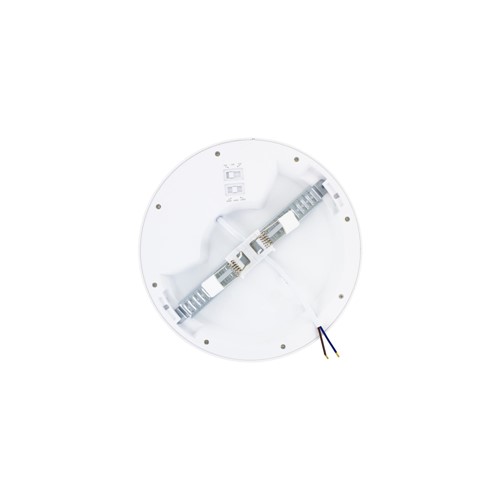

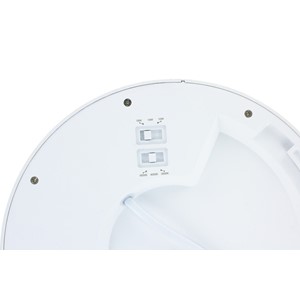

This downlight gives increased versatility with the options of 3 Colour Temperatures (CCT); Warm White, Cool White, and Daylight and a Variable Wattage (Light Output) giving a range of nine lumen outputs from 950lm to 1550lm (Switches are located on the rear of the unit).

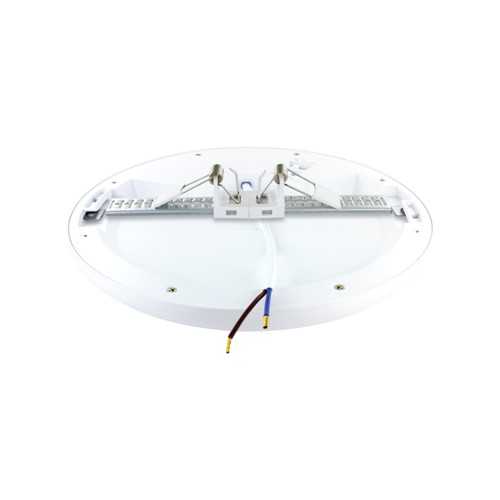

A configurable cut-out size from 65 to 205mm with a surface mount option provides installation flexibility. The integrated driver eliminates visible flicker, and a frosted diffuser delivers a uniform light.
- Product Feature 1:
- Colour Temperature Variable
- Product Feature 2:
- Wattage (Light Output) Variable
- Product Feature 3:
- Adjustable cut-out 65-205mm
- Product Feature 4:
- Surface mountable
- Product Feature 5:
- Frosted polycarbonate (TPb) diffuser
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
100+
More stock due in on 24/12/2024
Suggested products
Details
| Quick Order Code | 381351 |
|---|---|
| Barcode | 5055788253051 |
| Category | Downlights |
| Range Name | Multi-Fit+ |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Depth (mm) | 22 |
| Product Weight (g) | 405 |
| Diameter (mm) | 230 |
| Optic | TP(b) rated Opal diffuser |
| Material | Aluminium, PS, PC |
| Overall diameter (mm) | 230 |
| Construction | Die cast Aluminium body, PS sheet diffuser |
| Cut Out Diameter (mm) | 65-205 |
| Luminaire Fixing | Recess or surface mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL205-65G009_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 950-1700 |
| Luminous efficacy (lm/W) | 83-110 |
| Correlated Colour Temperature (CCT) (K) | 300040006500 |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
Electrical Data
| Power Consumption (W) | 10 to 18 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 26 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Safety Guide
ILDL205-65G009-10W-3000K
