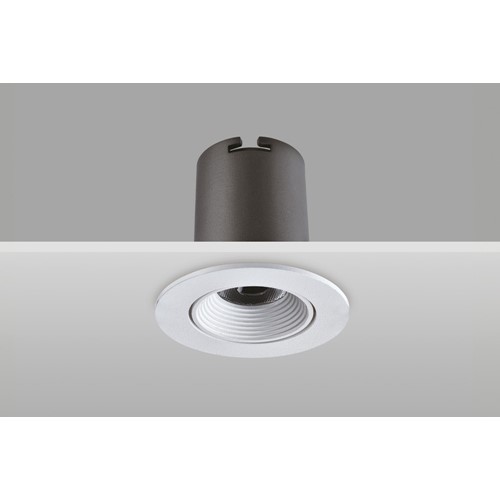

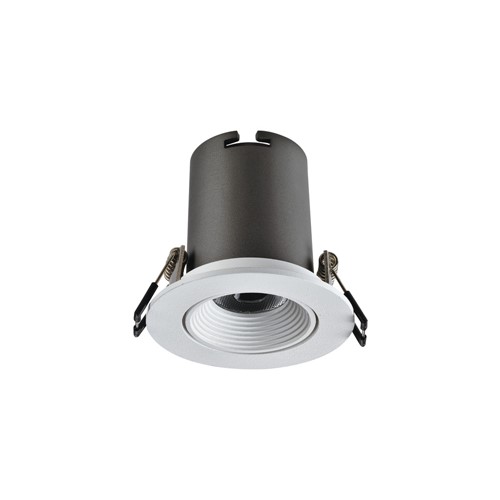

HI-BRITE TILTABLE DOWNLIGHT 60MM CUTOUT 9W 785LM 90LM/W 4000K 30 BEAM NON-DIMM FINISH-F WHITE INTEGRAL
Part Number:
ILDL60K013
Lux Hi-Brite range is uniquely designed to provide maximum lumen output from a very compact body. Minimum glare is achieved from a deep-recessed construction, guaranteeing comfortable light. Lux Hi-Brite downlights are ideal for applications requiring high performance in limited spaces, such as hospitality, retail or commerce.
The stylish fixed and tiltable finishes can illuminate a wide range of areas. Complement with Lux Mini range for coherent multilevel lighting design.
- Product Feature 1:
- 60mm cut out
- Product Feature 2:
- 785lm
- Product Feature 3:
- 30 Degrees Beam
- Product Feature 4:
- 90lm/W
- Product Feature 5:
- 4000K
- Product Feature 6:
- 30 Degrees Tilt
- Product Feature 7:
- Non-Dimmable
- Availability:
-
53
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 782444 |
|---|---|
| Barcode | 5055788250661 |
| Category | Downlights |
| Range Name | Lux Hi-Brite 60 Tilt |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Accent lighting |
| Finish | Matt White |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 52 |
|---|---|
| Product Weight (g) | 210 |
| Diameter (mm) | 70 |
| Optic | PMMA lens |
| Material | Aluminium |
| Overall diameter (mm) | 70 |
| Cut Out Diameter (mm) | 60 |
| Luminaire Fixing | Wall/Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL60K013_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 785 |
| Luminous efficacy (lm/W) | 90 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 30 |
| Colour Rendering Index (CRI) | 80 |
| LED Type | Chip-on-board (COB) |
| Lifetime (hours) | 60000 |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 9 |
|---|---|
| Power Consumption (W) | 9 |
| Voltage Range (v) | 220-240VAC 50/60Hz |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
| LVD Certified | Yes |
Environmental
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 280 |
|---|---|
| Package Length (mm) | 110 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 75 |
Safety Guide
ILDL60K013
