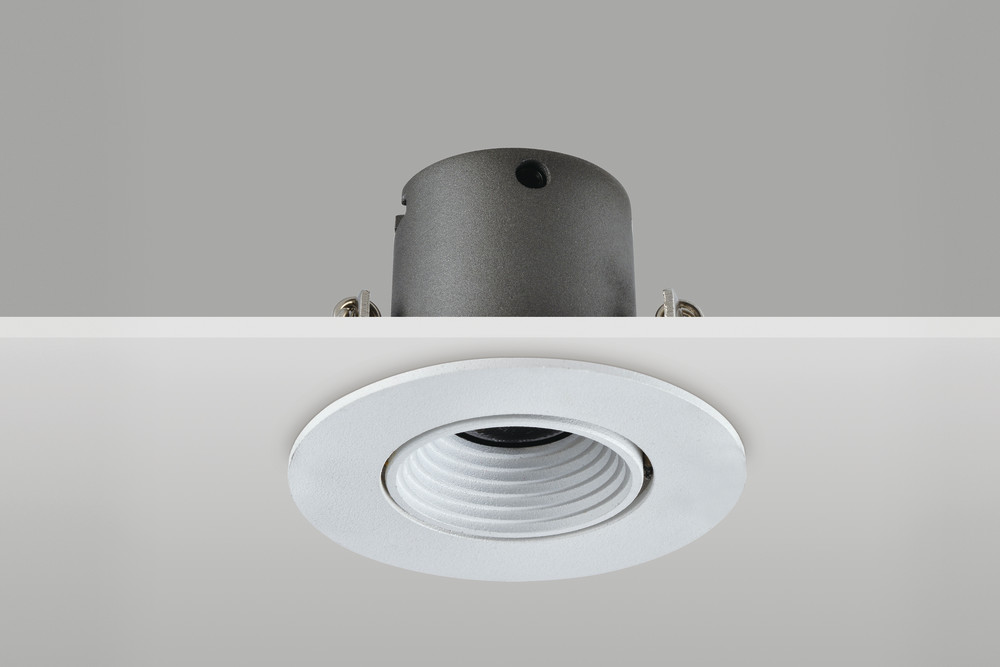

MINI TILTABLE DOWNLIGHT 50MM CUTOUT 3.3W 155LM 47LM/W 3000K 15 BEAM NON-DIM FINISH-F WHITE INTEGRAL

Part Number:

ILDL50J005

Lux Mini range offers extremely high CRI 95 designed to enrich the vibrancy of colours, a narrow beam of 15 Degrees enables the precise placement of accent lighting. This family of miniature downlights stands out as the ideal choice for home, retail, hospitality and artistic applications, helping to enhance the appearance of colours in fabrics, products and art. Complement with Lux Hi-Brite range for coherent multi-level lighting design.

Product Feature 1:
High CRI 95
Product Feature 2:
50mm cut out
Product Feature 3:
155lm
Product Feature 4:
15 Degrees Beam
Product Feature 5:
3000K
Product Feature 6:
30 Degrees Tilt
Product Feature 7:
Non-Dimmable
Availability:
100+

More stock due in on 30/12/2021

Barcode 5055788250449
Category Downlights
Range Name Lux Mini 50 Tilt
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Finish Matt White
Fixed/Tiltable Tiltable
Warranty (Years) 3
Product Depth (mm) 40
Product Weight (g) 140
Diameter (mm) 60
Optic PMMA lens
Material Aluminium
Overall diameter (mm) 60
Cut Out Diameter (mm) 50
Luminaire Fixing Wall/Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILDL50J005_EU_label
Luminous Flux in Lumens (lm) 155
Luminous efficacy (lm/W) 47
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 15
Colour Rendering Index (CRI) 95
LED Type Surface mounted device (SMD)
Switching Cycles 15000
Power (W) 3.3
Power Consumption (w) 3.3
Dimming Non-Dimmable
Driver Included Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 40
Package Weight (g) 180
Package Length (mm) 95
Package Width (mm) 90
Package Depth (mm) 55

Product Specification Sheet

LDT Files

Installation Guides
