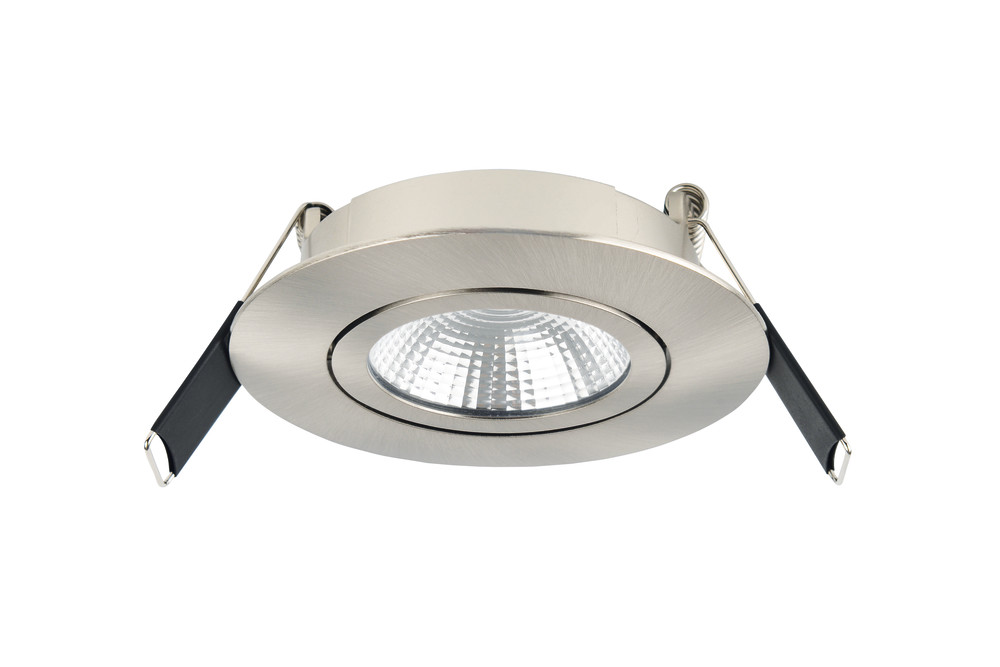

ULTRA SLIM TILTABLE DOWNLIGHT 65MM CUTOUT 6.5W 670LM 103LM/W 4000K 36 BEAM DIMMABLE SATIN NICKEL INTEGRAL
Part Number:
ILDL65L007
The Lux Ultra Slim high-end tiltable and dimmable downlight range impresses by offering stylish high-quality finish, ultra-low profile height of only 27mm, a modern look topped with a very efficient performance. A tiltable angle of up to 25 Degrees is ideal for directing light on to features or placement into a sloped ceiling.
In addition to light output efficacy reaching up to 103lm/W, this ultra-slim downlight is available in cool white and warm white CCTs as well as a choice for four finishes for a contemporary look. The included tool-free, user-friendly loop-in/loop-out driver enables quick and easy installation. Achieve modern lighting designs by complementing the Lux Ultra Slim range with Integral Lux Fire downlights.
- Product Feature 1:
- 65mm cut out
- Product Feature 2:
- Driver dimensions L95 x W45 x H29mm
- Product Feature 3:
- 670lm
- Product Feature 4:
- 36 Degrees Beam
- Product Feature 5:
- 103lm/W
- Product Feature 6:
- 4000K
- Product Feature 7:
- 25 Degrees Tilt
- Product Feature 8:
- Dimmable
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 345467 |
|---|---|
| Barcode | 5055788250081 |
| Category | Downlights |
| Range Name | Lux Ultra Slim |
| Product Type | LED Downlights |
| Product Body Finish | Satin Nickel |
| Market Segment | Accent lighting |
| Finish | Satin Nickel |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 27 |
|---|---|
| Product Weight (g) | 180 |
| Diameter (mm) | 83 |
| Optic | PMMA diffuser |
| Material | Aluminium |
| Overall diameter (mm) | 83 |
| Cut Out Diameter (mm) | 65 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL65L007_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 670 |
| Luminous efficacy (lm/W) | 103 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
Electrical Data
| Power (W) | 6.5 |
|---|---|
| Power Consumption (W) | 6.5 |
| Voltage Range (v) | 220-240VAC 50/60Hz |
| Dimming | Dimmable |
| Driver Included | Yes |
| EN | EN 60598, EN 55015, EN 61547, EN 61006 |
| LVD Certified | Yes |
Environmental
| EN | EN 60598, EN 55015, EN 61547, EN 61006 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP40 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 210 |
|---|---|
| Package Length (mm) | 125 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 50 |
Safety Guide
ILDL65L007
