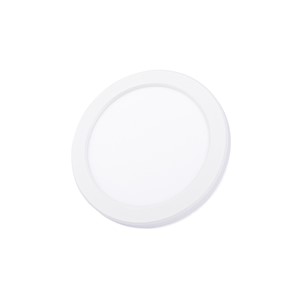

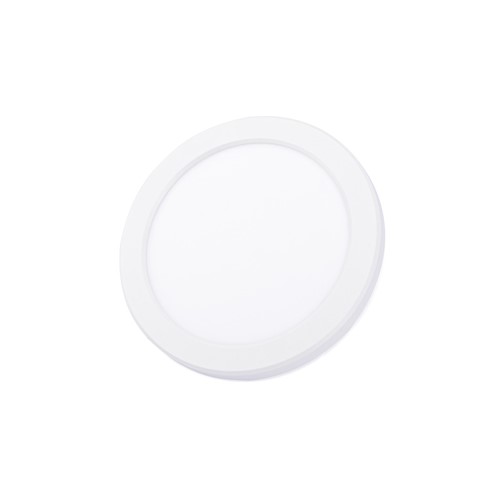

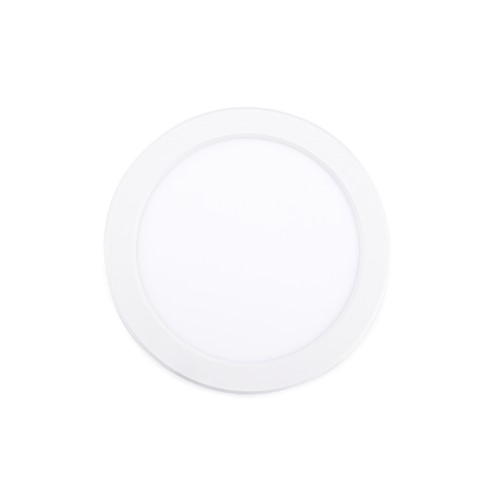

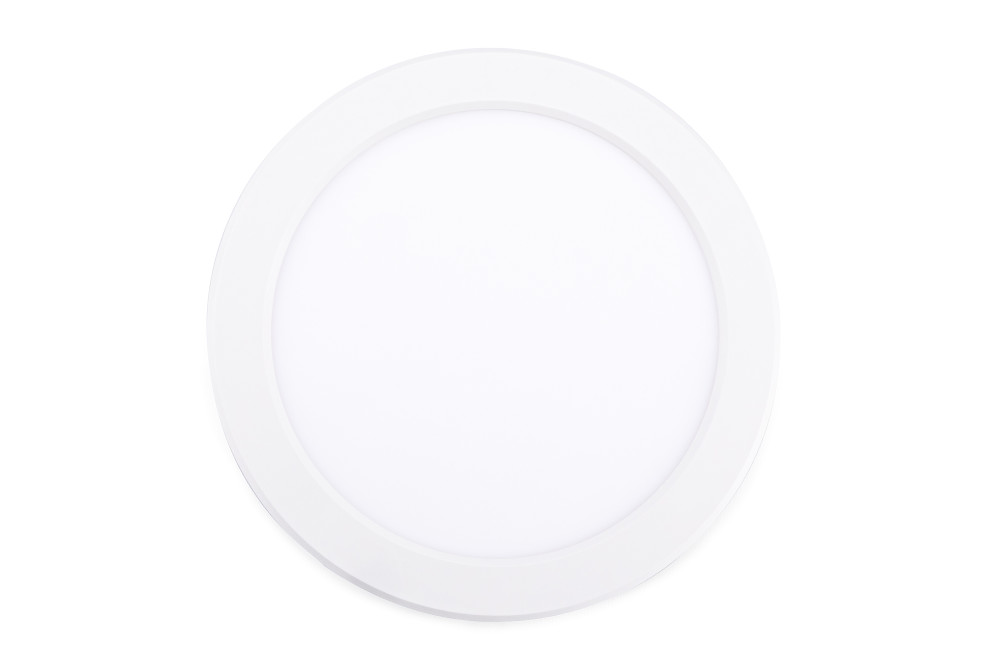

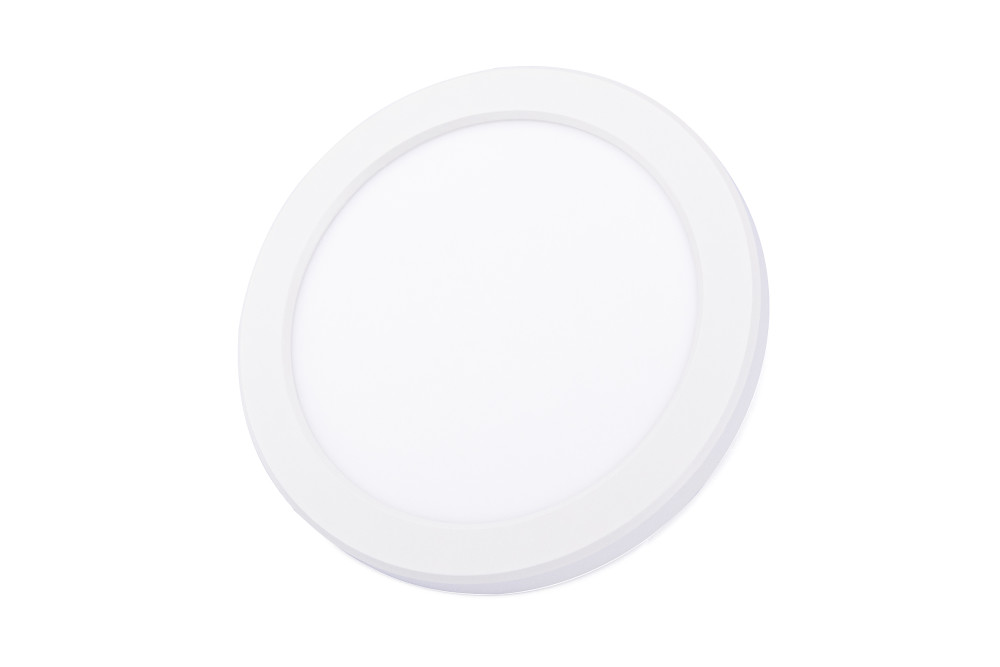

MULTI-FIT EDGE II DOWNLIGHT 65-205MM CUTOUT 1000-1800LM 10/15/18W 3000/4000/6500K NON-DIMM 100LM/W WHITE
Part Number:
ILDL205-65M020
- Product Feature 1:

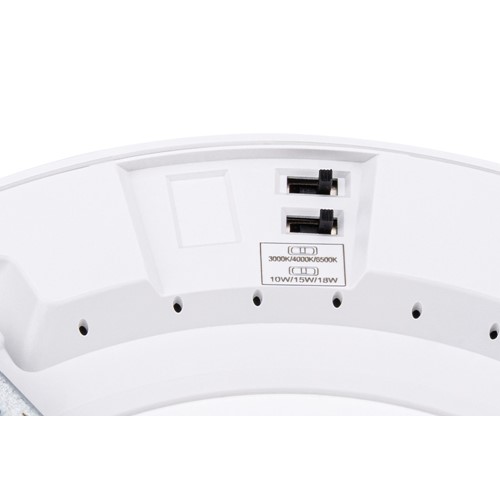

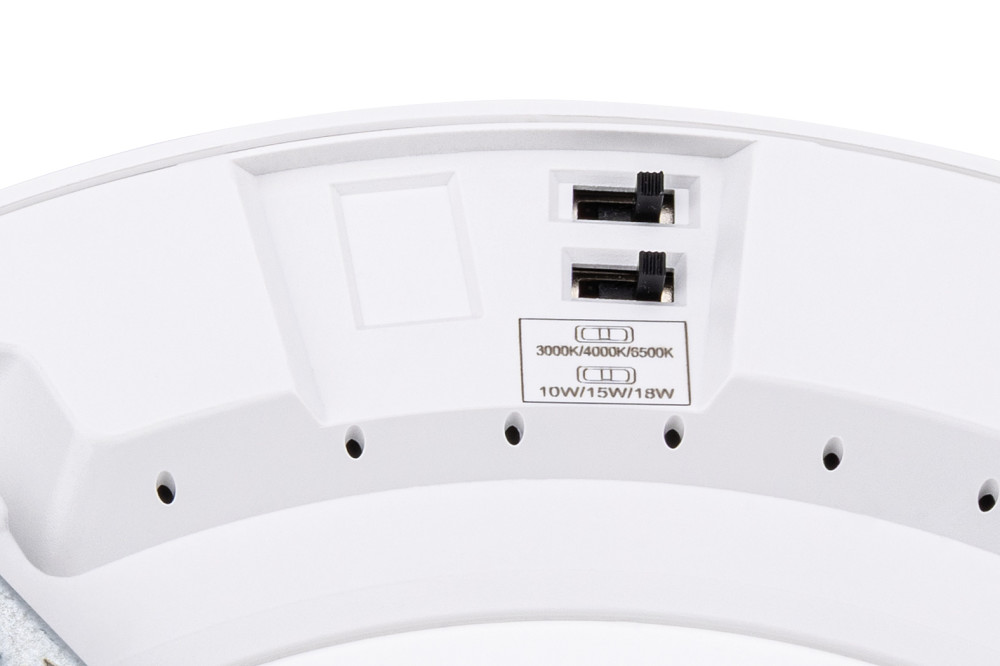

- CCT Switchable - 3000/4000/6500K
- Product Feature 2:
- Wattage (Light Output) Adjustable
- Product Feature 3:
- 100lm/W
- Product Feature 4:

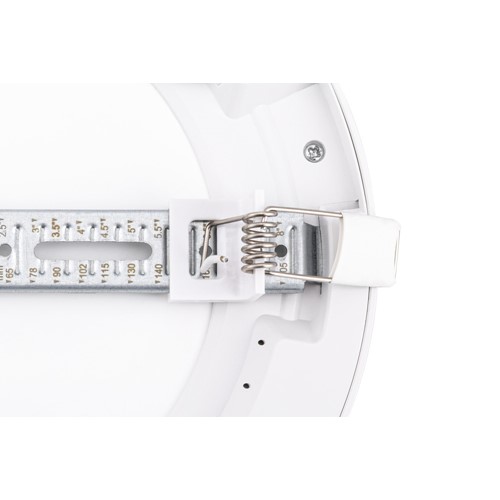

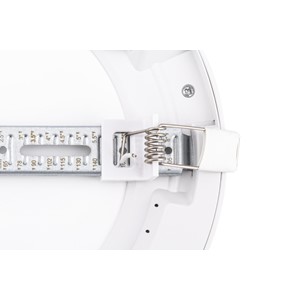

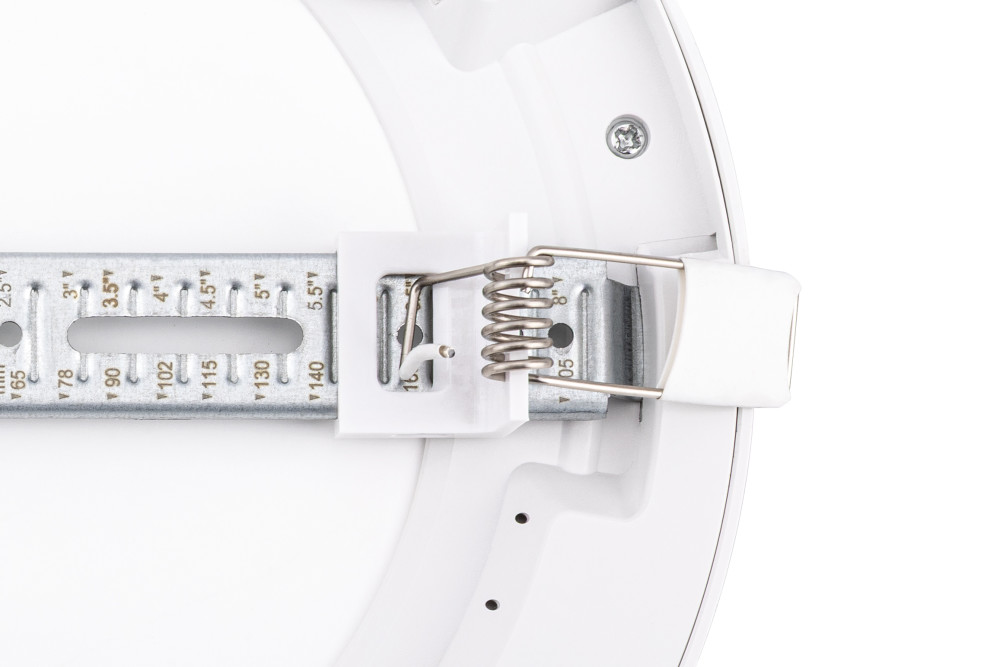

- Adjustable cut-out 65-205mm
- Product Feature 5:
- Surface mountable
- Availability:
-
0
More stock due in on 09/06/2025
Details
| Barcode | 5055788299578 |
|---|---|
| Quick Order Code | 793812 |
| Category | Downlights |
| Range Name | Multi-Fit Edge |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 18 |
| Product Weight (g) | 320 |
| Diameter (mm) | 220 |
| Optic | Opal diffuser |
| Material | Aluminium, PS |
| Overall diameter (mm) | 220 |
| Construction | Die cast Aluminium body, PS sheet diffuser |
| Cut Out Diameter (mm) | 65-205 |
| Cut Out Length (mm) | 65-205 |

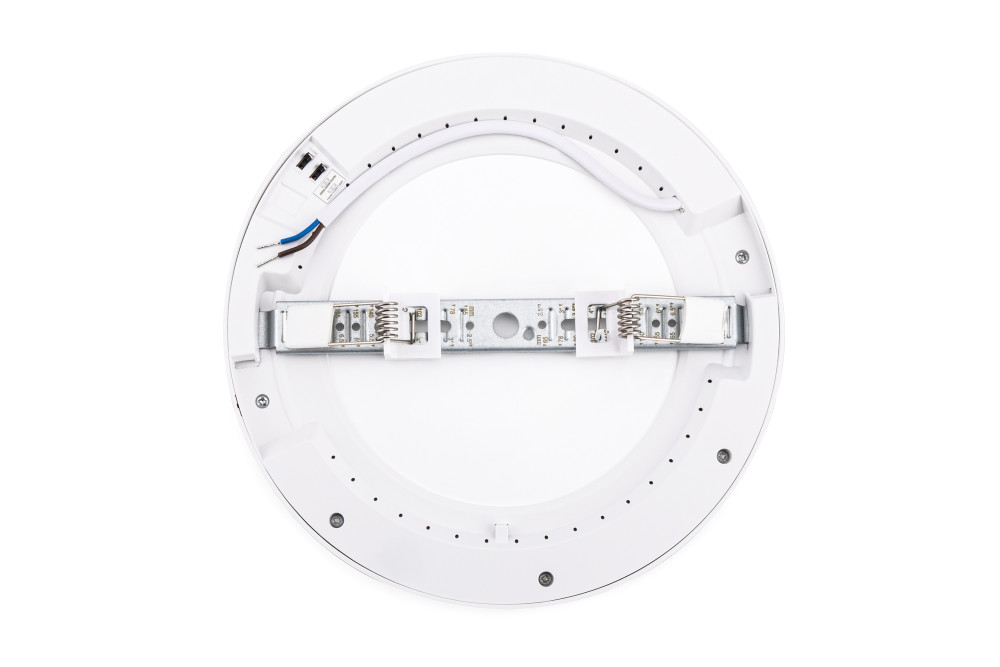

| Luminaire Fixing | Recess or surface mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 1000-1800 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6500 |
| Colour Temperature | 3000/4000/6500 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 36000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 10/15/18 |
|---|---|
| Power Consumption (W) | 10/15/18 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 150 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788299578 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 380 |
| Package Length (mm) | 225 |
| Package Width (mm) | 30 |
| Package Depth (mm) | 225 |
| Outer Carton Barcode | 05055788299585 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 465 |
| Outer Carton Width (mm) | 330 |
| Outer Carton Depth (mm) | 240 |
| Qty per euro pallet | 640 |
