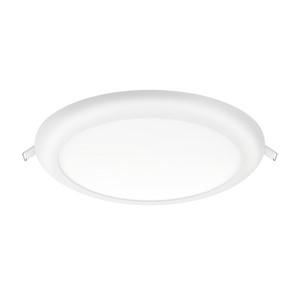

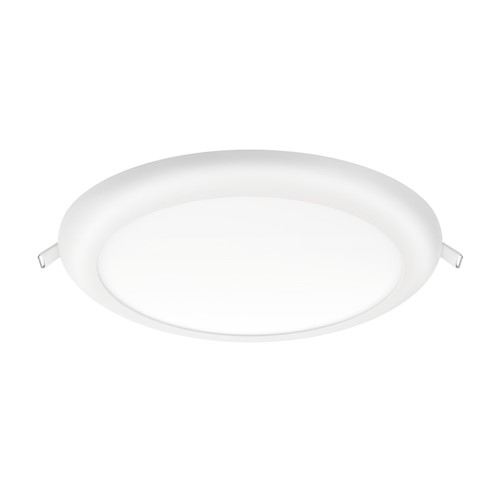

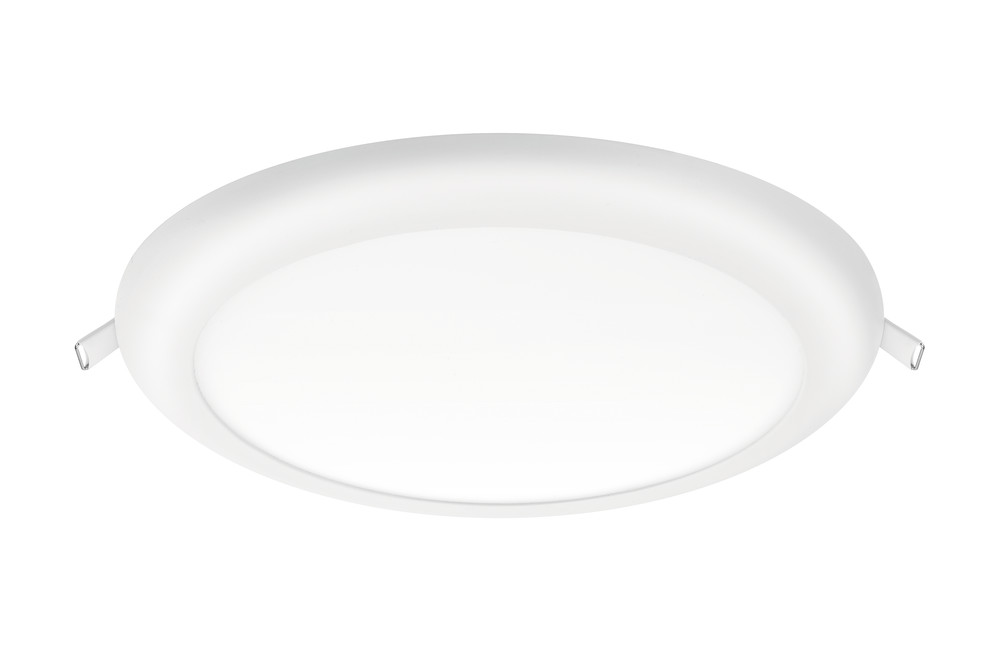

MULTIFIT DOWNLIGHT 65-205MM CUTOUT 1440LM 18W 3000K DIMMABLE 80LM/W WHITE INTEGRAL
Part Number:
ILDL205-65G003

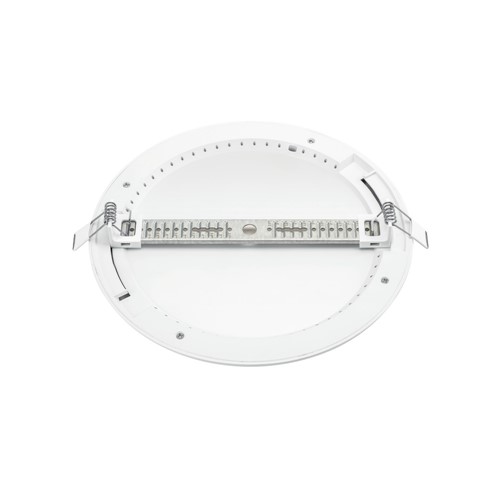

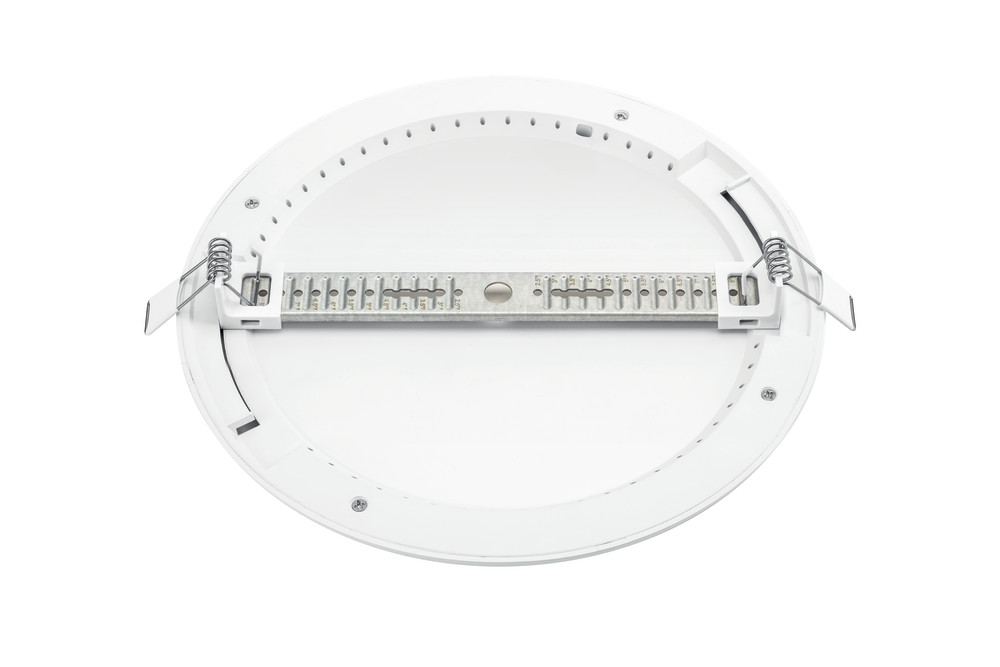

The downlight is supplied with configurable brackets and clips allowing for installation in a cut-out from 65-205mm as well as having a surface mount installation option.
Visible flicker is eliminated with the integrated driver and a frosted diffuser provides uniform light.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 1440lm
- Product Feature 3:
- 80lm/W
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 926172 |
|---|---|
| Barcode | 5055788241126 |
| Category | Downlights |
| Range Name | Multi-Fit |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 22 |
|---|---|
| Product Weight (g) | 405 |
| Diameter (mm) | 230 |
| Optic | Opal diffuser |
| Material | Aluminium, PS |
| Overall diameter (mm) | 230 |
| Construction | Die cast Aluminium body, PS sheet diffuser |
| Cut Out Diameter (mm) | 65-205 |
| Luminaire Fixing | Recess or surface mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL205-65G003_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1440 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 18 |
|---|---|
| Power Consumption (W) | 18 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 26 |
| Wattage Saving (W) | 8 |
| Dimming | TRIAC |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 500 |
|---|---|
| Package Length (mm) | 275 |
| Package Width (mm) | 239 |
| Package Depth (mm) | 36 |
Safety Guide
ILDL205-65G003
