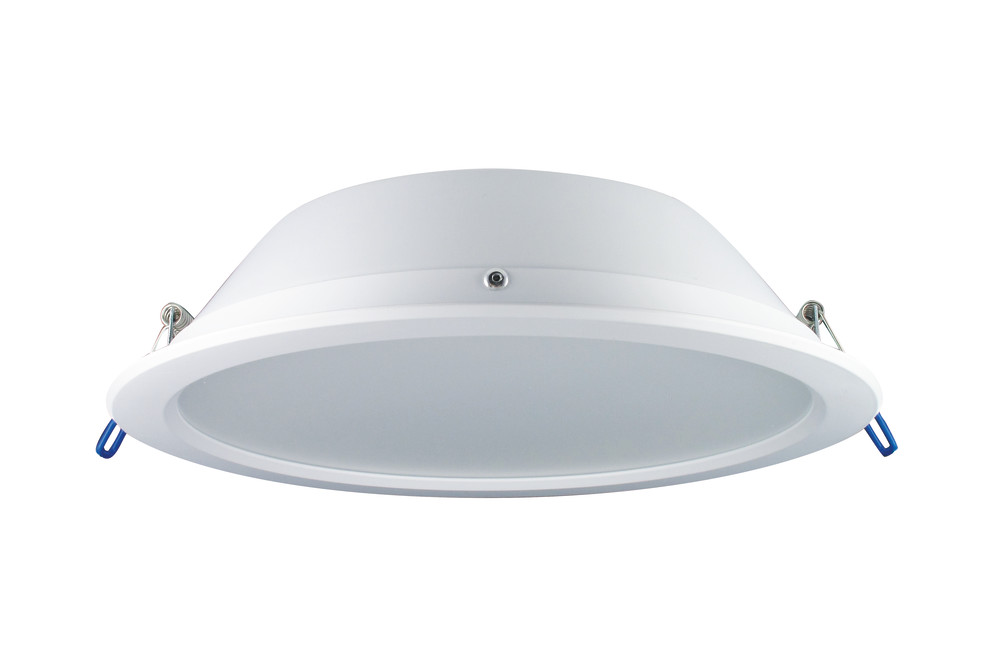

PERFORMANCE+ DOWNLIGHT 245MM CUTOUT 2080LM 22W 4000K NON-DIMM 95LM/W IP20 WHITE
Part Number:
ILDL245F008
The Integral LED 22W Watt Downlight delivers a cool white light and equivalent light output to traditional compact fluorescent. It incorporates a Polycarbonate diffuser and excellent thermal management to ensure a consistent light, long life and minimal maintenance. Ideal for commercial offices and buildings, retail premises and airports.
A constant current non dimmable LED Driver is included as standard in this product. All Integral LED drivers and downlights benefit from our simple click and lock connectivity system.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 2080lm
- Product Feature 3:
- Non-Dimmable
- Product Feature 4:
- 95lm/W
- Product Feature 5:
- Part L compliant
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 297167 |
|---|---|
| Barcode | 5055788232797 |
| Category | Downlights |
| Range Name | Performance+ |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Depth (mm) | 62 |
| Product Weight (g) | 795 |
| Diameter (mm) | 265 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Overall diameter (mm) | 265 |
| Construction | Extruded Aluminium heat-sink and body, Polycarbonate sheet diffuser |
| Cut Out Diameter (mm) | 245 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 2080 |
|---|---|
| Luminous efficacy (lm/W) | 95 |
| Peak Intensity (Cd) | 737 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Switching Cycles | 20000 |
Electrical Data
| Power (W) | 22 |
|---|---|
| Power Consumption (W) | 22 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 52 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 900 |
|---|---|
| Package Length (mm) | 268 |
| Package Width (mm) | 268 |
| Package Depth (mm) | 80 |
