RECESS PRO DOWNLIGHT 125MM CUTOUT 14W 1600LM 114LM/W 4000K 65 BEAM IP44 NON-DIMM WHITE
Part Number:
ILDL125H010

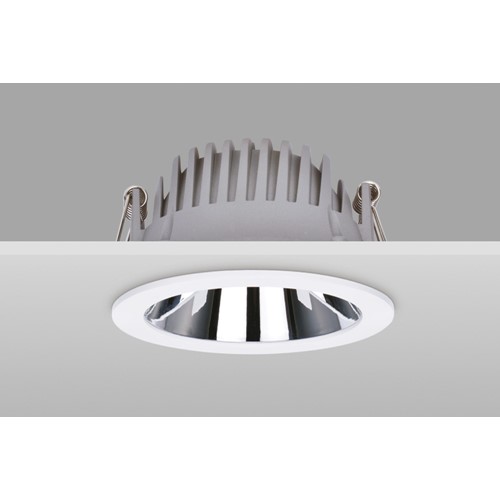

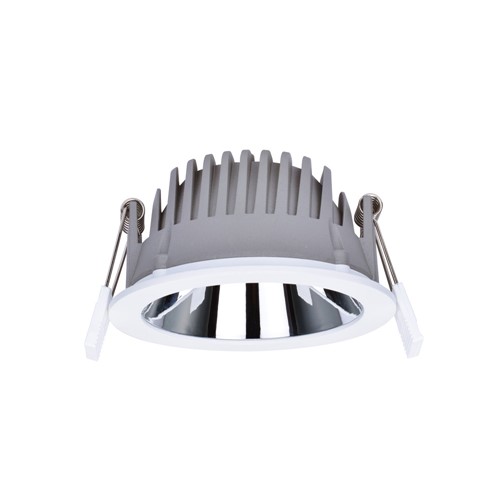

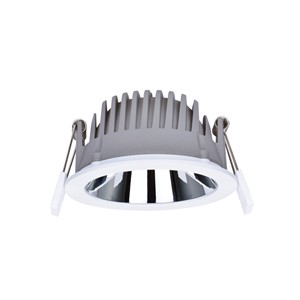

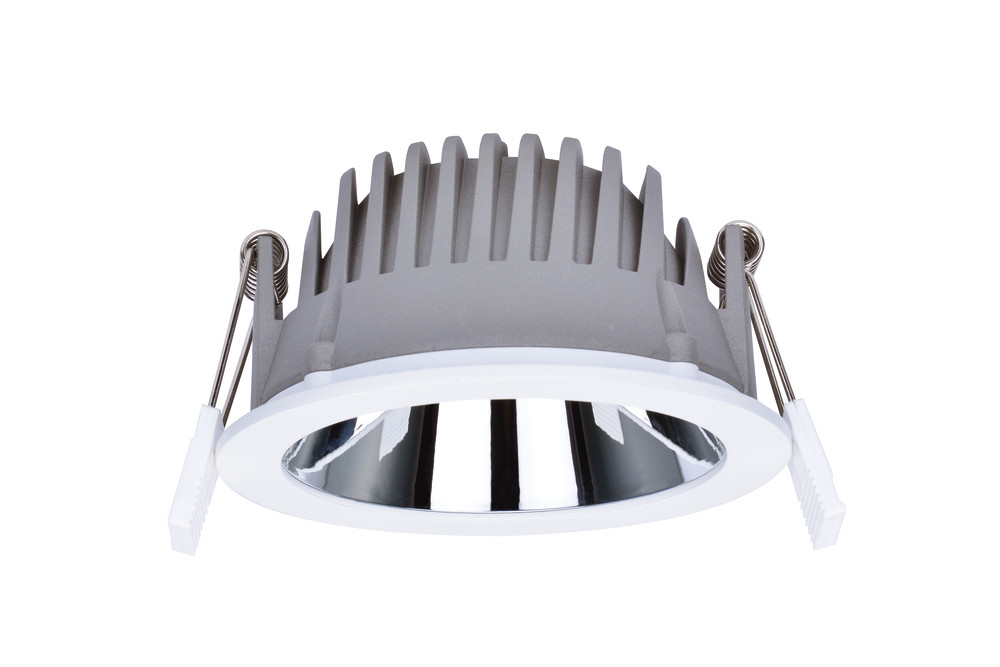

Recess Pro is a range of high-performance aluminium LED downlights with outstanding efficiency and extra-long lifetime. Ideal for replacement of traditional recessed CFL downlights. The deep-recessed design ensures a low-glare. The Recess Pro family is engineered to reduce your lighting energy consumption by up to 50%.
This range of well-finished, lightweight and IP44 protection rated downlights are suitable for placement in Zones 1 and 2 of bathrooms/washrooms as well as common indoor spaces. The included easy to use loop-in/loop-out driver with push-fit connector provides for a quick and safe installation.
- Product Feature 1:
- 125mm cut out
- Product Feature 2:
- 1600lm
- Product Feature 3:
- 65 Degrees Beam
- Product Feature 4:
- 114lm/W
- Product Feature 5:
- 4000K
- Product Feature 6:
- IP44
- Product Feature 7:
- Non-Dimmable
https://www.youtube.com/watch?v=fi17lw3NKyE
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 741574 |
|---|---|
| Barcode | 5055788250210 |
| Category | Downlights |
| Range Name | Recess Pro |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 70 |
|---|---|
| Product Weight (g) | 450 |
| Diameter (mm) | 140 |
| Optic | PMMA diffuser |
| Material | Aluminium |
| Overall diameter (mm) | 140 |
| Cut Out Diameter (mm) | 125 |
| Luminaire Fixing | Wall/Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL125H010_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1600 |
| Luminous efficacy (lm/W) | 114 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 65 |
| Colour Rendering Index (CRI) | 80 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 60000 |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 14 |
|---|---|
| Power Consumption (W) | 14 |
| Voltage Range (v) | 220-240VAC 50/60Hz |
| Wattage equivalent (W) | CFL 26W |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
| LVD Certified | Yes |
Environmental
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 610 |
|---|---|
| Package Length (mm) | 165 |
| Package Width (mm) | 165 |
| Package Depth (mm) | 105 |
