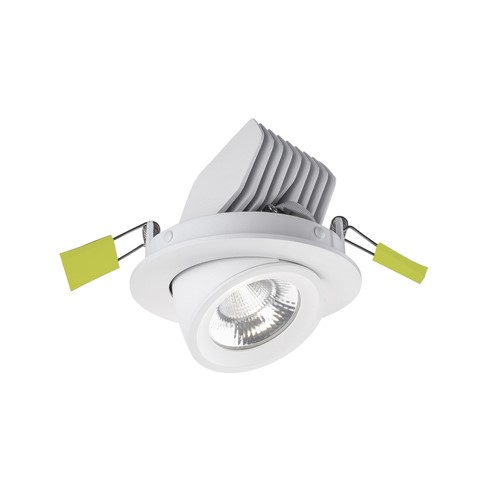

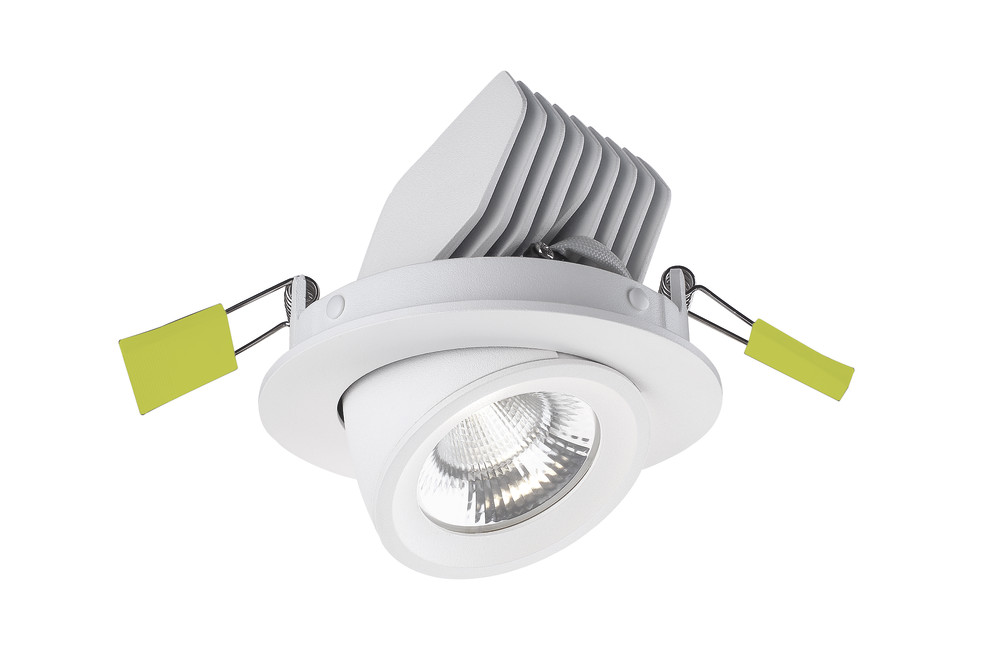

ACCENTPLUS SCOOP ADJUSTABLE DOWNLIGHT 13.5W 1620LM 120LM/W 3000K CRI90 92MM CUTOUT 36 BEAM WHITE 220-240V - NON-DIMM
Part Number:
ILDL92SC009
Integral Scoop downlights are a commercial solution for washing walls or displays with high quality CRI 90 real colour lighting. They feature fully rotatable bezels and a 38° downward tilt which brings the fitting well below the ceiling line allowing precise beam control, lighting areas that would not be possible with conventional downlights.
The range includes versions with no driver, which can be paired to our standard DALI, push dim, 0-10V combination dimmable drivers (see suggested products for driver options).
- Product Feature 1:
- Adjustable Downlight With Non-Dim Driver
- Product Feature 2:
- 38° tilt & 355° rotation adjustable
- Product Feature 3:
- High efficiency, energy saving
- Product Feature 4:
- CRI90 real colour
- Availability:
-
100+
More stock due in on 02/05/2025
Details
| Quick Order Code | '019450 |
|---|---|
| Barcode | 5055788276531 |
| Category | Downlights |
| Range Name | AccentPlus Scoop |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Features | Adjustable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|

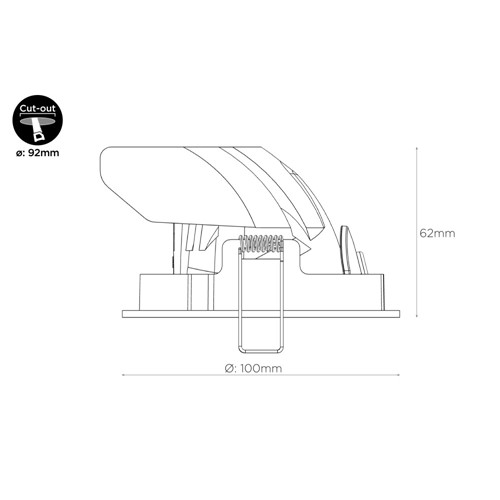

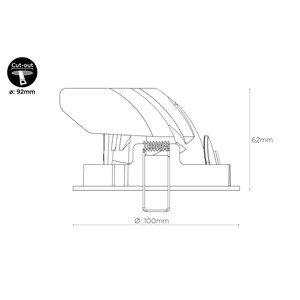

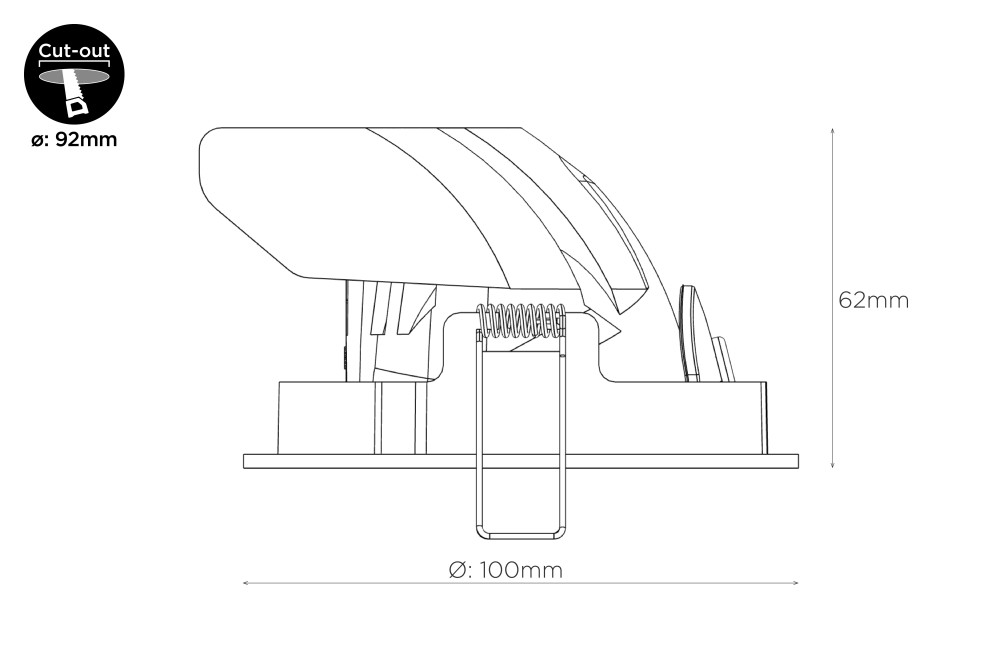

| Product Depth (mm) | 62 |
| Product Weight (g) | 390 |
| Overall diameter (mm) | 100 |
| Construction | Aluminium |
| Cut Out Diameter (mm) | 92 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Luminous Flux in Lumens (lm) | 1620 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Colour Temperature | 3000K - Warm White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
Electrical Data
| Power Consumption (W) | 13.5 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 350 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 420 |
|---|---|
| Package Length (mm) | 135 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 95 |
| Qty per euro pallet | 864 |
