ACCENTPLUS SCOOP ADJUSTABLE DOWNLIGHT 13.5W 1630LM 120LM/W 4000K CRI90 92MM CUTOUT 36 BEAM WHITE 36VDC 350MA - NO DRIVER
Part Number:
ILDL92SC002

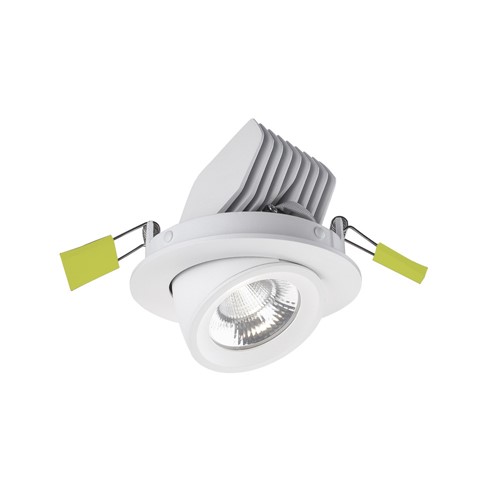

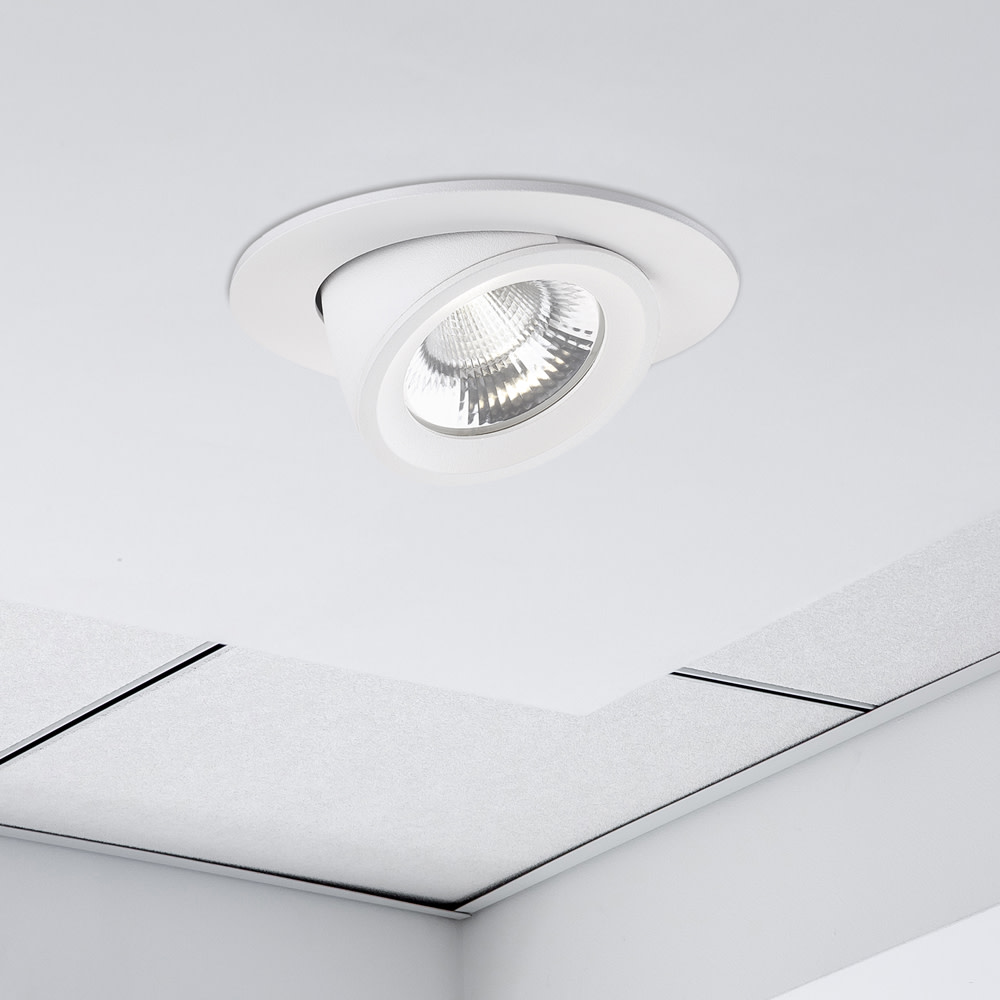

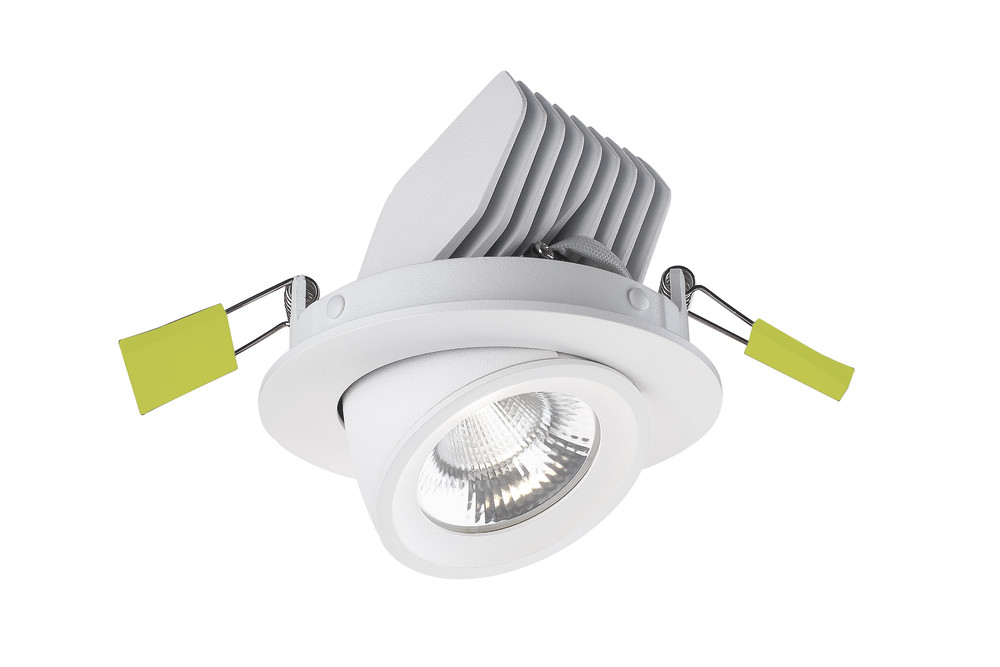

Integral Scoop downlights are a commercial solution for washing walls or displays with high quality CRI 90 real colour lighting. They feature fully rotatable bezels and a 38° downward tilt which brings the fitting well below the ceiling line allowing precise beam control, lighting areas that would not be possible with conventional downlights.
The range includes versions with no driver, which can be paired to our standard DALI, push dim, 0-10V combination dimmable drivers (see suggested products for driver options).
- Product Feature 1:
- Adjustable Downlight Without Driver (choose from suggested products below)
- Product Feature 2:
- 38° tilt & 355° rotation adjustable
- Product Feature 3:
- High efficiency, energy saving
- Product Feature 4:
- CRI90 real colour
- Availability:
-
52
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 925577 |
|---|---|
| Barcode | 5055788275374 |
| Category | Downlights |
| Range Name | AccentPlus Scoop |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Features | Adjustable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|

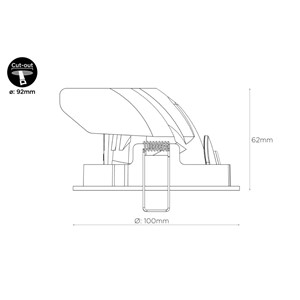

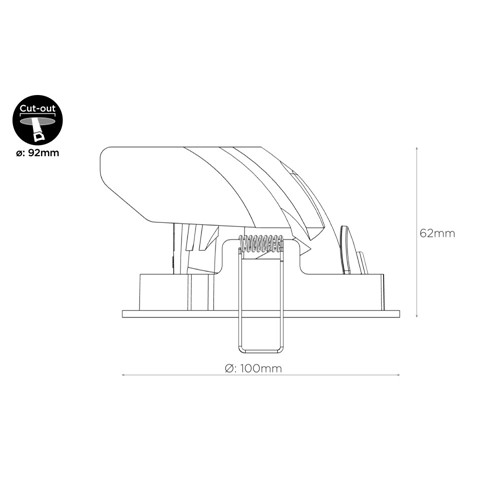

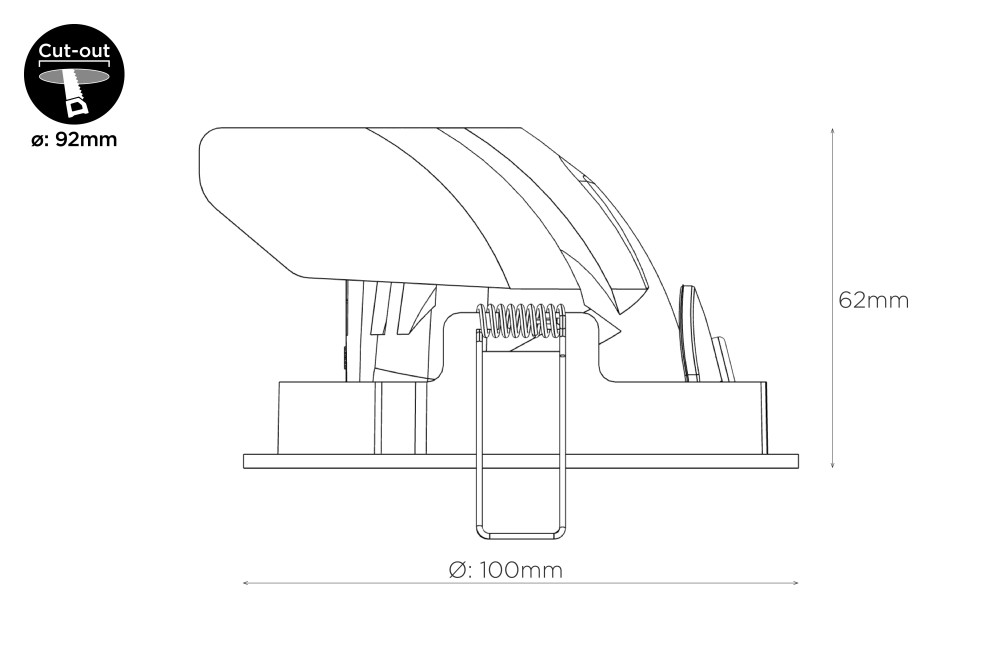

| Product Depth (mm) | 62 |
| Product Weight (g) | 280 |
| Overall diameter (mm) | 100 |
| Construction | Aluminium |
| Cut Out Diameter (mm) | 92 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Luminous Flux in Lumens (lm) | 1630 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Colour Temperature | 4000K - Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 90 |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption (W) | 13.5 |
|---|---|
| Power Factor | 0.9 |
| Amperage (mA) | 350 |
| Dimming | Dimmable with dimmable drivers and compatible dimmers |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 310 |
|---|---|
| Package Length (mm) | 125 |
| Package Width (mm) | 120 |
| Package Depth (mm) | 90 |
| Qty per euro pallet | 864 |
