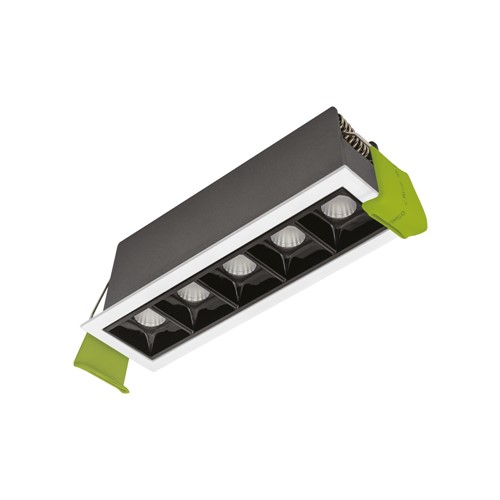

TRACELUX 10W 5 LIGHT 4000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT LED 140MM BY 37MM CUTOUT CRI90 IP20 830LM 30 DEG BEAM 83LM/W WHITE BEZEL WITHOUT OUTER COVER WITHOUT DRIVER

Part Number:

ILDLTR004

Integral LED’s Tracelux family is a set of linear recessed downlights in various lengths that brings designer lighting at an affordable price, perfect for architectural spaces such as hotel foyers, boardrooms, high-end shops, museums, and galleries.

The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.

Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests
Product Feature 1:
Premium designer look
Product Feature 2:
Attractive low glare design
Product Feature 3:
High quality aluminium construction
Product Feature 4:
CRI90 real colour
Product Feature 5:
Interchangeable outer covers
Product Feature 6:
Light does not include driver or outer cover
Availability:
50+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 676711
Barcode 5055788274735
Category Downlights
Range Name Tracelux
Product Body Finish Matt white
Market Segment Accent lighting
Fixed/Tiltable Fixed
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Product Length (mm) 147
Product Depth (mm) 49
Product Width (mm) 45
Product Weight (g) 212
Optic Clear Refractor
Construction Die cast Aluminium heat-sink and body
Cut Out Length (mm) 140
Cut Out Width (mm) 37
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Spot Type SMD
Luminous Flux in Lumens (lm) 830
Luminous efficacy (lm/W) 83
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 30
Colour Rendering Index (CRI) 90
Integrated Light Source Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Lumens in Emergency mode (lm) 76
Power Consumption (W) 10
Amperage (mA) 600
Input Voltage (V) 15
Driver Included No
Electric Current DC
EN Yes
LVD Certified Yes
EN Yes
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 300
Package Length (mm) 172
Package Width (mm) 66
Package Depth (mm) 72
